PLC Control Industrial Gas Fired Steam Boilers , Natural Gas Boiler For Palm Oil Mill
PLC Control Industrial Gas Fired Steam Boilers , Natural Gas Boiler For Palm Oil Mill
PLC Control Industrial Gas Fired Steam Boilers , Natural Gas Boiler For Palm Oil Mill
PLC Control Industrial Gas Fired Steam Boilers , Natural Gas Boiler For Palm Oil Mill
Specifications
Brand Name :
Yongxing
Model Number :
WNS
Certification :
ISO9001,CE,ISO
Place of Origin :
Henan China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1-1000 set
Delivery Time :
25 works day
Packaging Details :
Nude Package,Package with Steel Box,Wooden Box
Style :
Horizontal,Vertical
Fuel :
Oil-fired,Gas-fired,natural gas,lpg,lng
Condition :
New
Output :
Steam
Type :
Natural Circulation
Structure :
Fire Tube,Horizontal,Packaged
Thermal efficiency :
92%
Color :
Customer's Requirement
Design fuel :
Light Oil,etc,Heavy Oil,Oil/Gas,Gas
Pressure :
Low Pressure(1.25MPa)
After-sales service provided :
Engineers available to service machinery overseas
Description

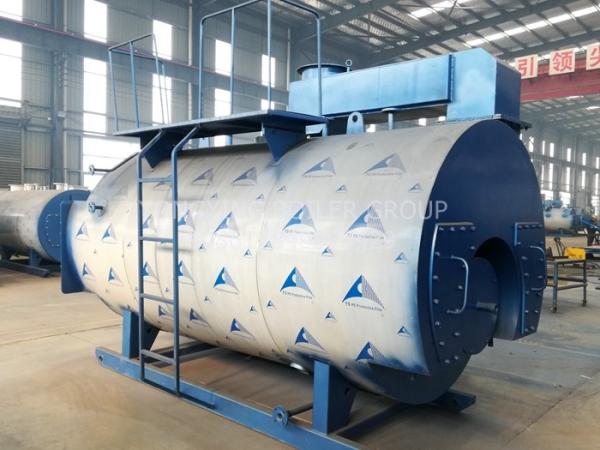

PLC control 10t industrial gas fired steam boilers/natural gas boiler for palm oil mill

WNS series industrial gas fired steam boilers are horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity. According to different fuels, natural gas boiler can be divided into natural gas boilers, city gas boilers, coke oven gas boilers, liquefied petroleum gas boilers, and biogas boilers. Application industry: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building materials, brewing, rubber, hospital and so on.

1. Fully burned
The natural gas boiler combustion chamber is composed of a large-diameter corrugated furnace, which has a large combustion space, complete combustion of the fuel, effective absorption of thermal expansion, and large radiation heating surface.
2. High steam quality
The shell has a large diameter, a large water capacity, a strong adaptability to load changes, and a stable steam generation.
3. Safe precipitation time is sufficient
The combustion chamber of the boiler adopts a low-position arrangement, the water level is determined to meet the design requirements, and there is sufficient safe precipitation space to ensure the safe operation of the boiler.
4. Multi-function safety device
The rear panel of the boiler is provided with a safety device that communicates with the furnace to prevent the fuel from deflagrating in the furnace.
5. Easy maintenance
The top of the boiler is provided with observation holes, and the front and rear ends of the boiler are provided with unique observation devices to facilitate the maintenance and cleaning of the bottom of the boiler.
6. Smoke box is well sealed
The smoke box adopts a double-opening smoke box door, which is convenient to open, has good compression property of the sealing material, and completely leaks the smoke of the barrier, and can be reused.
7. Multiple security protection
The industrial gas fired steam boilers pressure and water level setting are multi-control protection. At the same time, high temperature flue gas protection is designed to ensure the safety of boiler operation.
8. Automatic control level leading
The industrial gas fired steam boilers controller uses Siemens or Delixi electrical components for reliable performance.

PLC Control Industrial Gas Fired Steam Boilers , Natural Gas Boiler For Palm Oil Mill

Natural gas boilerData Sheet

Model

Rated evaporation capacity(t/h)

Working Pressure(Mpa)

Steam Temperature(℃)

Feed Temperature(℃)

Transportation Size(m)(L×W×H)

WNS1-0.7-Y(Q)

1

0.7

170

20

3.3×1.8×2.1

WNS1-1.0-Y(Q)

1

1

184

20

3.3×1.8×2.1

WNS2-1.0-Y(Q)

2

1

184

20

4.4×2.1×2.5

WNS2-1.25-Y(Q)

2

1.25

194

20

4.4×2.1×2.5

WNS4-1.25-Y(Q)

4

1.25

194

20

4.7×2.5×2.9

WNS4-1.6-Y(Q)

4

1.6

204

20

4.7×2.5×2.9

WNS6-1.25-Y(Q)

6

1.25

194

20

5.9×2.6×3.0

WNS6-1.6-Y(Q)

6

1.6

204

20

5.9×2.6×3.0

WNS8-1.25-Y(Q)

8

1.25

194

105

5.9×2.8×3.1

WNS8-1.6-Y(Q)

8

1.6

204

105

5.9×2.8×3.1

WNS10-1.25-Y(Q)

10

1.25

194

105

7.7×2.8×3.1

WNS10-1.6-Y(Q)

10

1.6

204

105

7.7×2.8×3.1

WNS15-1.25-Y(Q)

15

1.25

194

105

7.0×3.1×3.6

WNS15-1.6-Y(Q)

15

1.6

204

105

7.0×3.1×3.6

WNS20-1.25-Y(Q)

20

1.25

194

105

8.3×3.4×4.0

WNS20-1.6-Y(Q)

20

1.6

204

105

8.3×3.4×4.0

Packing List of Gas Steam Boiler

Packing List
1 Boiler main part 1 set
2 Imported gas/oil burner 1 set
3 Electric control box 1 set
4

Valve & Gauge used

on boiler main part

 1 set
5 Feeding water Pump 2 set
6 Smoke chimney 1 set
7 Water treatment equipment 1 set
8 Steam distributor 1 set

Natural Gas Steam Boiler Reference

Boiler Reference of Gas/Oil Fired Steam Boiler
NO. Country Model Application
1 Indonesia WNS6-1.25-Y (Q) Textile industry
2 Pakistan WNS1-1.0-Y (Q) Chemical plant
3 Thailand WNS1-1.0-Y (Q) Laundry industry
4 Indonesia WNS2-1.0-Y (Q) Building industry
5 Malaysia WNS8-1.25-Y (Q) Chemical industry
