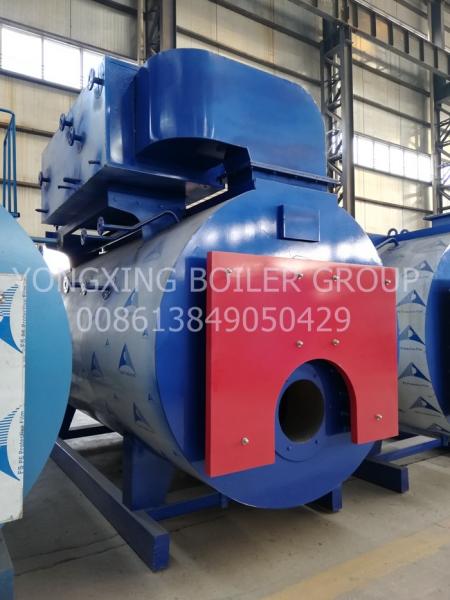

Fully Automatic Natural Gas Fired Steam Boiler For Crude Palm Factory
Fully Automatic Natural Gas Fired Steam Boiler For Crude Palm Factory
Fully Automatic Natural Gas Fired Steam Boiler For Crude Palm Factory
Fully Automatic Natural Gas Fired Steam Boiler For Crude Palm Factory
Specifications
Brand Name :
Yongxing
Model Number :
WNS
Certification :
ISO9001,CE,ISO
Place of Origin :
Henan China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1-1000 set
Delivery Time :
25 works day
Packaging Details :
Nude Package,Package with Steel Box,Wooden Box
Style :
Horizontal,Vertical
Fuel :
Oil-fired,Gas-fired,natural gas,lpg,lng
Condition :
New
Output :
Steam
Type :
Natural Circulation
Structure :
Fire Tube,Horizontal,Packaged
Thermal efficiency :
92%
Color :
Customer's Requirement
Design fuel :
Light Oil,etc,Heavy Oil,Oil/Gas,Gas
Description

Fully automatic control natural gas steam boiler 0.7/1.0/1.25Mpa for crude palm factory

WNS series automatic fuel natural gas steam boiler adopts the international classic structure form. The combustion chamber adopts corrugated furnace and low position arrangement, which effectively increases the heat exchange area and enhances the turbulent heat transfer of high temperature flue gas. At the same time, it effectively alleviates the problem of shortening the life of equipment caused by thermal expansion and contraction.


Natural gas steam boiler features
1. Strict processing technology
The welding of the pipe and the tube sheet is firstly pre-expanded to eliminate the gap between the tube and the tube sheet.

2. Longer equipment life

The welding process of the argon arc automatic welding is employed. Effectively eliminate stress and extend natural gas steam boiler life.

3. Digital manufacturing, beautiful appearance
The front and rear smoke box panels of WNS series fuel/gas boilers are cut by CNC plasma cutting machine, which is neat and beautiful.

4. Automatic operation

The computer program controls the combustion automatic adjustment.

5. Protection action

The high efficiency gas steam boiler has the functions of water level self-control ignition and flame out, high and low water level steam over-pressure automatic protection, etc.

6. Better matched burner

The high efficiency gas steam boiler is equipped with international advanced imported burners, which has high combustion efficiency (more than 94%).
7. The smoke pipe of the gas steam boiler adopts a bilaterally symmetric arrangement to ensure a good state of heat exchange area and heat transfer efficiency.
8. The gas steam boiler adopts full wet back and three return structure, which effectively improves the service life of the boiler and reduces maintenance time and cost.

Fully Automatic Natural Gas Fired Steam Boiler For Crude Palm Factory
Gas Steam Boiler Data Sheet

Model

Rated evaporation capacity(t/h)

Working Pressure(Mpa)

Steam Temperature(℃)

Feed Temperature(℃)

Transportation Size(m)(L×W×H)

WNS1-0.7-Y(Q)

1

0.7

170

20

3.3×1.8×2.1

WNS1-1.0-Y(Q)

1

1

184

20

3.3×1.8×2.1

WNS2-1.0-Y(Q)

2

1

184

20

4.4×2.1×2.5

WNS2-1.25-Y(Q)

2

1.25

194

20

4.4×2.1×2.5

WNS4-1.25-Y(Q)

4

1.25

194

20

4.7×2.5×2.9

WNS4-1.6-Y(Q)

4

1.6

204

20

4.7×2.5×2.9

WNS6-1.25-Y(Q)

6

1.25

194

20

5.9×2.6×3.0

WNS6-1.6-Y(Q)

6

1.6

204

20

5.9×2.6×3.0

WNS8-1.25-Y(Q)

8

1.25

194

105

5.9×2.8×3.1

WNS8-1.6-Y(Q)

8

1.6

204

105

5.9×2.8×3.1

WNS10-1.25-Y(Q)

10

1.25

194

105

7.7×2.8×3.1

WNS10-1.6-Y(Q)

10

1.6

204

105

7.7×2.8×3.1

WNS15-1.25-Y(Q)

15

1.25

194

105

7.0×3.1×3.6

WNS15-1.6-Y(Q)

15

1.6

204

105

7.0×3.1×3.6

WNS20-1.25-Y(Q)

20

1.25

194

105

8.3×3.4×4.0

WNS20-1.6-Y(Q)

20

1.6

204

105

8.3×3.4×4.0

Packing List of Gas Steam Boiler

Packing List
1 Boiler main part 1 set
2 Imported gas/oil burner 1 set
3 Electric control box 1 set
4

Valve & Gauge used

on boiler main part

 1 set
5 Feeding water Pump 2 set
6 Smoke chimney 1 set
7 Water treatment equipment 1 set
8 Steam distributor 1 set

Fully Automatic Natural Gas Fired Steam Boiler For Crude Palm Factory

Natural Gas Steam Boiler Reference

Boiler Reference of Gas/Oil Fired Steam Boiler
NO. Country Model Application
1 Indonesia WNS6-1.25-Y (Q) Textile industry
2 Pakistan WNS1-1.0-Y (Q) Chemical plant
3 Thailand WNS1-1.0-Y (Q) Laundry industry
4 Indonesia WNS2-1.0-Y (Q) Building industry
5 Malaysia WNS8-1.25-Y (Q) Chemical industry
