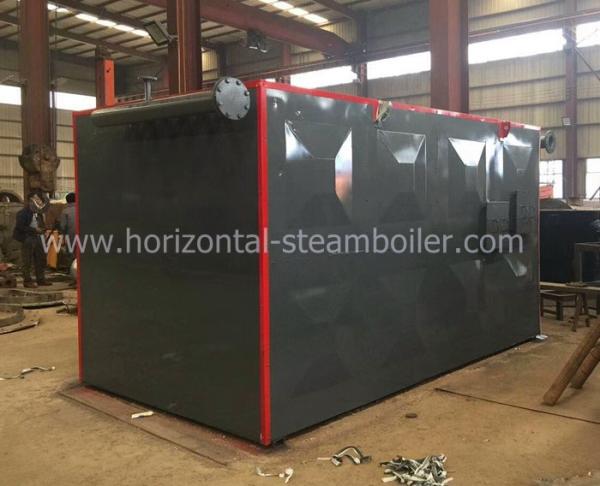

Professional supplier coal fired thermal fluid boiler/ thermo oil boiler with high heat efficient for building industry

The YLW series thermal fluid boiler is a square coil horizontal grate grate assembly boiler, the chain grate and the boiler body are two parts. The thermal fluid boiler uses the chain grate to realize automatic coal feeding, and is equipped with a drum and an induced draft fan for automatic ventilation, and is equipped with a slag discharging machine to realize mechanical slagging. During operation, the fuel falls from the coal hopper to the grate for combustion. The high-temperature flue gas enters the furnace after being reflected by the rear arch, and after radiant heat transfer through the radiant heating surface, it enters the convective heating surface for convective heat transfer, and then enters the air preheater. Finally, it enters the dust collector. After dust removal, the flue gas is drawn by the induced draft fan and discharged to the atmosphere through the chimney.

Features:
Unique design and long life
1. Optimized radiation heating surface and convection heating surface, the medium flow is more reasonable, and the service life of the boiler is not reduced due to overheating of the carrier.
2. The convection heating surface adopts effective fixing and supporting structure, and the service life of the boiler is longer.
3. Set effective flue gas isolation on the convection heating surface, while pouring the partition wall, the equipment has a longer service life.

Save fuel
1. YLW series thermal fluid boiler is made of high quality refractory brick, with high quality perlite in the middle, the furnace temperature is controlled below 50 °C, the heat loss is small, and the fuel is more economical.
2. The furnace adopts double-dense coiled tube, and the heating surface is well arranged, the fuel is fully burned and the heat efficiency is higher.

Advanced manufacturing process
1. YLW series coal-fired horizontal heat transfer oil boiler steel pipe cutting, all use CNC three-dimensional laser cutting machine.
2. When the square coil is processed, the CNC three-dimensional bending machine is used to make flexible assembly and eliminate the forced assembly.
3. When the serpentine tube is processed, the automatic production line of the serpentine tube is used, and the forming is performed once to ensure the processing quality of the equipment.

Easy operation
1. The thermal fluid boiler adopts the company's specially designed furnace arch, which is suitable for different coal types and biomass.
2. The thermal fluid boiler adds a special hopper to effectively prevent the coking phenomenon of biomass fuel.
3. Set effective dust-cleaning structure for easy maintenance, operation and cleaning.

High degree of automation
1. When the thermal fluid boiler is running, it can be monitored by the automatic control system, and the equipment is safer to operate;
2. Equipped with a variety of operating alarm systems such as high temperature and high pressure to ensure the operation of the equipment.

Thermic fluid boiler technical data sheet

Thermic fluid boiler FAQ:

Dear friend,

Thanks for your time for scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: Coal/biomass fired thermal boiler
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.
