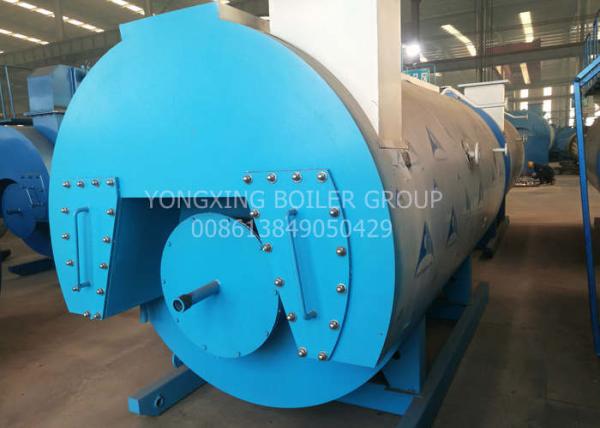

4T Heating Output Hotel Fire Tube Hot Water Boiler / High Efficiency Hot Water Boiler
4T Heating Output Hotel Fire Tube Hot Water Boiler / High Efficiency Hot Water Boiler
Specifications
Brand Name :
YONGXING
Model Number :
CWNS2.1-95/70-YQ
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
PRESSURE :
0 or 10bar
Burner :
Italy Riello Or Italy Baltur, and brand Olin
Boiler capacity :
2.1MW
Boiler outer package :
Stainless Steel
Usage :
for residental
Features :
Corrugated Furnace
Thermal Efficiency :
92.4%--94.5%
control mode :
Automation
The return trip :
Three return
Description

4T Heating Output Hotel Fire Tube Hot Water Boiler High-Efficiency Hot Water Boiler

4T Heating Output Oil Fired Hot Water Boiler Introduction

4T Heating Output Oil Fired Hot Water Boiler uses oil as fuel to heat the furnace of the boiler through the burner. The boiler realizes the automatic control mode, with fast heating speed, low noise, dust-free tail gas, and small pollution. It can realize the supply of heating, living and hot bath water.

1. Type: WNS

2. Structure: three-way wet back structure

3. Design: threaded pipe and corrugated furnace

4. Control: advanced intelligent automatic control

5. Heating: three-way structure, a large heat transfer area

6. Capacity: 500kg/h-20ton/h

4T Heating Output Oil Fired Hot Water Boiler Advantages

1, the use of advanced three return full wet back combustion structure, the furnace adopts the design of corrugated furnace, increase the furnace heating surface, effective energy saving, improve the thermal efficiency.

2, the use of threaded fire pipe design, with good thermal capability, scientific and reasonable air flow design, uniform temperature field in the furnace, can effectively absorb the flame heat.

3, the use of advanced automatic control only, the user only needs to carry out the basic parameter setting, the boiler can be set in accordance with the procedures for automatic operation, automatic operation, simple and convenient operation.

Oil Fired Hot Water Boiler Application
Oil-fired hot water boilers are mainly used in hotels, baths, small and medium-sized enterprises, schools, textile, and other sideline applications.

4T Heating Output Oil Fired Hot Water Boiler technical datasheet

Main technical parameters of CWNS oil (gas) atmospheric pressure and pressure hot water boiler
Project model CWNS, WNS series hot water boiler
Rated calorific value (MW) 0.35 0.7 1.05 1.4 2.1 2.8 3.5 4.2 5.6 7 8.4 10.5 12.6 14
Working pressure (MPa) Normal pressure/pressure
Outlet water temperature (°C) 85/115

Backwater temperature (°C)

 60/70
Boiler thermal efficiency (%) 91—95
Feed water temperature (°C) 20
Fuel consumption Diesel (Kg/h) 32 65.4 98 131 196.2 261.6 327 392.4 523.2 654 784.8 981 1177 1310
Heavy oil (Kg/h) 34 69.5 105 139 208.5 278 347.5 417 556 695 864 1042.5 1251 1390
Natural gas (m3/h) 39.5 79.3 119 159 237.9 317.2 396.5 475.8 644 793 951.6 1189.5 1427.4 1586
Liquefied gas (m3/h) 14.2 29 43.5 58 87 116 145 174 232 290 348 435 522 580
City gas (m3/h) 84 168.5 253 337 505.5 674 842.5 1011 1348 1685 2022 2527.5 3033 3370
Boiler transportation Length (mm) 2800 3500 4100 4500 4700 4550 5700 6300 7000 7200 7840 8100 8230 8250
Width (mm) 1600 1600 1900 2000 2110 2210 2500 2600 2700 2800 2860 3100 3100 3400
High (mm) 2000 2100 2310 2360 2470 2580 2800 2900 3200 3300 3300 3400 3400 3550
Total power consumption (KW) 2.3 6.7 11 13.5 19 21 23.5 26 37 37 42 45 52 52
Chimney diameter (mm) 250 350 430 450 450 550 650 650 650 800 800 900 1200 1200
Shipping weight (T) 3.2 4.7 4.8 5.4 8 9.78 13.4 15.4 17.4 17.4 23.8 30 31.6 34.5
Heating area (m2) 3000

6000

900

0

1200

0

1800

0

2400

0

3000

0

3600

0

4800

0

6000

0

7200

0

900

00

1080

00

1200

00

Water supply capacity (t)

 7 15 22 30 45 60 75 90 120 150 180 225 270 300

Oil water boiler Vocuum hot water boiler

Project/model ZKW0.7-85/60-Y(Q) ZKW1.05-85/60-Y(Q) ZKW1.4-85/60-Y(Q) ZKW1.75-85/60-Y(Q) ZKW2.1-85/60-Y(Q) ZKW2.8-85/60-Y(Q) ZKW3.5-85/60-Y(Q)
Heat medium water capacity (L) 410 520 568 700 830 980 1250
Rated calorific value (Mw/h) 0.7 1.05 1.4 1.75 2.1 2.8 3.5
Rated calorific value 60 90 120 150 180 240 300
Fuel consumption Light diesel oil (Kg/h) 64 96 128 160 192 256 320
Heavy oil (Kg/h) 67.3 100 134 168 202 269 363
Natural gas (m3/h) 165 116 155 193 232 310 387
City gas (m3/h) 77 247 330 412 494 659 824
Liquefied gas (m3/h) 29 44 58 73 88 117 146
Heat Exchanger Material/structure Stainless steel
Working pressure (MPa) 1
Heating Maximum calorific value 36 54 72 90 108 144 180
Warm water circulation 36 54 72 90 108 144 180
Pressure loss 2.2 3 2 2.6 2.5 3.5 3.3
Heating outlet (DN) 65 80 80 100 125 125 133
Heating area (m2) 6000 9000 12000 15000 18000 24000 30000
Special for hot water Maximum calorific value twenty four 36 48 60 72 96 120
Water supply capacity (m3/h) 6 9 12 15 18 twenty four 30
Hot water temperature 50
Pressure loss 2 0.6 1.5 1.8 1.5 1.8 2
Water outlet diameter (DN) 40 65 65 80 100 100 125
Voltage Voltage (V) 220/380
Total power consumption 2.2 (2.6) 3.7 (4.1) 5.0 (6.5) 7.5(9) 11 (2.5) 15 (16.5) 18.5(20)
Blower power consumption 2.2 3.7 5 7.5 11 15 18.5
Oil pump power consumption 0.4 0.4 1.5 1.5 1.5 1.5 1.5
size Chimney diameter (mm) 350 350 400 450 500 550 600
Long (m) 2700 3200 3400 4050 4700 4900 5500
Width (m) 1365 1365 1600 1600 1600 1800 2020
High (m) 2345 2400 2500 2580 2580 2630 2700

4T Heating Output Hotel Fire Tube Hot Water Boiler / High Efficiency Hot Water Boiler
