Specifications
Brand Name :
YONGXING
Model Number :
DZL/SZL
Certification :
ISO9001,ISO14001,SGS,BV
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
USD1000/SET
Delivery Time :
10-15days
Packaging Details :
Nude packing,Package with Steel Box,or Wooden Box
Fuel Design :
Coal, Anthracite, Briquette, Charcoal, Coke, Brown Coal
Running Style :
Automatic Operation
Warranty :
1 Years
Material :
Q345R
Application :
Milk Pasteurization, Beer Brewery Wine Factory, Pharmaceutical Medical Industry,noodles
Boiler Capacity :
15000 Kghr
Thermal Efficiency :
80%
Fuel feeding :
Chain grate stoker automatcally feeding
Fuel :
Coconut shell
Boiler capacity :
SZL 15 TON
Description

SZL15 ton 1.25 Mpa AII coal fired steam boiler with small scale chain grate for food factory

SZL15 ton small scale chain grate coal fired steam boiler is excellent on the food industry.

1. The food industry is a large industry associated with agriculture, industry, and circulation.

2. Food factories are one of the main components of the food industry, in addition to wineries, beverage factories, dairy products, agricultural products processing plants, meat processing plants, green food processing plants and so on.

3.small scale chain grate coal fired steam boiler is indispensable power equipment in the production process of food factories.

How does the SZL15 ton small scale chain grate coal fired steam boiler work on food factory?

1. The hot water and steam generated by the boiler are widely used in the process of distillation, extraction, disinfection, drying, and maturation in food processing, and high-temperature steam is used to cook, dry and disinfect food.

2. In food processing, steam is directly or indirectly in contact with food, so the quality of steam required by the food industry is very high. Food safety is a social orientation. In addition to testing at various stages, a series of equipment such as boilers also require strict process control.

3. In addition to being used for food production and steam supply, some food factories also use self-supplied power station boilers for internal power generation or use hot water boilers for central heating of their plants, office buildings, and dormitory buildings.

4. Some processes in some food plants require special processing of food by hot water boilers.

SZL15 ton small scale chain grate coal fired steam boiler similar case

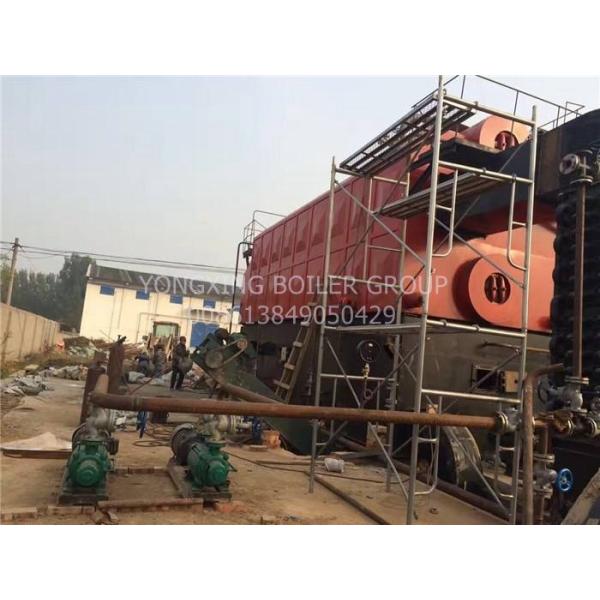

1. Tanzania LOCA frozen food enterprises are quite influential in my local area. Yongxing is a 15 ton SZL chain grate steam boiler customized for LOCA Food Factory. It is mainly used in food factories to produce steam after it is put into production.

2. The project uses a double-cylinder vertical chain grate equipment with chain grate technology, and the designed fuel is Class II bituminous coal.

3. It has the advantages of compact structure, a single-layer layout of the boiler room, convenient on-site installation, short cycle, low cost, and easy operation.

4. In addition to industrial and domestic steam, SZL series boilers are suitable for industrial and civil heating.

TWO PART ASSEMBLED BOILER
boiler model Unit SZL6-1.25/1.6-AII SZL8-1.25/1.6-AII SZL10-1.25/1.6-AII SZL12-1.25/1.6-AII SZL15-1.25/1.6-AII SZL20-1.25/1.6-AII SZL25-1.25/1.6-AII
capacity ton/h 6 8 10 12 15 20 25
rated pressure Mpa 12.5/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6 1.25/1.6
rated steam temperature 193/204 193/204 193/204 193/204 193/204 193/204 193/204
feed water temperature 105 105 105 105 105 105 105
radiation area m2 18.19 22.14 25.8 25.8 34.117 53.78 99.21
convection area m2 121.9 158.86 200.38 250.17 331.616 411.8 457.78
economizer area m2 53.13 104.64 130.8 174.4/261.1 117.72/117.2 212.4 476.16
valid grate area m2 7.55 9.34 10.98 12.78 16.24 20.84 24.76
applicable fuel COAL COAL COAL COAL COAL COAL COAL
exhaust gas temperature 165.78/169.85 161/165 160/162 158/150 156.7/159.4 153/159 152/156
design efficiency % 80.11/79.44 79.95/79.98 80.55/80.28 80.68/80.72 80.48/80.56 81.09/80.77 81.38/81.26
fuel consumption kg/h 863.28/874.78 1153.42/1161.38 1430.96/1442.74 1714.5/1721.8 2167.89/2164.7 2868.63/2884.7 3551/3556
max part size for delivery mm 7100*2800*3500
7300*2540*2330
7300*3000*3500
7400*2700*2330
7600*3200*3500
7700*2900*2330
7600*3200*3500
8500*2900*2330
7350*3373*3505
8904*3370*1100
7814.7*3573*3511
9439*3768*1100
8478*2600*2740
Bulk packing
