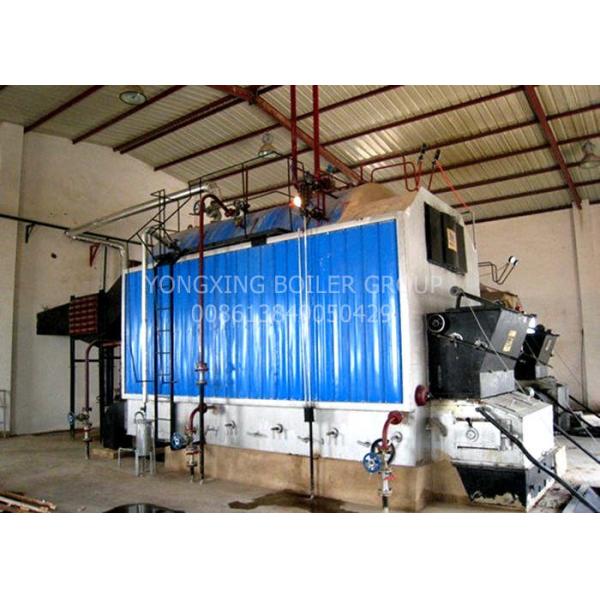

8 Ton Coal Fired Steam Boiler With Energy Saving Light Chain Grate ISO9001 Certification
8 Ton Coal Fired Steam Boiler With Energy Saving Light Chain Grate ISO9001 Certification
Specifications
Brand Name :
YONGXING
Model Number :
DZL/SZL
Certification :
ISO9001,ISO14001,SGS,BV
Place of Origin :
HENAN
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
USD1000/SET
Delivery Time :
10-15days
Packaging Details :
Nude packing,Package with Steel Box,or Wooden Box
Fuel Design :
Coal, Anthracite, Briquette, Charcoal, Coke, Brown Coal
Running Style :
Automatic Operation
Warranty :
2 Years
Material :
Q345R
Application 1 :
Papermaking Factory, Printing Dyeing Mill, Carton Factory
Application 2 :
Textile Mill, Garment Industry, Rice Mill, Diaries, Corrugated Machine
Application 3 :
Milk Pasteurization, Beer Brewery Wine Factory, Pharmaceutical Medical Industry,noodles
Boiler Capacity :
500 1000 2000 3000 4000 5000 6000 8000 10000 Kghr
Description

8 Ton Coal Fired Steam Boiler ISO9001 Certification with Energy Saving Light Chain Grate

SZL 8ton coal fired steam boiler has a double-drum offset hearth, big and high burning furnace, great apply for biomass fuel, environmental protection, and energy conservation, and is a key promoted product of biomass boiler projects.

Advantages of 8ton coal fired steam boiler design

1. Boiler special design, improve boiler thermal efficiency

2. Design the cyclone chamber structure in the furnace, high temperature flue gas through high - speed rotation, mixing combustion, dust separation, and thus achieve the effect of dust removal, energy saving, and environmental protection

3. Large furnace volume, strong adaptability for wood pellets, sawdust and all kinds of biomass

4. Large heating surface, by which boost pressure quickly, and has more sufficient output, low energy consumption

5. Three passes coal-fired steam boiler. The smoke goes through three phases in the boiler furnace, making the boiler have higher heat transfer efficiency and lower heat loss

6. Boiler simple work system. Easy installation, fast running, work safely and efficiently

7. Fast assembly from the factory, shorten installation time

Datasheet of 8ton coal fired steam boiler

Rated boiler output:8000kgs/hr,8 ton per hour

Rated steam pressure :1.25Mpa,12.5bar.

Feed water temperature:30℃

Boiler grate heating area:173℃

Thermal efficiency:82%

Chain grate type: Light chain grate, flake type chain grate

Biomass Pellet fired 6000Kg Steam Output Coal Fired Boiler Boiler application

1. Food industry

2. Petrochemical industry

3. Foam, furniture production

4. Filling block production

5. Washing ironing industry

6. Packaging machinery industry

7. Biochemical industry

8. Food machinery industry

Biomass Fuel Advantages:

1. Causeless environmental pollution, less of sulfur and other harmful substances, but the biomass contains less or no.

2. Reduce dependence on fossil fuels.

3. Easy to get. Such as branches, straw, corn cob, are renewable, the energy is long-term, may be sustained.

Biomass Pellet fired Coal Fired Boiler Export boiler reference

We have exported coal fired steam boiler to over 80 different countries all over the world. bellows are some boiler project cases for your reference.

export to

Cambodia

 SZL10-1.25-AII

Our Cambodia customer bought one set 10ton coal fired steam boiler, work for their Textile factory.
Export to Malaysia DZL2-1.25-AII

DZL coal fired steam boiler will be delivered to Malaysia, our customer has an animal food making factory, need this boiler work for the purposed process.

export to

Philipines

 DZL4-1.25-T

DZL 4ton biomass-fired export to Philipines for Oil Processing

export to

South Africa

 DZL2-1.25-T

DZL 4ton biomass-fired will be delivered to South Africa, they came to visit our factory before.

export to

Indonesia

SZL15-1.25-AII

Our customer has a large textile factory, plan to install the new boiler, Custome flies to our factory and sign the contract the day. And he signs a letter to be our agent in local.

Quckly installed boiler
boiler model Unit DZL1-0.7/1.0-AII DZL2-0.7/1.0-AII DZL4-0.7/1.25/1.6-AII DZL6-1.25/1.6-AII
capacity ton/h 1 2 4 6
rated pressure Mpa 0.7/1.0 0.7/1.0 0.7/1.25/1.6 1.25/1.6
rated steam temperature ℃ 170/184 170/184 184/193/204 193/204
feed water temperature ℃ 20 20 20 105
radiation area ㎡ 4.21 6.43 10.55 16.95
convection area ㎡ 20.68 39.23 90.45 134.87
economizer area ㎡ 9.66 16.56 16.56 53.13
valid grate area ㎡ 1.852 3.15 5.18 8.395
applicable fuel * COAL COAL COAL COAL
exhaust gas temperature ℃ 152/160 152/161 163/163.8/169.5 163/169
design efficiency % 77.73/77.24 78.53/78.18 79.37/79.30/78.96 79.83/79.19
fuel consumption kg/h 170.74/172.93 341.71/343.63 673.22/676.27/682.11 866.39/877.51
max part size for delivery mm 5488*2254*2782 5694*2704*3324 6743*2954*3508 8244*2951*3704
8 Ton Coal Fired Steam Boiler With Energy Saving Light Chain Grate ISO9001 Certification
