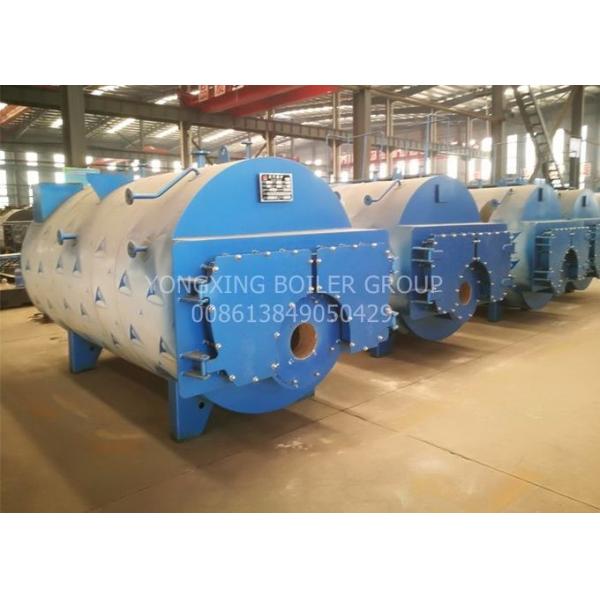

Chemical Industry Oil Fired Steam Boiler 6 Ton ASME Certification
Chemical Industry Oil Fired Steam Boiler 6 Ton ASME Certification
Chemical Industry Oil Fired Steam Boiler 6 Ton ASME Certification
Chemical Industry Oil Fired Steam Boiler 6 Ton ASME Certification
Specifications
Brand Name :
YONGXING
Model Number :
WNS1ton~20ton,1/1.25Mpa,Oil fired steam boiler
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
PRESSURE :
10bar-20bar
Burner :
Italy Riello Or Italy Baltur, and brand Olin
Boiler capacity :
0.5ton,1ton,2ton
Features :
Corrugated Furnace
Thermal Efficiency :
92.4%--94.5%
control mode :
Automation
Name :
Steam Heat Boiler
Structure :
Fire Tube
Material :
Q345R Steel Plate
Working Life :
More Than 20 Years
Protection :
Interlock Alarm
Description

ASME Certification Excellent Quality Steam Heat Boiler 6Ton Steam For Chemical Industry

Advantages of Steam Heat Boiler

1. The world's advanced brand burner is adopted for more sufficient combustion and longer service life.

2. Advanced large-capacity combustion chamber design, a large amount of water, can produce more steam.

3. The spiral​ bellows design is adopted to eliminate welding stress, increase the heating area and improve thermal efficiency.

4. Adopt full wet back structure, reduce the influence of high temperature on the Steam Heat Boiler, reduce failure rate and extend service life.

5. Equipped with a full set of safety interlocking protection equipment, such as overheating protection, water shortage protection, overpressure protection, etc.

Equipped with energy-saving devices

1.Steam waste heat boiler

2.Pressure hot water boiler

3. Atmospheric economizer

4. Can be designed and configured according to user requirements.

Steam Heat Boiler application fields

1. Wood processing: dry, digest and heat process the wood

2. Food industry: distillation, sterilization, disinfection, extraction, drying, and curing of food.

3. Brewery: dry malt, saccharification/gelatinization raw materials, wort heating, beer fermentation, and pasteurization bottles.

4. It can provide central heating for schools, hotels, and hospitals.

Steam Heat Boiler Technical parameter

Boiler model Rated capacity Rated pressure Rated Feed temp. Rated Steam temp. Thermal efficiency Weight Dimensions
t/h Mpa ℃ ℃ % ton mm
WNS1-1.0-Y(Q) 1 1 20 184 91 4.3 3561×1690×1910
WNS 2-1.25- Y(Q) 2 1.25 20 194 92 7.2 4111×1950×2199
WNS3-1.25-Y(Q) 3 1.25 20 194 92.1 8 4330×2248×2564
WNS4-1.25- Y(Q) 4 1.25 20 194 93 9.6 4732×2150×2448
WNS5-1.25- Y(Q) 5 1.25 20 194 93 12.5 5970×2360×2796
WNS6-1.25- Y(Q) 6 1.25 20 194 93.2 16.5 5500×2600×2990
WNS8-1.25- Y(Q) 8 1.25 105 194 93.5 24.8 6450×2800×3200
WNS10-1.25- Y(Q) 10 1.25 105 194 93.5 26.8 6800×2900×3394
WNS15-1.25- Y(Q) 15 1.25 105 194 93.5 38 7150×3200×3540
WNS20-1.25- Y(Q) 20 1.25 105 194 93.5 55 8200×3400×3826
