Specifications
Brand Name :
YONGXING
Model Number :
DZL/DZH
Certification :
CE/ISO/ASME
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1-1000 set
Delivery Time :
20 days
Packaging Details :
nude packing/wooden packing
Product name :
Wood pellet steam boiler, Biomass steam boiler
Fuel :
Coal-fired,biomass,straw,husk
Pressure :
High Pressure
Dimension(l*w*h) :
Customization
Output :
Steam
Color :
Customization
Weight :
depends on capacity
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Warranty :
1 Year
Description

Manufacturer Supplier high-quality wood pellet steam boiler and biomass steam boiler for wholesale

The DZL series wood pellet steam boiler is a single-cylinder vertical-type water tube shell boiler, and the combustion equipment is a chain grate.

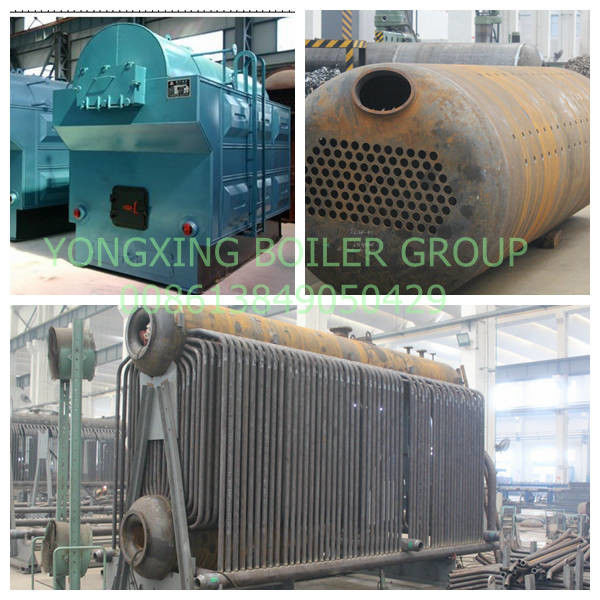

The structure of this type of coal steam boiler is: the water-cooled wall on the left and right sides of the furnace is the radiant heating surface, the two wings of the furnace are convective heating surfaces, the convection heating surface of the threaded tobacco pipe is arranged in the drum, and the front and rear arches are made of heat-resistant concrete. In the new process, the outside of the boiler mainframe is a three-dimensional shield shell.


Features


1. The radiation heating section adopts a double-row coil structure, the convection heat exchange section adopts S-type multi-return heat exchange structure, and the air preheater is arranged at the tail to improve the efficiency of waste heat utilization.


2. Efficient steam / hot water energy-saving equipment is arranged at the tail of the coal steam boiler. This structure can effectively absorb heat, reduce exhaust gas temperature, improve heat efficiency, and reduce fuel consumption and energy saving.


3. The chain grate furnace arch adopts a special design, the air chamber is independently adjusted, the coal combustion is even and sufficient, and the coal type has strong adaptability.


4. The wood pellet steam boiler uses high-quality insulation materials and special construction technology, with little heat loss and high thermal efficiency.


5. The heat exchange surface of the furnace adopts double-row coils, and the heated surface is fully arranged to withstand high loads.


6. The wood pellet steam boiler can be operated in a variety of monitoring modes and is equipped with a full set of automatic control and monitoring instruments.


7. The convection heat transfer section of the small coal fire boiler tail is designed with a special anti-ash structure and equipped with soot blowing device to ensure no dust accumulation during operation and ensure heat exchange efficiency.


8. Combine industrial automation control technology, Internet technology, computer software, and artificial intelligence technology to establish an industrial biomass boiler Iot platform, which can realize remote human-computer interaction and data sharing, and realize automatic control.

Manufacturer Supplier high quality wood pellet steam boiler and biomass steam boiler for wholesale

DZL Industrial Biomass Boiler Technical Data Sheet

DZL Coal Fired Steam Boiler Technical Parameters
Paraments DZL1-A II DZL2-A II DZL 4-A II DZL8-A II
Rated evaporation capacity (T) 1 2 4 8
Rated working pressure (MPa) 0.7/1.0/1.25 0.7/1.0/1.25 1.25/1.6 1.25/1.6
Rated steam temperature (℃) 170/184/194 170/184/194 194/204 194/204
Water-supply temperature(℃) 20 20 20 20
Boiler heating area (㎡) 57.47 89.4 124.9 432.22
Grate area (㎡) 2.7 3.45 5.9 10.81
Exhaust flue gas temperature (℃) 120.7 157 167 163.41
Thermal Efficiency (%) 80.42 78.4 79.7 79.36
Size (m) 5.27*2.5*3.15 5.4*2.4*3.48 6.18*2.95*3.35 9.05*3.2*4.3
Consumption (kg/h) 155 306 611 1153
Induced Draft
Fan		 Model Y9-19-6.3C GY2-15 Y6-41-7.1C Y9-26-10D
Power(KW) 5.5 11 18.5 45
Forced Draft
Fan		 Model 4-72-3.3A GG1-15 G6-41-6.4A 4-72-5A
Power(KW) 2.2 3 5.5 15
Water Pump Model 1W2.4-10.5 11/2GC-5*7 11/2GC-5*7 2GC-5*6
Power(KW) 3 7.5 7.5 18.5
Grate Governor
Box		 Model WT-4 WT-5 WT-6 WT-10
Power(KW) 0.55 0.55 0.55 1.1
Slag Remover Model GBC-1 GBC-2 GBC-4 GBC-8
Power(KW) 1.1 1.1 1.1 1.5
Coal Conveyor Model FS-1 FS-2 FS-4 FS-8
Power(KW) 1.1 1.1 1.1 1.5

DZH Industrial Biomass Boiler Technical Data Sheet

Parameters Table for DZH 0.5-6 ton
Item No. DZH0.5-0.7 DZH1-1.0 DZH1-1.25 DZH2-1.0 DZH2-1.25 DZH4-1.25 DZH4-1.6 DZH6-1.25
Rated steam output(t/h) 0.5 1 1 2 2 4 4 6
Rated work pressure(Mpa) 0.7 1 1.25 1 1.25 1.25 1.6 1.25
Rated steam temperature(°C) 165.3 184 194 184 194 194 204 194
Rated feed water temperature(°C) 20 20 20 20 20 20 20 20
Thermal efficiency(%) 76.6 77.18 77.6 76.8 77.7 78.8 78.8 78.5
Fuel consumption (kg/h) 79 172 178 358 361 726 732 1080
Shipping size(m) 3.67*
1.76*
2.78		 4.31*
1.9*
2.86		 4.31
*1.9*
2.85		 5.41
*2.6*
3.1		 5.41
*2.6*
3.26		 5.86
*2.8*
3.39		 5.86
*2.8*
3.4		 6.2*
2.96*
3.58
