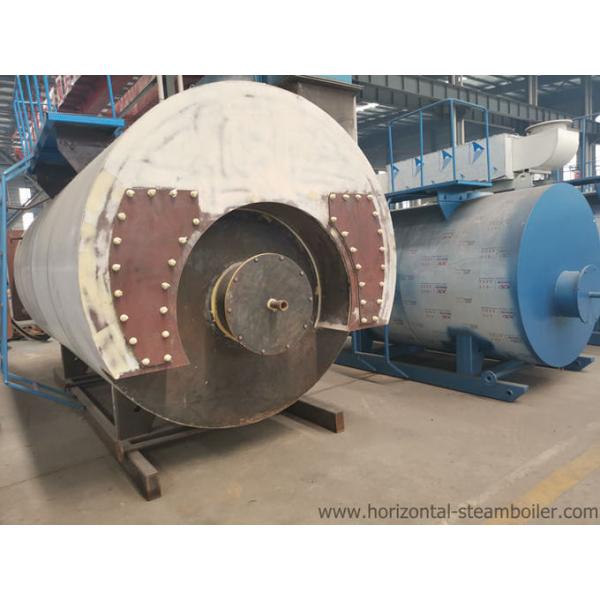

5T Heating Output Gas Fired Steam Boiler Efficiency For Hotel Heating Supply
5T Heating Output Gas Fired Steam Boiler Efficiency For Hotel Heating Supply
5T Heating Output Gas Fired Steam Boiler Efficiency For Hotel Heating Supply
5T Heating Output Gas Fired Steam Boiler Efficiency For Hotel Heating Supply
Specifications
Brand Name :
YONGXING
Model Number :
WNS1ton~20ton,1.25/1.6/2.5Mpa,Oil fired steam boiler
Certification :
ISO9001,ISO14001,A-CLASS，SGS,BV
Place of Origin :
HENAN PROVINCE
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
1000SETS/MONTH
Delivery Time :
15-30DAYS
Packaging Details :
Nude packing+wooden box+steel box ,and etc.
FUEL :
NATURAL GAS/LPG/CITY GAS ,ETC
Boiler capacity :
1Ton~20tons
Boiler outer package :
Stainless Steel
Thermal Efficiency :
92.4%--94.5%
control mode :
Automation
The return trip :
Three return
Structure :
Smoke Pipe
Applications :
Central heating, mass heating
Name :
Gas Fired Boiler Efficiency
Output :
Steam
Description

5T Heating Output Gas Fired Boiler Efficiency For Hotel Heating Supply

Introduction of Gas Fired Boiler Efficiency

The fuel used: using various natural gas and petroleum fuels such as natural gas, liquefied petroleum gas, liquefied natural gas, natural gas, city gas, biogas, diesel, heavy oil, etc.

The boiler burner is a famous brand in Italy and Germany, which is safe and reliable and has a long service life.

Working pressure: 1.0Mpa (10bar), 1.25Mpa (13bar), 1.6Mpa (16bar), 2.5Mpa (25bar)

Advantages Of Industrial Gas Fired Boiler Efficiency

1. With the all-wet back structure design, the entire smoke chamber is inside the boiler, directly heating the water in the boiler, reducing the heat consumption, and also avoiding local overheating of the boiler and improving the service life of the boiler.

2. The boiler body adopts the design of the advanced corrugated furnace, which increases the volume of the combustion chamber, increases the furnace diameter, increases the heat radiation area, increases the heat transfer effect, and improves the strength of the furnace. It can effectively avoid the uneven heating of the boiler tube sheet, which is the occurrence of tube sheet fracture.

3. The boiler adopts a variety of automatic alarm systems and safety control systems to ensure the safety of boiler operation.

4.100% steel plate, steel pipe, welding rod x-ray non-destructive testing (non-destructive testing) to ensure the quality of the entire boiler

5. Overpressure 40%-50% hydraulic test to ensure standard working pressure and safety.

6. It can be applied to greenhouses, hotels, hospitals, schools, districts, central heating.

Gas Fired Boiler Efficiency​ Technical Parameter

Boiler model Rated capacity Rated pressure Rated Feed temp. Rated Steam temp. Thermal efficiency Weight Dimensions
t/h Mpa ℃ ℃ % ton mm
WNS1-1.0-Y(Q) 1 1 20 184 91 4.3 3561×1690×1910
WNS 2-1.25- Y(Q) 2 1.25 20 194 92 7.2 4111×1950×2199
WNS3-1.25-Y(Q) 3 1.25 20 194 92.1 8 4330×2248×2564
WNS4-1.25- Y(Q) 4 1.25 20 194 93 9.6 4732×2150×2448
WNS5-1.25- Y(Q) 5 1.25 20 194 93 12.5 5970×2360×2796
WNS6-1.25- Y(Q) 6 1.25 20 194 93.2 16.5 5500×2600×2990
WNS8-1.25- Y(Q) 8 1.25 105 194 93.5 24.8 6450×2800×3200
WNS10-1.25- Y(Q) 10 1.25 105 194 93.5 26.8 6800×2900×3394
WNS15-1.25- Y(Q) 15 1.25 105 194 93.5 38 7150×3200×3540
WNS20-1.25- Y(Q) 20 1.25 105 194 93.5 55 8200×3400×3826

Gas Fired Boiler Efficiency​ Guide FAQ:


Dear friend,
Thanks for your time in scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: Gas Fired Boiler Efficiency​
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.
It is ok to copy the question and answer directly when sending us the inquiry!
Welcome you any time!
