Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
Specifications
Brand Name :
DLK
Model Number :
Q43 - 3150
Certification :
ISO9001
Place of Origin :
Jiangsu P.R. China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10 sets/ month
Delivery Time :
20 days
Packaging Details :
Seaworthy packing
Rated Power :
37 kW
Cutting Specifications :
80*80mm
Cutting Speed :
8 - 12 times / min
Color :
Customized
Max. Blade Open :
580mm
Blade Length :
1200mm
Shipping Weight :
Approx. 10 tons
Pump :
80YCY*2
Description

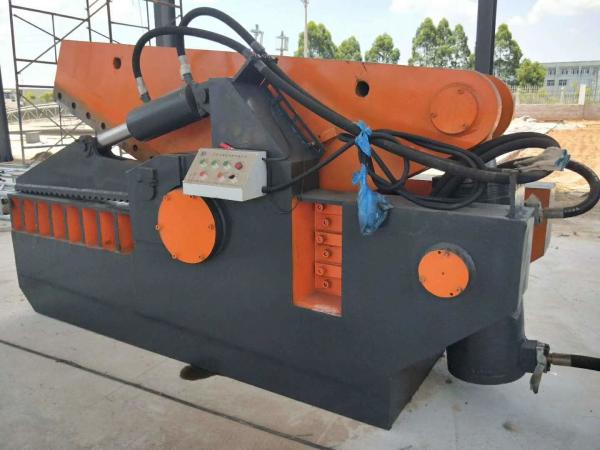

Simple Operation,Blade length 1200mm,Without Foundation Q43 alligator shear

Applications:

Such machinery is applicable to metal reclamation plants, scraped car dismantle sites , refining &casting industry, and it conducts cold-state shear for various structural steel and metal framework to produce qualified charging.

Features:

1. Such series employ hydraulic drive ,featuring reliable safety performance and convenient operation.

2. Length of working edge: 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm, and the shearing force covers11 grades from 63t to 600t, which can meet different requirements of users.

3. Foot screws may not be used for installation and a diesel engine can be adopte in case of unavailability of power supply.


4. Options for different force & blade length.

5. Hydraulic drive, simple operation & easy maintenance.


6. No footing bolts needed, diesel engine optional for power.

Technical parameters:

No.

Model

Shearing force

Max.opening

Blade Length

Max.cutting material

Power

1

Q43-630

63t

240mm

600mm

30*30mm ¢35

7.5KW

2

Q43-800

80t

280mm

800mm

35*35mm ¢40

7.5KW

3

Q43-1000

100t

320mm

800mm

40*40mm ¢45

11 KW

4

Q43-1200

120t

270mm

600mm

45*45mm ¢50

15 KW

5

Q43-1600

160t

320mm

800mm

55*55mm ¢63

18.5 KW

6

Q43-2000

200t

380mm

1000mm

65*65mm ¢75

22 KW

7

Q43-2500

250t

450mm

1000mm

70*70mm ¢80

2*15 KW

8

Q43-3150

315t

450mm/520mm

1000mm/1200mm

80*80mm ¢90

2*22 KW

9

Q43-4000

400t

660mm

1200mm

90*90mm ¢100

2*30 KW

10

Q43-5000

500t

690mm

1500mm

90*90mm ¢100

2*37 KW

11

Q43-6000

600t

860mm

1600mm

105*105mm ¢120

2*45 KW

Metal Shear Machine Blade Length 1200mm Hydraulic Drive 8 - 12 Times / Min
