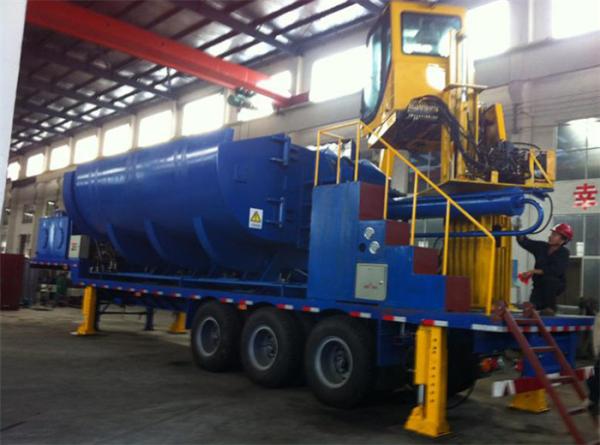

Automatic Portable Baler 21.5mpa 260hp / Scrap Baling Press Machine
Automatic Portable Baler 21.5mpa 260hp / Scrap Baling Press Machine
Automatic Portable Baler 21.5mpa 260hp / Scrap Baling Press Machine
Automatic Portable Baler 21.5mpa 260hp / Scrap Baling Press Machine
Specifications
Model Number :
CB-5000 ,CB-6000
Place of Origin :
Jiangsu P.R. China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5 sets /month
Delivery Time :
60 days
Packaging Details :
Seaworthy packing
Brand Name :
DLK
Diesel Power :
220HP
Automatic Grade :
Automatic
Hydraulic System Working Pressure :
25MPa
Condition :
New
Control System :
PLC Control
Cooler :
Oil-steam heat exchange
Quality :
Grade A
Description

Automatic Portable Baler , 21.5Mpa Baling Machine For Compressing Scrap Metal

Applications


Mobile working, diesel engine driven, no power needed, which are used for scrap; Scrap cars; other metal structures and non-ferrous metals(stainless steel, aluminum alloy, steel,etc).of compression baling.

Cheap price mobile scrap metal baler are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.

Mobile Scrap Car Baler are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.

Technical specification

1

Press box size (L*W*H)

5000*2000*1200mm

2

Bale size (W*H)

800*700mm

3

Hydraulic system working pressure

25MPa

4

Total power

260HP

Cummins

5

Overall dimension

11000*3000*4000 (side wings open)

L*W*H

11000*2300*4000mm (side wings close)

L*W*H

7

Cover area

15000*4000mm

L*W

8

Operating system

Manual

Jiangyin Dehong

9

Cooler

Oil-steam heat exchange

Jinrong Cooler

No

CB-5000 Technical specification

Remark

1

Main cylinder

Model

YG250/160--2210

2set

Nominal pressure

2500KN*2

Trip

2210MM

2

First class cylinder

Model

YG200/140-598

3set

Nominal pressure

800KN

Trip

598MM

3

Second class cylinder

Model

YG200/140-598

3set

Nominal pressure

800KN

Trip

598MM

4

Press box size(L×W×H)(MM)

5000*2430*1600

5

Bale size(L×W×H)(MM)

(1000)*800*700

6

Working pressure(Mpa)

21.5 (turn out system6Mpa)

7

Bale density(Kg/m3)

≥2000(Fe)

8

Discharge bale out

Grab machinery

9

Power

Diesel

260HP

10

Oil pump

Model

Variable double-piston constant power

Pressure

31.5Mpa

Oil flow

125ml/*2

Quantity

1set

Manufacture

11

Control system

PLC control

12

360 degree rotation grab

Automatic Portable Baler 21.5mpa 260hp / Scrap Baling Press Machine
