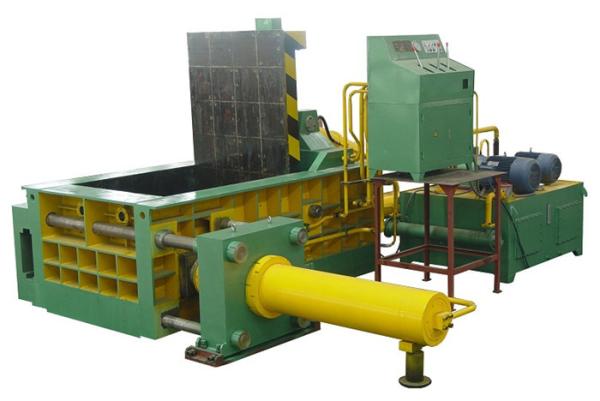

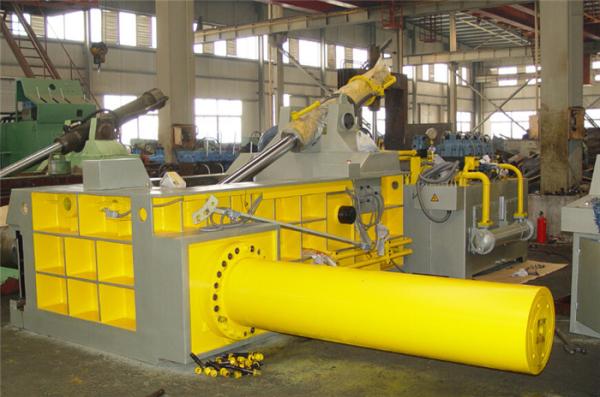

Push Out Type Hydraulic Baling Equipment 400*400mm Bale Size High Speed
Push Out Type Hydraulic Baling Equipment 400*400mm Bale Size High Speed
Push Out Type Hydraulic Baling Equipment 400*400mm Bale Size High Speed
Push Out Type Hydraulic Baling Equipment 400*400mm Bale Size High Speed
Specifications
Model Number :
Y81T-200
Place of Origin :
Made in China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10 sets/month
Packaging Details :
nude packing
Brand Name :
DLK
Delivery Time :
40 days
main machine size :
4100*4100*2600mm
press box size :
1600*1200*800mm
bale size :
400*400mm
bale weight :
120-220Kg
production rate :
2.5-4.5 per/hr
shipping weight :
approx.15tons
Quality :
Grade A
Price :
Negotiation
Description

Push - out Type , Hydraulic Baling Press For Pressing Scrap Metal , Hydraulic Drive

Technical parameters

Power system

Rated Speed

Rated Power

Power Spec.

Lid cyl. Force

Side Door

cyl. Force

Main Pressure cyl. Force

Motor ,2 sets

1470 rpm

22 kw

3ph,50/60 HZ

63 Ton

2*100Ton

200 Ton

Small Door

cyl. Force

Hydraulic System Pressure

Idle Cycle

Time

Hydraulic System

Rated Displacement

Operating System

Max. Operating

Pressure

50 ton

25mpa

APPROX. 100 Sec

Pump, 2 ets

80 mr/r

1. PLC Operation

2. Manual valve operation

31. 5 Mpa

Standard Operation

Optional Configuration

A3 Steel Liners , Surface heat Treatment

Cutting Blades and teeth(2 sides)

Loading Hopper

Cooler/ Heater

Diesel / Diesel

Generator for power

Company Profile

Jiangsu Dalongkai Technology Co., Ltd is the professional manufacturer who is specialized in producing the balers, metal shears, metal scrap briquette machines, loose material baler and other hydraulic machinery. We provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, textile, fiber, paper-making, waste recycle, automobile, metal processing and so on.

Corporate Mission


We will enter into everyshere in the world.
Make all customers be proud of our products.
Trying to be the leader of our business line.

Company Culture


To become the best employees, create high quality products, creat first-class business
Strengthen management, improve service, brand first, quality first
Faith based, innovation, common development

Introduction

Y81 series hydraulic metal balers press the leftover of all kinds of metal material (steel shavings ,scrap steel, scrap copper ,scrap aluminum,scrap stainless steel ) to be qualified furnace in the shape of cuboid ,octagon ,cylinder and so on ,which not only decreases the freight and smelting costs ,but also increase the speed of casting .This machine is mainly applicable to steel mills ,recycling industries and ferrous metallurgical works .

Y81 series metal hydraulic baler is capable of extruding various metal leftover materials,steel parting ,as square column, cylinder, octagon body and other sharps,in a bid to reduce transportation costs,and increase transportation speed. Such baler is mainly used in steel plants,nonferrous and ferrousmetal refining industry.automatic control operation as options.The discharging types fall into turning over, push out, forward out and manual lifting. It is unnecessary to fix foot screws and a diesel engine can be usedin case of power supply unavailability. The extrusion force ranges from 63t to 400t, totaling 10 grades for customers’ selection,and productivity being from 4t/shift to 40/shift.
