51mm Hydraulic Hose Crimping Machine 2 Inch Electric High Pressure Hose Crimper
51mm Hydraulic Hose Crimping Machine 2 Inch Electric High Pressure Hose Crimper
51mm Hydraulic Hose Crimping Machine 2 Inch Electric High Pressure Hose Crimper
51mm Hydraulic Hose Crimping Machine 2 Inch Electric High Pressure Hose Crimper
Specifications
Brand Name :
MENSION
Model Number :
MS-51
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Color :
Yellow
Max. Opening :
30mm
Crimping Force :
500T
Product Name :
MS-51 Hose Crimping Machine
Application :
Workshop
System Pressure :
31.5Mpa
Voltage :
220V
Size :
670*430*820mm
Weight :
260Kg
Description

Electric Manual Hose Crimping Machine 2 Inch Hydraulic Hose Crimper

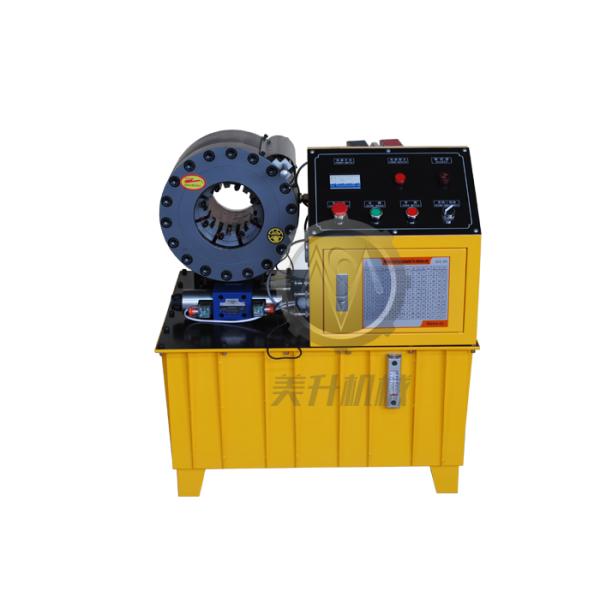

51mm HYDRAULIC HOSE CRIMPING MACHINE MS-51

DESCRIPTION

The MS-51, a cutting-edge 2-inch hose crimping machine designed to revolutionize your industrial operations. This advanced model combines precision engineering with user-friendly features for efficient hose assembly. With its robust construction and state-of-the-art technology, the MS-51 delivers exceptional crimping accuracy, ensuring secure and leak-free connections. Its intuitive interface simplifies operation, while the powerful hydraulic system guarantees consistent performance.

MAIN FEATURES

1. Precise Crimping Accuracy:
- Ensures secure, leak-free connections.

2. User-Friendly Interface:
- Simplifies operation for easy use.

3. Powerful Hydraulic System:
- Delivers consistent and reliable performance.

4. Compact and Portable Design:
- Suitable for various work environments.

5. Customizable Settings and Safety Mechanisms:
- Offers versatility and enhanced safety.

TECHNICAL DATA

Model

MS - 51 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) Single Phase

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

820 (mm)

Weight

260 (KG)

51mm Hydraulic Hose Crimping Machine 2 Inch Electric High Pressure Hose Crimper

51 HOSE CRIMPER DIE SETS

Die No.

Crimping (mm)

 Length (mm)

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 15 mm

 35

15

15 - 19 mm

 60

19

19 - 23 mm

 60

23

23 - 26 mm

 60

26

26 - 31 mm

 60

31

31 - 36 mm

 70

36

36 - 41 mm

 70

41

41 - 47 mm

 70

47

47 - 55 mm

 80

55

55 - 63 mm

 80

63

63 - 69 mm

 80

69*

69 - 76 mm

 90

NOTE

• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale

OPTIONAL

• Quick Change Tool

• Quick Change Die Set Rack

• UC Control

► CRIMPING MACHINE ARE MAINLY USED FOR HYDRAULIC HOSE ASSEMBLY MAKING
