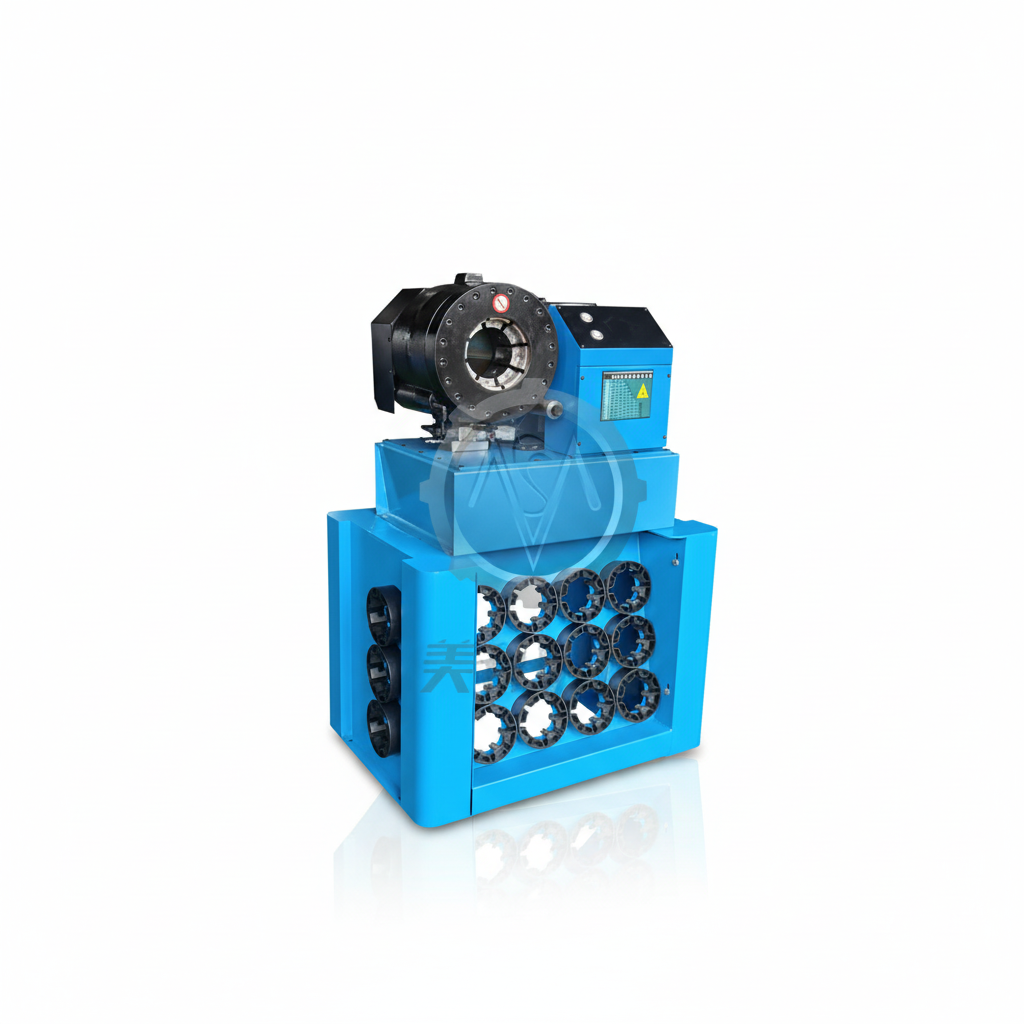

2 Inch Hose Pressing Machine P32 Crimping Machine Finn Power Hydraulic Hose Crimper
2 Inch Hose Pressing Machine P32 Crimping Machine Finn Power Hydraulic Hose Crimper
2 Inch Hose Pressing Machine P32 Crimping Machine Finn Power Hydraulic Hose Crimper
2 Inch Hose Pressing Machine P32 Crimping Machine Finn Power Hydraulic Hose Crimper
Specifications
Brand Name :
MENSION
Model Number :
P32
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
650T
Product Name :
P32 Hose Pressing Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
650*550*1360mm
Weight :
310Kg
Description

P32 HOSE HYDRAULIC PRESSING MACHINE

DESCRIPTION

P32 high pressure hose crimping machine is efficiency and reliability in hose connections.

Our cutting-edge High Pressure Hose Crimping Machine is here to revolutionize your hose assembly process. With unrivaled precision and uncompromising reliability, this machine ensures secure and leak-free connections, empowering your operations across various industries.

Experience unparalleled versatility as this machine effortlessly handles a wide range of hose sizes and types. Equipped with an intuitive interface and user-friendly controls, operators can achieve consistent and precise crimps with ease, minimizing downtime and maximizing productivity.

Built to withstand demanding environments, this machine boasts a robust construction and advanced safety features, prioritizing both durability and operator protection. Elevate your hose assembly capabilities with our High Pressure Hose Crimping Machine, setting new standards for efficiency and reliability.

ADVANTAGES

1. Efficiency Boost: Streamlined Production Process.
2. Reliable Connections: Leak-Free Performance.
3. Versatile Application: Wide Range of Uses.
4. Time Savings: Faster Hose Assembly.

TECHNICAL DATA

Model

P32 Hose Pressing Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

550 (mm)

Height

1360 (mm)

Weight

310 (KG)

2 Inch Hose Pressing Machine P32 Crimping Machine Finn Power Hydraulic Hose Crimper

P32 HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6 *

6 ... 8mm

 55mm

8 *

8 ... 10mm

 55mm

10 *

10 ... 12mm

 55mm

12 *

12 ... 14mm

 55mm

14

14 ... 16mm

 55mm

16

16 ... 19mm

 55mm

19

19 ... 22mm

 55mm

22

22 ... 26mm

 70mm

26

26 ... 30mm

 70mm

30

30 ... 34mm

 70mm

34

34 ... 39mm

 75mm

39

39 ... 45mm

 75mm

45

45 ... 51mm

 90mm

51

51 ... 57mm

 90mm

57

57 ... 63mm

 100mm

63

63 ... 69mm

 110mm

69

69 ... 74mm

 110mm
74 * 74 ... 78mm 110mm
78 * 78 ... 87mm 110mm

NOTE

• " * " for non standard die sets

• Customized die sets are available

• Special voltage 110V, 208V, 240V, 415V are availbale

OPTIONAL

• UC control system

• Position limit device

CRIMPING APPLICATIONS FOR THE P32 HYDRAULIC HOSE CRIMPING MACHINE

2 Inch Hose Pressing Machine P32 Crimping Machine Finn Power Hydraulic Hose Crimper
