Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine
Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine
Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine
Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine
Specifications
Brand Name :
MENSION
Model Number :
MS-SP52
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4'' - 2''
Die Sets :
10 sets
Color :
Blue or customized
Max. Opening :
25mm
Crimping Force :
640T
Product :
MS-SP52 Hose Crimper
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3KW
Size :
630*450*600mm
Weight :
200Kg
Description

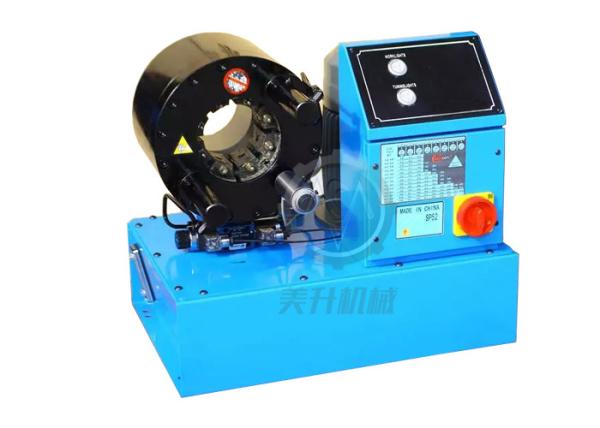

HYDRAULIC HOSE CRIMPING MACHINE MS-SP52

DESCRIPTION

MS-SP52 hose assembly pressing machine is designed for pressure flexible rubber hose from 1/4'' to 2'' inch making. It is with compact small structure, can be easily put on any rack or horizontal platform.

This 2 inch hydraulic crimping machine can be used not only for hydualic rubber hose fabricating, but also can be used for steel tube pressing, wire rope swaging, industrial pipe and cable crimping.

ADVANTAGES

1) Small size with big crimping and withholding force,

2) Advanced oil transfer system with auto heat releasing system,

3) Fast closing and opening speed with quick valve,

4) High efficiency and top accuracy with Finn Power crimping Dial,

5) Stable hose crimping performance due to high quality materials.

TECHNICAL DATA

Model

MS-SP52 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4'' - 2'' (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

P52

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW) / 4 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)

Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine

SP52 HYDRAULIC HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 60

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 100

NOTE

1) Customized crimping die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.

OPTIONAL

1) Quick Die Change Tool;

2) Die Set Rack/ Machine Stand;

3) UC control;

4) Foot Pedal;

5) Pressure Gauge;

6) Normal Rack

► APPLICATION FIELD FOR SP52 HOSE CRIMPING MACHINE

SP52 cable pressing tool is often used for workshop hose repair service. The 10 die sets which are offered as standard, can swage hydraulic high pressure steel wire braided hose from 1/4'' to 2'', each die sets has each own crimping size, we recommend different hose size use different die sets to get the most ideal crimping effect.

Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine

Two Inches High Pressure Hydraulic Hose Crimping Machine Hydraulic Pipe Clamp Machine
