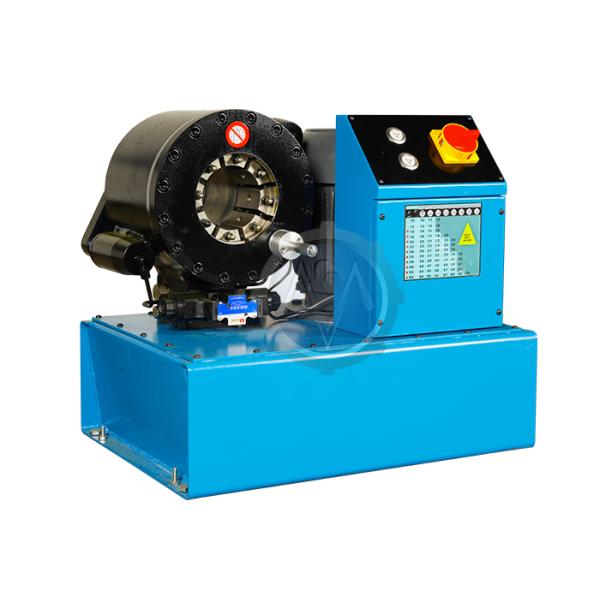

WORKSHOP INDUSTRIAL VEHICLE HOSE CRIMPING MACHINE MS-38

DESCRIPTION

MS-38 hose crimper is for hydraulic high pressure hose from 1/4'' to 2'' crimping, it comes with 10 die sets and a mold change fork, automatic lubricating of the whole hydraulic system makes it easy and low cost in regarding the maintenance.

MAIN FEATURES

► Good steel material and forging technology

► Compact structure with light weight

► Double ebel master die designing

► Die sets with high smoothness, protect galvanized surface of ferrule

TECHNICAL DATA

38MS HOSE MACHINE DIE SETS

NOTE

• Customized die sets are available with different size or shape

• Special voltage such as 110V, 208V, 240V, 415V are availbale

• Foot pedal is available to make the hands free

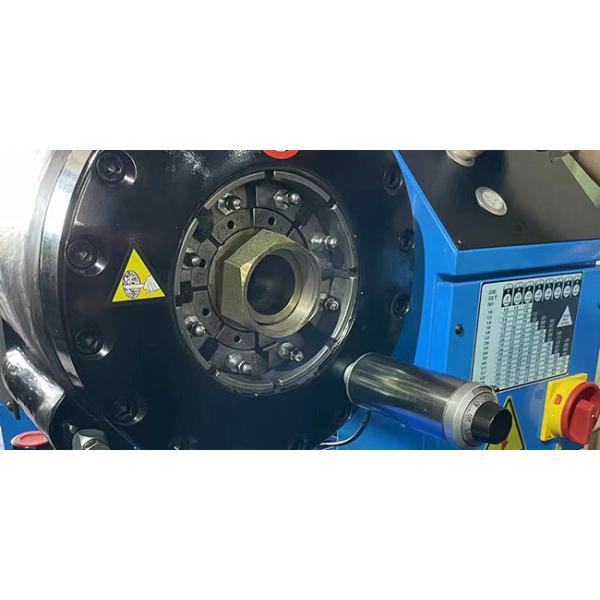

► HYDRAULIC PRESSING HEAD

One piece forged structure make the cylinder a long service time, double conical master die makes the

machine crimp with big force and high accuracy.

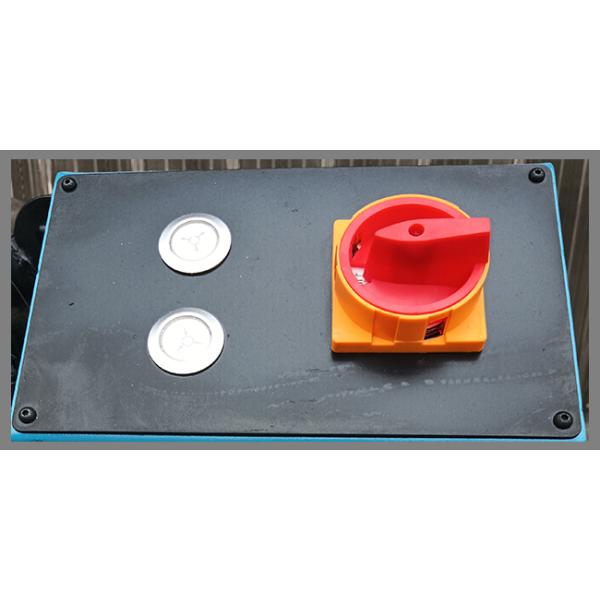

► HUMAN DESIGN OPERATE PANEL

Easy and convenient to operate with two buttons, more suitable for new user

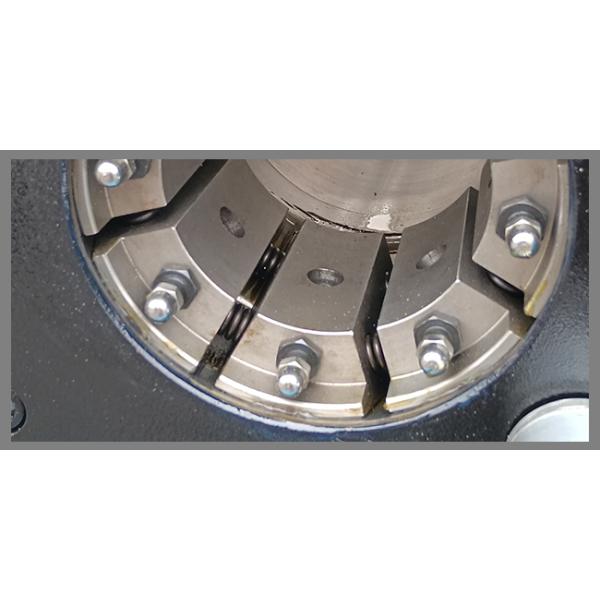

► DIE SETS WITH HIGH HARDNESS

38MS is with 10 die sets with hardness of 59-63HRC, service time longer.

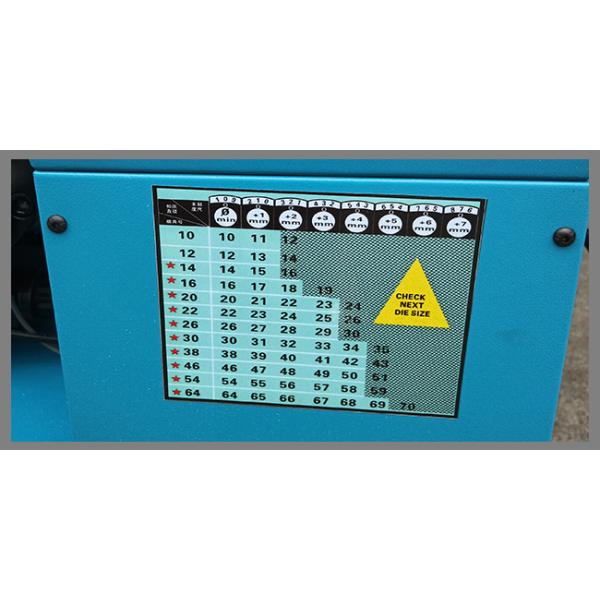

► CRIMPING REFERENCE SHEET

Each machine comes with a die set choosing reference sheet, use proper die sets will make thhe crimping better

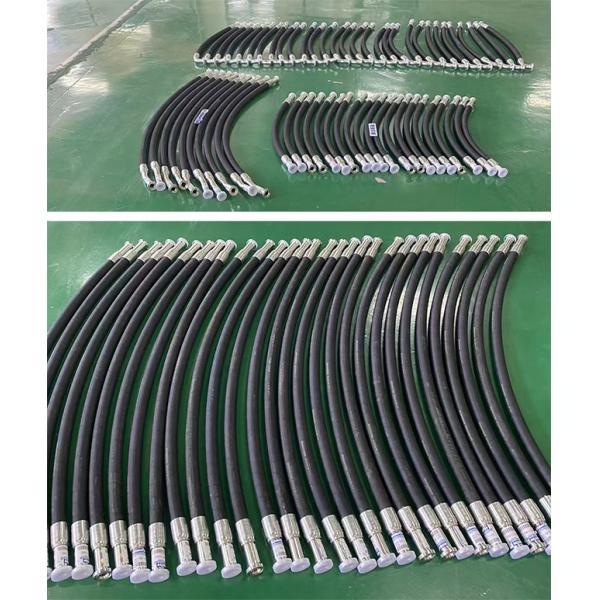

► SAMPLE SHOW

MS-38 have been widely used in hydraulic hose assembly crimping, cable and wire rope pressing,

tube swaging, car automotive components jointing, etc.

WHAT TOOLS NEED FOR HOSE ASSEMBLY CRIMPING?

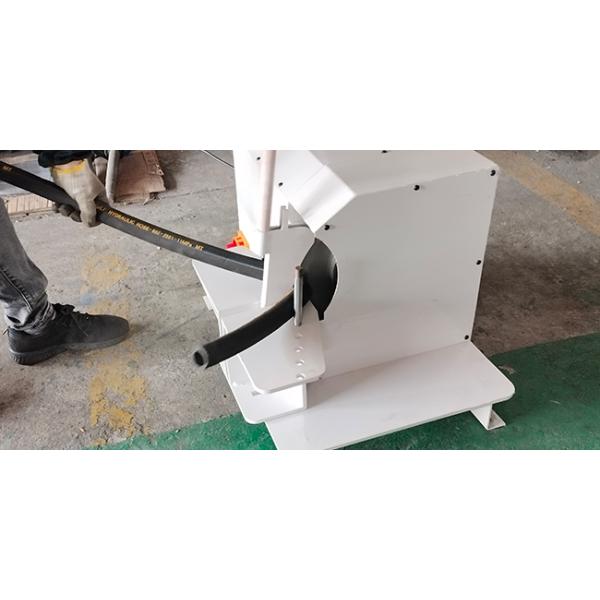

► A cutting machine for cutting the rubber hose to needed length. (Sometimes a cleaning machine

will be made for cleaning the hose inner part)

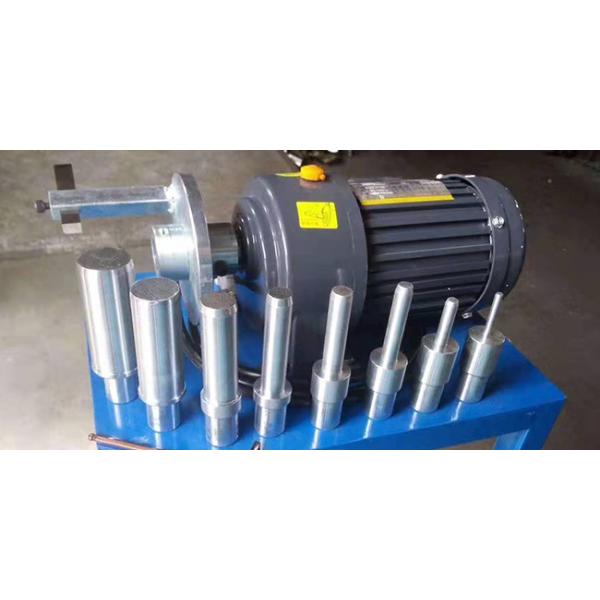

► A rubber layer stripping machine for skiving the out or inner rubber layer, so the hose can be well

connected with the ferrule and fitting stem.

► A crimping machine for jointing the hydraulic hose, hose fitting stem and hose ferrule together,

to get a hose assembly.

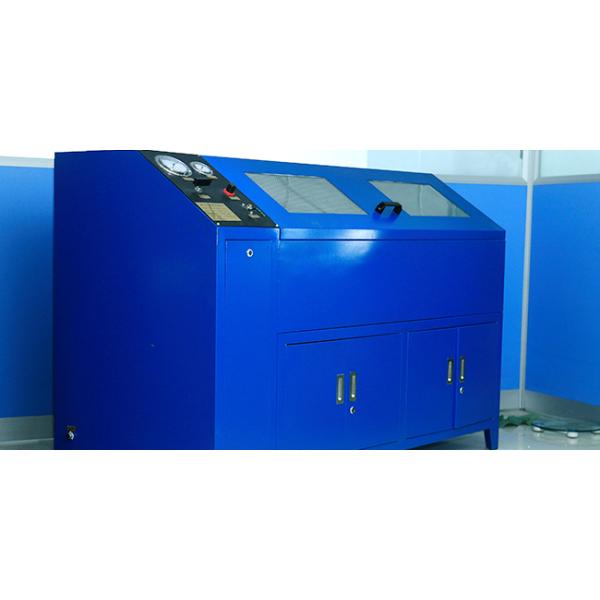

► A pressure test machine for teasting the pressure that the hose assembly can bear, so to confirm

if it is a quality products.
