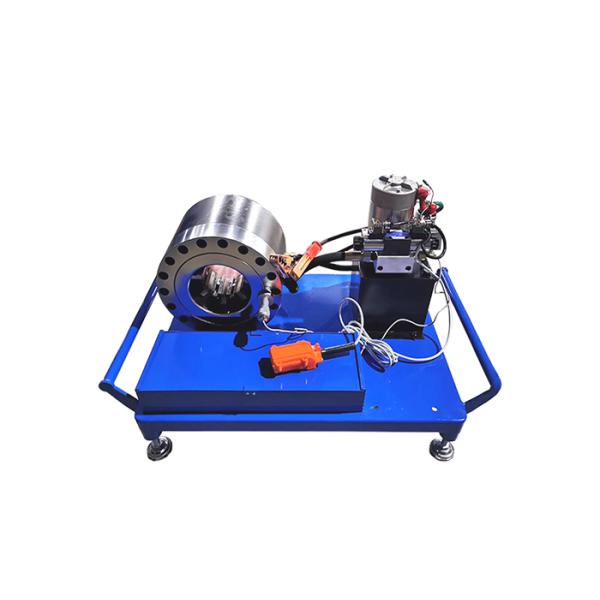

DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper
Specifications
Brand Name :
MENSION
Model Number :
MS-51DC
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Color :
Blue
Max. Opening :
30mm
Crimping Force :
300T
Product Name :
12V DX68 Hose Crimping Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
2.2KW
Size :
650*600*600mm
Weight :
170Kg
Description

12V HOSE CRIMPER MACHINE 51DC

DESCRIPTION

MS-51DC is a unique dx68 hose crimping machine which use car battery as drive power. With ten die sets, it can crimp hose from 1/4 to 2 inch. And for industrial hose up to 3 inch.


MAIN FEATURES


► Forged hydraulic oil clylinder, high hardness;
► Easy hand hold operate panel, more convenient;
► Precise crimping diameter control ruler;
► Advanced back mechenical positioning device;

TECHNICAL DATA

Model

MS-51DC Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

300 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

600 (mm)

Height

600 (mm)

Weight

170 (KG)


DX68 High Hardness 12V Hydraulic Hose Crimping Machine Air Hose Crimper

51 HOSE CRIMPER DIE SETS

Die No.

Crimping (mm)

 Length (mm)

6*

6.0 - 8.0

 35

8*

8.0 - 10.0

 35

10*

10.0 - 12.0

 35

12*

12.0 - 15.0

 35

15

15.0 - 19.0

 60

19

19.0 - 23.0

 60

23

23.0 - 26.0

 60

26

26.0 - 31.0

 60

31

31.0 - 36.0

 70

36

36.0 - 41.0

 70

41

41.0 - 47.0

 70

47

47.0 - 55.0

 80

55

55.0 - 63.0

 80

63

63.0 - 69.0

 80

69*

69.0 - 76.0

 90


NOTE


• " * " for non standard die sets
• Customized die sets are available
• AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale

► HYDRAULIC HOSE ASSEMBLY CRIMPING SAMPLES
