Industrial Hose Crimper Hydraulic Hose Crimping Machine Rubber Brake Line Crimping Tool
Industrial Hose Crimper Hydraulic Hose Crimping Machine Rubber Brake Line Crimping Tool
Industrial Hose Crimper Hydraulic Hose Crimping Machine Rubber Brake Line Crimping Tool
Industrial Hose Crimper Hydraulic Hose Crimping Machine Rubber Brake Line Crimping Tool
Specifications
Brand Name :
MENSION
Model Number :
MS-E38
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Crimping Force :
640T
Max. Opening :
31mm
Power :
4KW
Product Name :
E38 Hose Pressing Machine
Application :
Workshop
Color :
Blue
Size :
630*450*600mm
Weight :
200Kg
Hydraulic Oil :
T46
Description

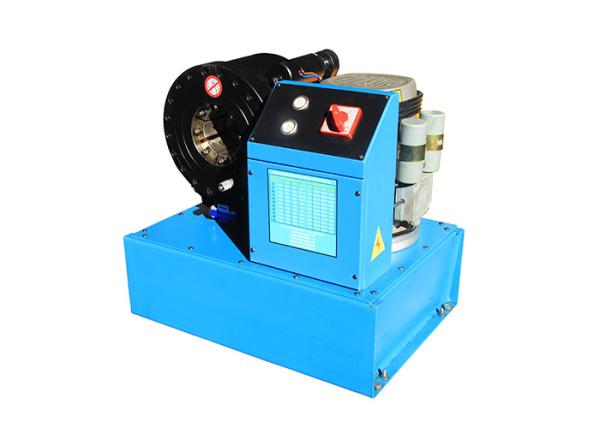

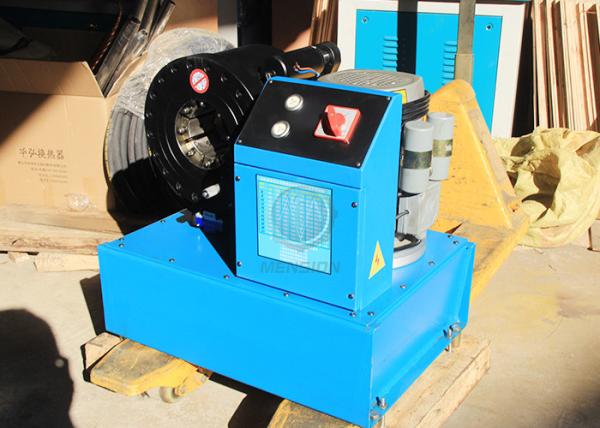

HOSE PRESSING MACHINE MS-E38

DESCRIPTION

MS-E38 rubber pressure hose pressing machine is suitable for hydraulic hose 2 inch, industrial hose 3 inch crimping. Use the oil pump in the fuel tank to soak in the hydraulic oil to achieve the design purpose of scientific heat dissipation and silence. Under the motor drive, the oil pump outputs hydraulic oil to promote the piston movement in the cylinder, resulting in the diameter contraction of the mold base, achieving the press to hose joint connector.

MAIN FEATURES

1. High quality chrome40 steel, long service life;

2. Cylinder design use Germany technology, easy maintenance;

3. Simple panel, more convenient;

4. Common spare parts, low repair cost.

TECHNICAL DATA

Model

MS-E38 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch) 4SH

Max. Opening

31 (mm)

Die Sets

10

Die Set Type

38

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

4 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)
Hydraulic Oil 50 (L)

Industrial Hose Crimper Hydraulic Hose Crimping Machine Rubber Brake Line Crimping Tool

38 HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 60

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 100

NOTE

1) Customized die sets are available with different size or shape;

2) Special voltage such as 110V, 208V, 240V, 415V (60HZ) are availbale;

3) Foot pedal is available to make the hands free;

4) * for non standard die sets.
