Large AC Rubber Hose Crimper Hydraulic Hose Crimping Machine For Sale
Large AC Rubber Hose Crimper Hydraulic Hose Crimping Machine For Sale
Large AC Rubber Hose Crimper Hydraulic Hose Crimping Machine For Sale
Large AC Rubber Hose Crimper Hydraulic Hose Crimping Machine For Sale
Specifications
Brand Name :
MENSION
Model Number :
MS-E180
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 167mm
Hose Size :
1/4 - 4inch
Die Sets :
18
Color :
Grey and Blue
Max. Opening :
45mm
Crimping Force :
980T
Product Name :
E180 AC Hose Crimping Machine
Application :
Production
System Pressure :
31.5Mpa
Power :
7.5KW
Size :
800*650*880mm
Weight :
510Kg
Description

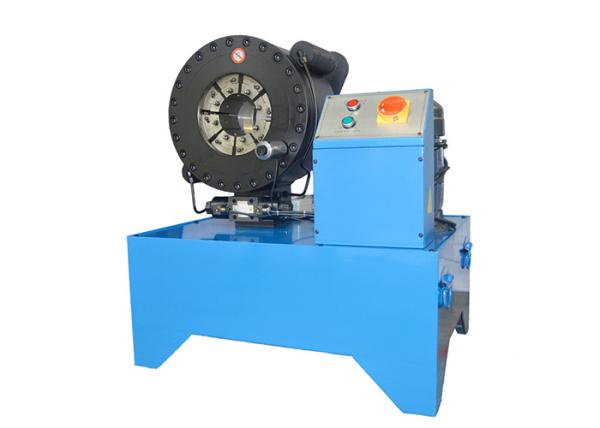

4 INCH LARGE AC HOSE CRIMPING MACHINE MS-E180

DESCRIPTION

MS-E180 ac hose crimper machine can be used for big hose assembly making with bends fittings. Max. opening for master die is 45mm, enable big hose fed. The adapter die sets makes it a wide crimping ability.

MAIN FEATURES

1. Button control, more easy and convenient;

2. World famous hydraulic cylinder structure, low maintenance cost;

3. Germany quality size control ruler, high stability;

5. Copper wire aluminium shell motor, long service time.

TECHNICAL DATA

Model

MS-E180 AC Hose Crimping Machine

Crimping Range

14 - 167 (mm)

Crimping Force

980 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

45 (mm)

Die Sets

18

Die Set Type

32 180

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

380 (V)

Motor Power

7.5 (KW)

Length

800 (mm)

Width

650 (mm)

Height

880 (mm)

Weight

510 (KG)

Large AC Rubber Hose Crimper Hydraulic Hose Crimping Machine For Sale

E180 HOSE CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8 mm

 55

8*

8 - 10 mm

 55

10*

10 - 12 mm

 55

12*

12 - 15 mm

 55

15

15 - 18 mm

 55

18

18 - 21 mm

 55

21

21 - 24 mm

 55

24

24 - 27 mm

 55

27

27 - 33 mm

 55

33

33 - 39 mm

 75

39

39 - 45 mm

 75

45

45 - 51 mm

 90

51

51 - 57 mm

 90

57

57 - 66 mm

 100

66

66 - 73 mm

 110
73 73 - 90 mm 110
90 90 - 96 mm 110
96 96 - 102 mm 120
102 102 - 108 mm 120
108 108 - 114 mm 120
114 114 - 123 mm 120
123 123 - 136 mm 120

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;
