Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper
Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper
Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper
Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper
Specifications
Brand Name :
MENSION
Model Number :
MS-E180
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 167mm
Hose Size :
1/4 - 4inch
Die Sets :
18
Color :
Grey and Blue
Max. Opening :
45mm
Crimping Force :
980T
Product Name :
E180 Brake Hose Crimping Machine
Application :
Production
System Pressure :
31.5Mpa
Power :
7.5KW
Size :
800*650*880mm
Weight :
510Kg
Description

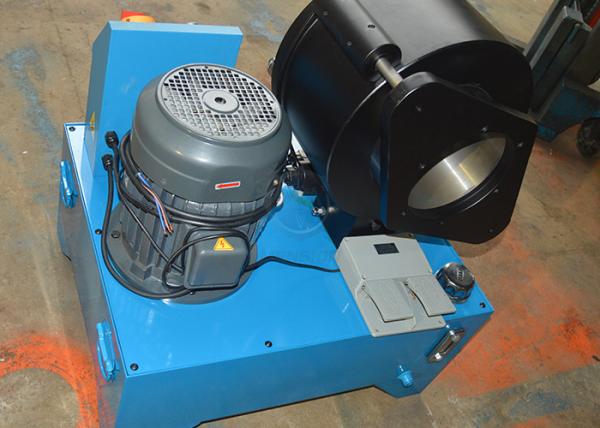

BRAKE HOSE CRIMPING MACHINE MS-E180

DESCRIPTION


MS-E180 brake hose crimper machine is famous for its big crimping force. It is the ideal choice when crimping is for big size and pressure pipes and tubes. With a FINN POWER quality dial, the accuracy can arrive 0.01mm.

MAIN FEATURES

1. Unique valve connect system, high stability;

2. One piece hydraulic head, prevent oil leakage problem;

3. Solenoid valve with high hardness spool, long service time;

4. Heat treatment of the die base.

TECHNICAL DATA

Model

MS-E180 Brake Hose Crimping Machine

Crimping Range

14 - 167 (mm)

Crimping Force

980 (T)

Hose Size

1/4 - 4 (inch)

Max. Opening

45 (mm)

Die Sets

18

Die Set Type

32 180

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

380 (V)

Motor Power

7.5 (KW)

Length

800 (mm)

Width

650 (mm)

Height

880 (mm)

Weight

510 (KG)

Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper

E180 CRIMPER DIE SETS

Die No.

Crimping Range

 Length

6*

6 - 8mm

 55

8*

8 - 10mm

 55

10*

10 - 12mm

 55

12*

12 - 15mm

 55

15

15 - 18mm

 55

18

18 - 21mm

 55

21

21 - 24mm

 55

24

24 - 27mm

 55

27

27 - 33mm

 55

33

33 - 39mm

 75

39

39 - 45mm

 75

45

45 - 51mm

 90

51

51 - 57mm

 90

57

57 - 66mm

 100

66

66 - 73mm

 110
73 73 - 90mm 110
90 90 - 96mm 120
96 96 - 102mm 120
102 102 - 108mm 120
108 108 - 114mm 120
114 114 - 123mm 120
123 123 - 136mm 120

NOTE

- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;

Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper

Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper

Brake Hose Crimping Machine Industrial Hose Crimper Finn Power Swager P32 Crimper
