Hydraulic 3 Inch and 4 inch Industrial Braided Hose Crimping Machine 3kw Compact Structure

Specifications

Brand Name :

Model Number :

FY-51WS

Certification :

CE approved

Place of Origin :

China,Shanghai

MOQ :

1 set

Price :

USD$ 1500/1400/1300/1200

Payment Terms :

L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability :

300 sets per month

Delivery Time :

5-8 working days

Packaging Details :

wooden box

Product name :

hydraulic hose crimping machine

Voltage /Power(w) :

220V/240V/380V/415V(Optional) ；3KW/4KW

Gross Weight :

260kgs

Dimension(l*w*h) :

730*480*740 mm

After-sales service provided :

Video technical support,Online support

Crimping force :

600Ton

Crimping range :

6-76mm/6-90mm

Application :

Crimp Hose

Free dies :

10sets

System pressure :

31.5MPA

Output Volume Of Pump :

2.5L/5L/10L

HIGH LIGHT :

Hydraulic Hose Crimping Machine, Flexible Hydraulic Hose Crimping Machine, Flexible Hose Crimping Machine

Description

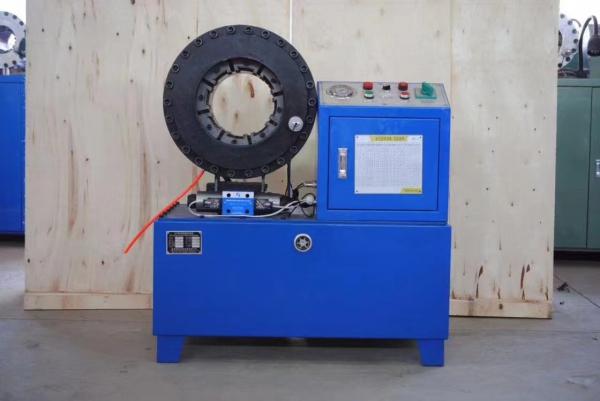

3 Inch /4 inch Industrial Hydraulic Hose Pipe Crimping Machine Compact Structure

Hydraulic Hose Pipe Crimping Machine DESCRIPTION

When using the tube press for the first time, it should be crimped 20 to 30 times without load, and hose crimping machine can be used after observing that all parts are normal.Hydraulic Hose Pipe Crimping Machine is a hot sale domestic design hose crimping machine based on DX68 series. It provide 600T crimping force, can be worked automatically or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.

Hydraulic Hose Pipe Crimping Machine Specification

crimping range	6-76mm(1/4''-3''/4 inch inner diameter of hose)
quantity of dies	10 sets
item diesNo. of	length 60mm(15,19,23,26)
	Length 70mm(31,36,41)
	Length 80mm(47,55,60)
accuracy	0.01mm
output volume of pump	2.5L/5L/10L(Optional)
system pressure	26Mpa/31.5Mpa(Optional)
motor power	3kw/4kw 1,2,3 phase (Optional)
voltage	220V/380V/415V(Customizable) 50/60Hz
crimping force	600T
work efficiency	200pcs/h
maximum open diameter	114mm
the max open tolerance	±30mm
machine dimension	730480740mm
package dimension	10706401150mm
Net weight	245kg
Gross weight	260kg

Hose Crimping Machine TECHNICAL DATA

Model	FY-51WS Hose Crimping Machine
Crimping Range	6-51(mm)
Crimping Force	600(T)
Hose Size	1/4-2(inch)
Max. Opening	30mm
Die Sets	10
Maximum Open Diameter	114MM
System Pressure	31.5(Mpa)
Accuracy	0.01(mm)
Work Efficiency	200 pcs/h
Standard Voltage	220(V)/380(V)
Motor Power	3(KW)/4(KW0
Length	730(mm)
Width	480(mm)
Height	740(mm)
Weight	245(KG)

Hydraulic Hose Pipe Crimping Machine MAIN FEATURES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, two operate mode;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

main product

Hydraulic Hose Crimping Machine
Manual Hose Crimping Machine
Rubber Hose Crimping Machine
DX68 Hose Crimping Machine
AC Hose Crimping Machine

► DIE SETS WITH HIGH HARDNESS

10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC
