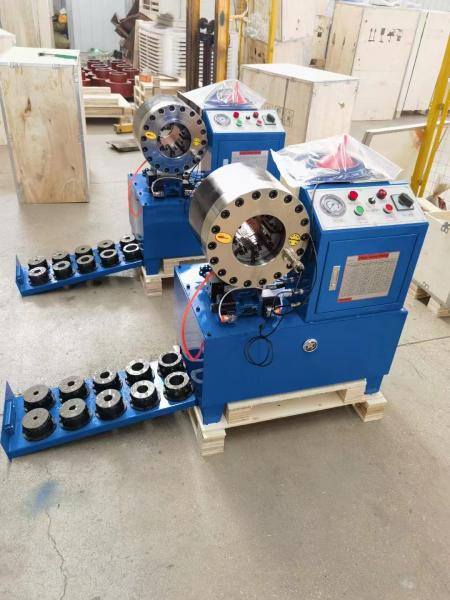

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
Specifications
Brand Name :
FY
Model Number :
FY-DX68
Certification :
CE
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
USD$ 1500/1400/1300/1200
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Voltage :
220V/240V/380V/415V(Optional)
Gross Weight :
260kgs
Net Weight :
245kg
Power(w) :
3KW/4KW
Dimension(l*w*h) :
730*480*740 mm
Package Dimension :
800*530*870 mm
Warranty :
1 Year
Condition :
New
After-sales service provided :
Video technical support,Online support
Crimping force :
600Ton
Product name :
CE approved 6-51mm high pressure hydraulic hose crimping machine
Crimping range :
6-51mm
Color :
Blue,blue or customize
Application :
Crimp Hose
Free dies :
10sets
System pressure :
31.5MPA
Output Volume Of Pump :
2.5L/5L/10L
High Light :
2 Inch DX68 Hose Crimping Machine, Excavator Repair DX68 Hose Crimping Machine, 2 Inch Hose Crimping Machine
Description

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

THE DESCRIPTION OF OUR EQUIPMENT

Calculate the outer diameter of the crimped tubing, install the corresponding crimping die, and fine-tune to the corresponding position.FY-DX68 is a hot sale domestic design hose crimping machine based on DX68 series. It provide 600T crimping force, can be worked automatically or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.

MAIN FEATURES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, two operate mode;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

crimping range
6-51mm(1/4''-2''inner diameter of hose)
quantity of dies
10 sets
item diesNo. of
length 60mm(15,19,23,26)
Length 70mm(31,36,41)
Length 80mm(47,55,60)
accuracy
0.01mm
output volume of pump
2.5L/5L/10L(Optional)
system pressure
26Mpa/31.5Mpa(Optional)
motor power
3kw/4kw 1,2,3 phase (Optional)
voltage
220V/380V/415V(Customizable) 50/60Hz
crimping force
600T
work efficiency
200pcs/h
maximum open diameter
114mm
the max open tolerance
±30mm
machine dimension
730*480*740mm
package dimension
1070*640*1150mm
Net weight
245kg
Gross weight
260kg




TECHNICAL DATA

Model FY-DX68 Hose Crimping Machine
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 30mm
Die Sets 10

Maximum Open Diameter

 114MM
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)

Work Efficiency

 200 pcs/h
Standard Voltage 220(V)/380(V)
Motor Power 3(KW)/4(KW0
Length 730(mm)
Width 480(mm)
Height 740(mm)
Weight 245(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

► DIE SETS WITH HIGH HARDNESS

10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

► WORKING LIGHT

Make crimping more safe and easy

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

► OEM SERVICE

Customized color and Customized outlook for hose crimping machine. OEM service available for all our machines.

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

► APPLICATION FIELD

The basic fucntion of a hose crimping machine is for crimping hose assembly, but a hose crimping machine can not only do rubber hose crimping, but can be used for quick jointing of other materials, like cables, low pressure water pipes, wires, ropes, automotive brake lines, etc.

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair

2 Inch DX68 Hose Crimping Machine Long Service Time Excavator Repair
