Specifications
Brand Name :
FY
Model Number :
FY-LSSK51
Certification :
CE approved
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
USD$ 1500/1400/1300/1200
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Product name :
6-51mm 2" New Technology Forging Process Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper
Crimping force :
600Ton
Crimping range :
2 Inch/6-51mm
New Technology :
Forging process
package dimension :
900*685*1410 mm
gross weight :
0.326ton
Package Length :
900mm
Package Width :
685mm
Package Height :
1410mm
Color :
Green
Description

6-51mm 2" New Technology Forging Process Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper

Hydraulic Hose Pipe Crimping Machine Description

Introducing the 6-51mm, 2-inch hydraulic hose crimping machine, featuring an innovative forging technology. This Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper comes equipped with 10 dies, allowing for a wide range of hose crimping applications. Designed for efficiency and precision, Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper ensures consistent results while enhancing productivity. The striking green finish adds a contemporary flair, making Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper an attractive addition to any workspace. Built for durability, this Hydraulic Hose Crimping Machine 10 Dies Hose Crimping Machine/Hose Crimper is perfect for professionals who demand high-quality performance.

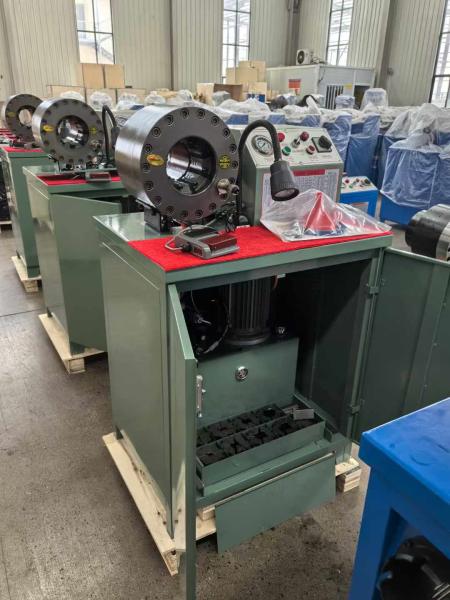

Hydraulic Hose Pipe Crimping Machine mainly by withholding mechanism, motor, gear pumps, control valves and tank components. Suitable for mechanical engineering in the high-pressure hose assembly with hold processing, but also with hold two-way elbow, elbow and large shaped head. Hydraulic Hose Pipe Crimping Machine is a metal fitting through the hydraulic machinery and the corresponding mold with a high pressure hose withhold closely together to prepare a high-pressure hose and fluid connectors, referred to as high-pressure hose assembly. High-pressure hose assemblies are widely used in oil, coal, aerospace, construction machinery, agricultural machinery and other industries etc.

Hydraulic Hose Pipe Crimping Machine Specification

crimping range 4-51 mm
quantity of dies 11 sets
accuracy 0.01 mm
output volume of pump 10L
system pressure 31.5mpa
motor power 3kw/4kw
voltage 110v/220v/240v/380v/415v(optional)
crimping force 600 t
work efficiency 200 pcs/h
maximum open diameter 114 mm
the max open tolerance 30 ±mm
machine dimension 860*640*1300 mm
package dimension 900*685*1410 mm
net weight 310 kg
gross weight 325 kg

Hydraulic Hose Pipe Crimping Machine TECHNICAL DATA

Model FY-LSSK51 Hose Pipe Crimping Machine
Crimping Range 4-51(mm)
Crimping Force 600(T)
Hose Size 1/8-2(inch)
Max. Opening 30mm
Die Sets 11
Maximum Open Diameter 114MM
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)
Work Efficiency 200 pcs/h
Standard Voltage 110v/220v/240v/380v/415v(optional)
Motor Power 3(KW)/4(KW)
Length 860(mm)
Width 640(mm)
Height 1300(mm)
Weight 310(KG)

Hydraulic Hose Pipe Crimping Machine MAIN FEATURES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, two operate mode;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

6-51mm 26-51mm 26-51mm 26-51mm 26-51mm 26-51mm 26-51mm 26-51mm 26-51mm 2



NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

► DIE SETS WITH HIGH HARDNESS

10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC


6-51mm 2

6-51mm 2

► WORKING LIGHT

Make crimping more safe and easy

6-51mm 2

► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

6-51mm 2

► APPLICATION FIELD

The basic fucntion of a hose crimping machine is for crimping hose assembly, but a hose crimping machine can not only do rubber hose crimping, but can be used for quick jointing of other materials, like cables, low pressure water pipes, wires, ropes, automotive brake lines, etc.

6-51mm 2

6-51mm 2

6-51mm 2

6-51mm 2

6-51mm 2

TAG:

Car Battery Power Hose Crimper,

High Hardness Hose Crimping Machine,

Good Durability Dx68 Hose Crimping Machine
