BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE

FY-CBK-51B DECRIPTION

2-Inch Hydraulic Hose Crimping Machine
This 2 Inch Button Control Systerm 5.5kw/7.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Crimping Machine Specifications:

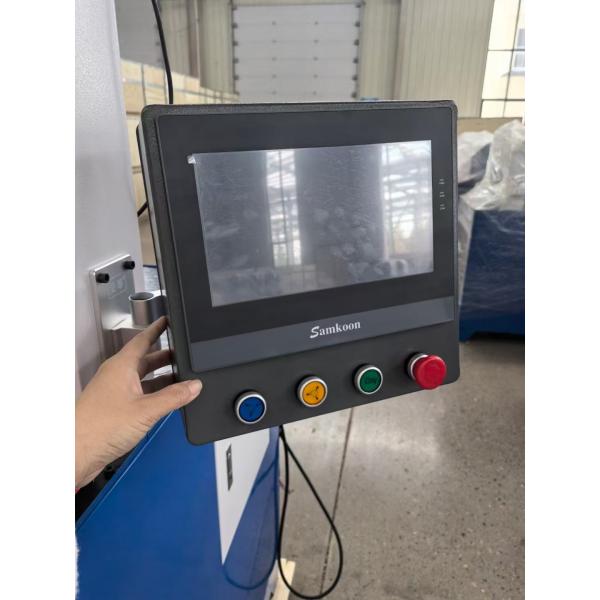

Control System: 2 Inch Button Control Systerm 5.5kw/7.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Crimping Machine Button Control System for easy operation
Power Options: 2 Inch Button Control Systerm 5.5kw/7.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Crimping Machine Available in 5.5 kW or 7.5 kW configurations
Working Efficiency: 2 Inch Button Control Systerm 5.5kw/7.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Crimping Machine Capable of crimping up to 300 pieces per hour
Hose Size Compatibility: Specifically designed for 2-inch hoses
Features:

Fast Change Moulds: The machine is equipped with quick-change moulds, allowing operators to switch between different crimping dies swiftly. This feature minimizes downtime and enhances productivity, making it ideal for high-volume production environments.
Robust Hydraulic System: Built with a powerful hydraulic system that ensures strong and consistent crimping performance, providing secure and durable connections for various hydraulic hoses.
User-Friendly Design: The button control system simplifies operation, making it accessible for operators of varying skill levels.
This hydraulic hose crimping machine is perfect for industries requiring efficient and reliable hose assembly solutions.

Precautions before operation
1. When using the tube press for the first time, 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to check the

outer diameter of the crimped joint jacket. If 2 Inch Button Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

TECHNICAL DATA

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
