BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE

FY-CBK-51B DECRIPTION

Hydraulic Hose Pressing and Crimping Machines
3-Inch Hydraulic Hose Pressing Machine
Overview:
This versatile hydraulic hose pressing machine is designed to handle hoses up to 3 inches in diameter, providing robust performance for a variety of industrial applications.

Specifications:

Control System: Equipped with an advanced PLC (Programmable Logic Controller) for seamless automation and precise operation.
Power Options: Available in 5.5 kW, delivering reliable performance for moderate production needs.
Efficiency: Capable of processing up to 300 pieces per hour, making it suitable for smaller to medium-scale operations.
Key Features:

Quick Mould Change: Designed for rapid mould changes, allowing operators to efficiently switch between different hose sizes, significantly reducing downtime and increasing productivity.
Reliable Hydraulic System: Features a strong hydraulic mechanism that ensures consistent and secure pressing of hoses, adhering to industry standards for quality and durability.
Durable Construction: Built with high-quality materials to withstand continuous use in demanding environments.
3-Inch Hydraulic Hose Crimping Machine
Overview:
This high-efficiency hydraulic hose crimping machine is engineered for high-volume production, capable of handling hoses up to 3 inches in diameter.

Specifications:

Control System: Advanced PLC technology for automated control and monitoring.
Power: 7.5 kW, providing superior performance for high-demand crimping tasks.
Production Capacity: Processes up to 800 pieces per hour, ideal for large-scale operations.
Key Features:

Fast Mould Change System: Allows for swift transitions between crimping sizes, enhancing operational efficiency and flexibility.
Powerful Hydraulic Mechanism: Ensures precise and consistent crimping, producing secure connections that meet rigorous quality standards.
Robust Design: Constructed from premium materials, ensuring long-lasting durability and reliability in heavy use.
These hydraulic machines are perfect for businesses looking to improve their hose assembly processes while maintaining high standards of quality and efficiency.

Precautions before operation
1. When using the tube press for the first time, it should be crimped 20 to 30 times without load, and 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine can be used after observing that all parts are normal.
2. When using the pipe press in winter, 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.

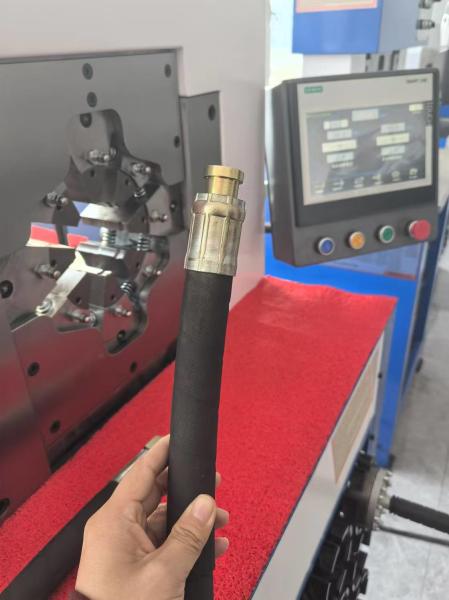

6. Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If 3 Inch PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/H With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5

kw Working Efficiency 800 Pieces/H Hydraulic Hose Crimping Machine does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

TECHNICAL DATA

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
