BIG ELBOW FITTINGS CBK-51B FLEXIBLE HOSE CRIMPER MACHINE

FY-CBK-51B DECRIPTION

2-Inch Hydraulic Hose Pressing and Crimping Machines
Hydraulic Hose Pressing Machine
Overview:
This hydraulic hose pressing machine is optimized for efficiency and versatility, specifically designed for 2-inch hoses. Ideal for a variety of industrial applications, it features advanced technology to enhance productivity.

Specifications:

Control System: Features a PLC (Programmable Logic Controller) for automated and precise operation.
Power: 5.5 kW, providing reliable performance for moderate production demands.
Production Capacity: Capable of processing up to 300 pieces per hour, making it suitable for small to medium-scale operations.
Key Features:

Fast Change Moulds: The machine is equipped with quick-change moulds, allowing for rapid transitions between different hose sizes and configurations. This feature minimizes downtime and maximizes production efficiency.
Efficient Hydraulic Mechanism: Utilizes a powerful hydraulic system that ensures consistent and secure pressing of hoses, meeting stringent industry quality standards.
Robust Design: Constructed with durable materials to withstand continuous operation, ensuring longevity and reliability in demanding environments.

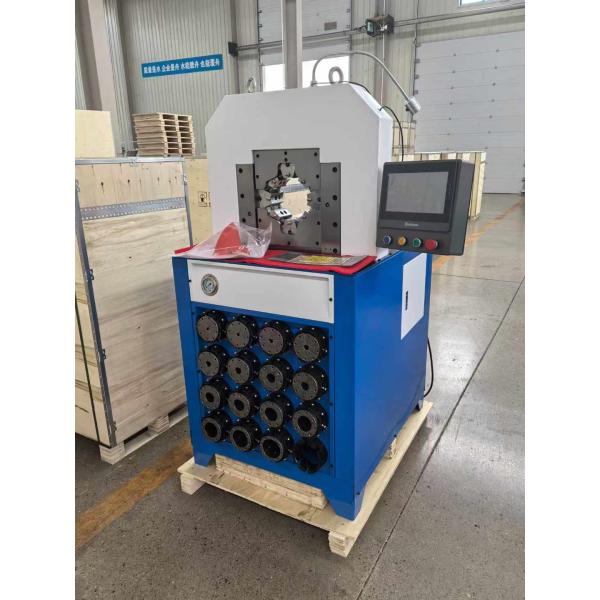

Hose Crimping Machine
Overview:
Designed for high-volume production, this hose crimping machine effectively handles 2-inch hoses, featuring advanced automation and powerful performance.

Specifications:

Control System: Advanced PLC control for seamless operation and monitoring.
Power: 7.5 kW, delivering exceptional performance for high-demand applications.
Production Capacity: Capable of crimping up to 800 pieces per hour, making it ideal for large-scale operations.
Key Features:

Quick Change Moulds: Engineered for fast mould changes, this machine allows operators to quickly adapt to different hose configurations, reducing downtime and enhancing flexibility.
High-Efficiency Hydraulic System: Built with a robust hydraulic system that ensures precise and reliable crimping, providing secure connections that meet rigorous industry standards.
Sturdy Construction: Designed with high-quality materials for durability and longevity, even in the most demanding production environments.
These hydraulic hose pressing and crimping machines are essential for businesses looking to optimize their production processes while ensuring top-quality hose assemblies.

Precautions before operation
1. When using the tube press for the first time, 2" PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/Hour With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/Hour Hose Crimping Machine Big Elbow should be crimped 20 to 30 times without load, and it can be used after observing that all parts are normal.
2. When using the pipe press in winter, 2" PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/Hour With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/Hour Hose Crimping Machine Big Elbow should be withheld for 20 to 30 times without load to increase the oil temperature.
3. Press the open button, after the mold base is opened, select the corresponding mold to install on the mold base according to the specifications of the hose to be crimped, and adjust the micrometer scale (see the crimping parameter table for details).
4. Place the hose with the joint in the proper position in the press head, so that the entire length is crimped at one time.
5. Press the crimping button to execute crimping operation, until the crimping head stops crimping and automatically opens the mold.
6. Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If 2" PLC Control Systerm 5.5kw Working Efficiency 300 Pieces/Hour With Fast Change Moulds Tools Hydraulic Hose Pressing Machine 7.5kw Working Efficiency 800 Pieces/Hour Hose Crimping Machine Big Elbow does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

TECHNICAL DATA

NOTE

- Customized die sets are available;

- Special voltage 110V/220V/380V/415V 50/60Hz are availbale;
