6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
Specifications
Brand Name :
FY
Model Number :
FY-51xk
Certification :
CE
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
USD$ 2250/2200/2150/2100
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
2-7 working days
Packaging Details :
wooden box
Gross Weight :
326kgs
Net Weight :
310kg
Power(w) :
4KW
Package Dimension :
830*720*1350 mm
Warranty :
1 Year
After-sales service provided :
Video technical support,Online support
Crimping force :
600Ton
Crimping range :
6-51mm
Color :
Blue,blue or customize
Application :
Crimp Hose
System pressure :
31.5MPA
Output Volume Of Pump :
10 L
Product Name :
2 Inch 6-51mm 10 dies New Model Hose Matching Dies Big Power 4 kw Working Efficiency Is 500 pieces Per Hour Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper
Description

2 Inch 6-51mm 10 dies New Model Hose Matching Dies Big Power 4 kw Working Efficiency Is 500 pieces Per Hour Portable Hose Crimping Machine Excavator Hose Press Tool Hydraulic Hose Crimper

DESCRIPTION

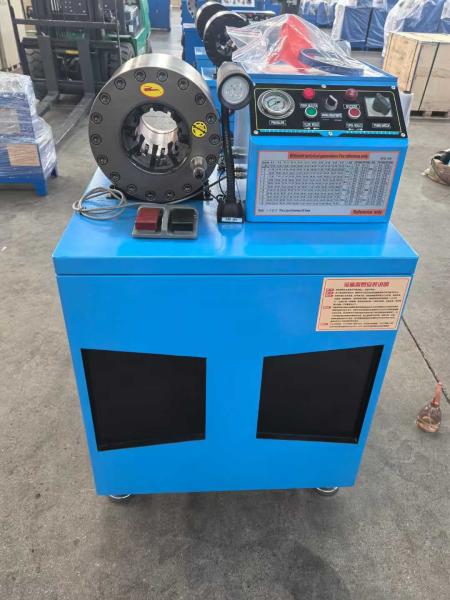

High-Performance Portable Hose Crimper

Introducing our new model, a powerful 4 kW portable hydraulic hose crimper designed for efficiency and versatility. This hydraulic hose crimper features 10 matching dies, accommodating hose sizes from 6 to 51 mm (2 inches). With a remarkable working efficiency of up to 500 pieces per hour, hydraulic hose crimper perfect for both professional and industrial applications. Ideal for excavator hoses and other hydraulic tasks, this hydraulic hose crimper combines portability with robust performance, making hydraulic hose crimper an essential tool for any workshop.

Our products have been widely used in various industries like engineering machinery,coal mines,chemicals, metallurgy,petroleum,automobile,shipbuilding,aviation and transport.

FY-51XK is a hose crimper for hydraulic high pressure flexible hose range from 1/4 inch to 2 inch one to six stainless steel wire braided or spiraled. It has three different operate mode, to meet customer different need.

MAIN ADVANTAGES

1. Big oil pump, efficient and long life

2. Multifunctional operate panel, easy to change between automatic and semi-auto

3. Pressure can be shown on the panel

4. Foot pedal as standard to make hands free

5. Working light to make crimping work more clear

crimping range/skiving range
6-51mm(1/4''-2''inner diameter of hose)
quantity of dies
10 sets
item diesNo. of
length 60mm(15,19,23,26)
Length 70mm(31,36,41)
Length 80mm(47,55,63)
accuracy
0.01mm
output volume of pump
10L
system pressure
31.5Mpa
motor power
4kw 1,2,3 phase (Optional)
voltage
220V/380V/415V(Customizable) 50/60Hz
crimping force
600T
work efficiency
500pcs/h
maximum open diameter
114mm
the max open tolerance
±30mm
package dimension
800*650*1230mm
machine dimension
830*720*1350mm
Net weight
310kg
Gross weight
326kg

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

TECHNICAL DATA

Model FY-51XK Hose Crimping Machine
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 30±mm
Die Sets 10

Maximum Open Diameter

 114MM
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)

Work Efficiency

 500 pcs/h
Standard Voltage

220v/240v/380v/415v(optional)
Motor Power 4(KW)
Length 800(mm)
Width 650(mm)
Height 1230(mm)
Weight 310(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- UC control;

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

► FOOT PEDAL SWITCH

Free hands for big hose, more convenient; Double usage, both closing and opening function

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

► HIGH QUALITY MOTOR

Copper wire aluminium motor, goof heat releasing

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

► SAFE DIE SET STORAGE

A box inside the machine body for storing the die sets

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper

► APPLICATIONS

6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper



6-51mm 10 Dies Hose Matching Dies 500 Pieces Per Hour Portable Hose Crimping Machine Hydraulic Hose Crimper
