Specifications
Brand Name :
FY
Model Number :
FY-DX68
Certification :
CE
Place of Origin :
China,Shanghai
MOQ :
1 set
Price :
USD$ 1800/1750/1700/1650
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
5-8 working days
Packaging Details :
wooden box
Voltage :
220V/240V/380V/415V(Optional)
Gross Weight :
280kgs
Net Weight :
265kg
Power(w) :
3KW/4KW,depend on client demand
Dimension(l*w*h) :
69*50*84 Cm
Package Dimension :
79*60*94 Cm
After-sales service provided :
Video technical support,Online support
Crimping force :
0.6M Ton
Product name :
220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine
Crimping range :
6-51mm,1/4''-2''
Color :
Yellow as photo
Application :
Crimp Hose
Free dies :
10sets
System pressure :
31.5MPA
Output Volume Of Pump :
2.5L/5L/10L
High Light :
2 Inch DX68 Hose Crimping Machine, Excavator Repair DX68 Hose Crimping Machine, 2 Inch Hose Crimping Machine
Description

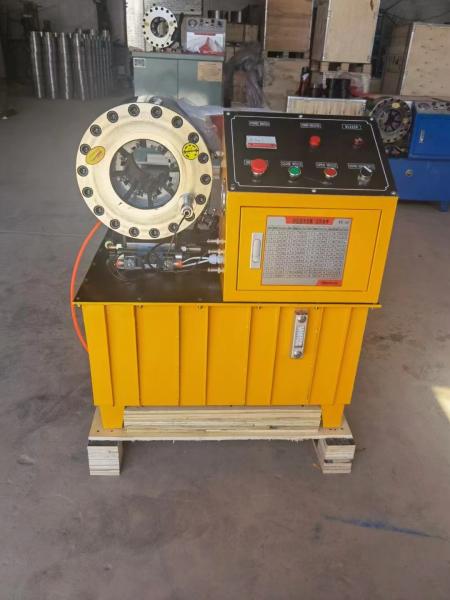

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

OUR FY-DX68 DESCRIPTION

Product Name: Hydraulic Hose Crimping Machine
Voltage Range: 220V - 415V
Color: Yellow
Crimping Capacity: 6 - 51 mm

Key Features:

  • Powerful Performance: Designed for high efficiency and durability, making it suitable for heavy-duty applications.
  • Wide Crimping Range: Capable of crimping hoses from 6 mm to 51 mm in diameter, accommodating various hose sizes.
  • User-Friendly Design: Engineered for ease of use and reliability in various industrial settings.

Take out the crimped hose assembly and use a vernier caliper to check the outer diameter of the crimped joint jacket. If it does not match the parameter table, fine-tune the micrometer scale until the crimping of the next hose meets the requirements.

FY-DX68 is a hot sale domestic design hose crimping machine based on DX68 series. It provide 600T crimping force, can be worked automatically or manually depends on different need. The hose crimping machine is offered with wheels, easy for move. With a foot pedal can make the hand free during crimping.

MAIN FEATURES

1. Forged crimping clylinder, high hardness;

2. Multifunctional operate panel, two operate mode;

3. Pressure Gauge, system shown clearly during crimping;

4. Foot pedal as standard to make hands free;

5. Working light to make crimping work more clear.

crimping range
6-51mm(1/4''-2''inner diameter of hose)
quantity of dies
10 sets
item diesNo. of
length 60mm(15,19,23,26)
Length 70mm(31,36,41)
Length 80mm(47,55,60)
accuracy
0.01mm
output volume of pump
2.5L/5L/10L(Optional)
system pressure
26Mpa/31.5Mpa(Optional)
motor power
3kw/4kw 1,2,3 phase (Optional)
voltage
220V/380V/415V(Customizable) 50/60Hz
crimping force
600T
work efficiency
200pcs/h
maximum open diameter
114mm
the max open tolerance
±30mm
machine dimension
730*480*740mm
package dimension
1070*640*1150mm
Net weight
245kg
Gross weight
260kg

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine




TECHNICAL DATA

Model FY-DX68 Hose Crimping Machine
Crimping Range 6-51(mm)
Crimping Force 600(T)
Hose Size 1/4-2(inch)
Max. Opening 30mm
Die Sets 10

Maximum Open Diameter

 114MM
System Pressure 31.5(Mpa)
Accuracy 0.01(mm)

Work Efficiency

 200 pcs/h
Standard Voltage 220(V)/380(V)
Motor Power 3(KW)/4(KW0
Length 730(mm)
Width 480(mm)
Height 740(mm)
Weight 245(KG)

NOTE

- for non standard die sets;

- Customized die sets are available;

- Special voltage 220V, 240V, 380V,415V are availbale;

OPTIONAL

- Quick Change Tool

- Quick Change Die Set Rack;

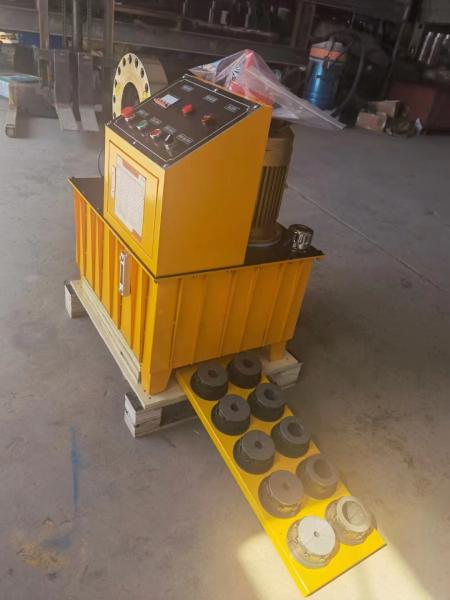

► DIE SETS WITH HIGH HARDNESS

10 sets dies for hose from 6mm to 51mm, hardness 59-63HRC

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

► WORKING LIGHT

Make crimping more safe and easy

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

► PEDAL SWITCH

Foot pedal is standard supplied, the advantage is it can free the hand, so even for big size crimping, crimping will be easy

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

► OEM SERVICE

Customized color and Customized outlook for hose crimping machine. OEM service available for all our machines.

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

220v-415v Yellow 6-51mm BIG POWERFUL HOSE CRIMPING MACHINE Hydraulic Hose Crimping Machine

► APPLICATION FIELD

The basic fucntion of a hose crimping machine is for crimping hose assembly, but a hose crimping machine can not only do rubber hose crimping, but can be used for quick jointing of other materials, like cables, low pressure water pipes, wires, ropes, automotive brake lines, etc.
