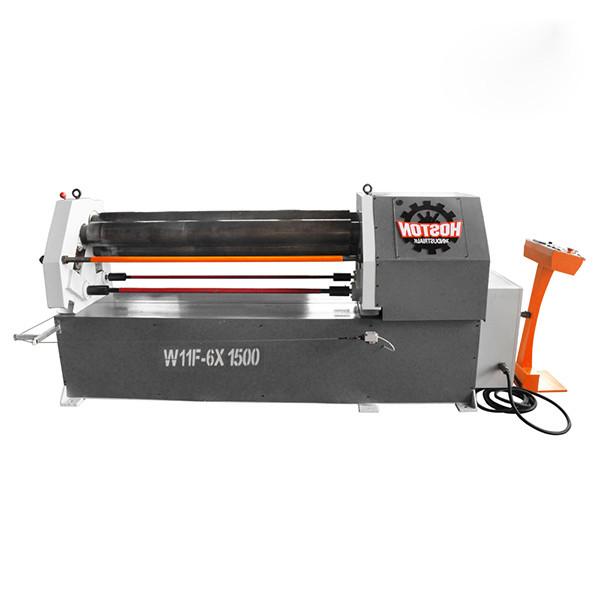

Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine
Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine
Specifications
Brand Name :
Hoston
Model Number :
W11F-6×1500
MOQ :
1
Max. bending thickness :
6mm
Max. bending width :
1500mm
Yield limit :
245mm
Top roller diameter :
150mm
Botton roller diameter :
150mm
Description

Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine

Benefits:

  • Economical: Cost-effective solution for various bending tasks.
  • Versatile: Handles a wide range of materials and shapes.
  • Efficient: Easy to operate and maintain with reliable performance.
  • Durable: Built to withstand rigorous industrial use.
W11F 3-Roller Mechanical Asymmetrical Plate Rolling Machine
Working Principle
Automatic 3 Roller Cnc Plate Rolling Machine Sheet / W11 6mm Metal Roller Bending Machine
Structure Style
The structure of this machine is 3 roller asymmetrical. Top roller and botton roller are all main drive roller. The botton roller lifting up and down to clamp the tight. Through the meshing between top roller gear and botton roller gear to drive the top roller. The side roller move titling to pre-bend the plate and circle. It's compact and easy to operate and maintain.

Model Max.Bending thickness(mm) Pre.Bending thickness(mm) Max.Bending width(mm) Yield limit(mm) Top roller diameter(mm) Bottom roller diameter(mm) Side roller diameter(mm) Main power
W11F-2*1000 2 2 1000 245 110 110 110 2.2
W11F-2*1500 2 2 1500 245 120 120 120 2.2
W11F-2*2000 2 2 2000 245 130 130 130 2.2
W11F-3*1000 3 3 1000 245 120 120 120 2.2
W11F-3*1500 3 3 1500 245 130 130 130 2.2
W11F-4*1000 4 4 1000 245 130 130 130 2.2
W11F-4*1500 4 4 1500 245 135 135 135 3
W11F-4*2000 4 4 2000 245 150 150 150 4
W11F-6*1000 6 6 1000 245 140 140 140 3
W11F-6*1500 6 6 1500 245 150 150 150 4
W11F-6*2000 6 6 2000 245 170 170 170 5.5
