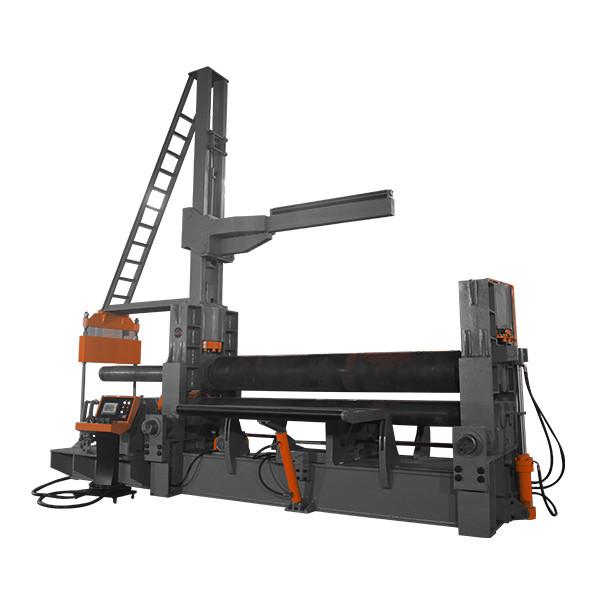

Bending Plate Rolling Machine Bending Roll Machine For Iron Steel Plate W11S-30×3000
Bending Plate Rolling Machine Bending Roll Machine For Iron Steel Plate W11S-30×3000
Specifications
Brand Name :
Hoston
Model Number :
W11S-30×3000
MOQ :
1
Max. bending thickness :
30mm
Max. bending width :
3000mm
Pre bending thickness :
25mm
Top roller diameter :
410mm
Botton roller diameter :
235mm
Description

Good Bending New Plate Rolling Machine Bending Roll Machine For Iron Steel Plate W11S-30×3000 W11S-30×3000

High-precision curling process: This equipment adopts a unique curling process to achieve the effect of continuous bending without back angle, and the bending process is fully digitally displayed to ensure the accuracy and stability of bending.

Automation and intelligent operation: The W11S plate rolling machine is equipped with a large-size LCD touch screen digital display and a human-machine dialogue control interface, making the operation more efficient and intuitive. At the same time, the equipment adopts EPS automatic electronic leveling technology to monitor and automatically adjust the level of the upper roller in real time to maintain the parallelism of the upper and lower rollers, further improving the accuracy and stability of the operation.

Performance features

  • The up roller is designed ad drum shape. Support roller install in the lower of bottom roller to help bending a perfect cylinder form thin to thick plate.
  • Special bending craft, high precision pre-bending of the edge, digital control for bending process.
  • Rich shape bend such ad0, U, R etc.
  • Cone bending device for conical bend easily.
  • Whole chassis, simple ground foundation, it's convenient to move the workplace.
  • According to the role or requirement of customer, economic digital display type or TNC digital control type is optional
  • CE certificate

Structure style

  • This machine is a special equipment to roll the plate into curve, cylinder, conical in the pricciple of three point circle. The action as below:
  • Top roller move by vertical. Power hydraulic oil tank. Role: put the pressure on the plate to make the plate bending deformation
  • Top roller move by horizontal. Power electromotor. Role:adjust the horizontal distance between the top and botton roller to make the top and botton position asymmetrical to pre bend the sheet edge and decline the length of the flat zone.
  • Bottom roller rotate. Power: electromotor. Role: supply the torque for bending plate.
  • Opening device drop down and reset. Power: hydraulic oil tanl. Role: take out the finished workpiece

Model Pressure of top roller(Tons) Max.Bending thickness(mm) Pre.Bending thickness(mm) Max.Bending width(mm) Top roller diameter(mm) Bottom roller diameter(mm) Center distance(mm) Main power
Dirve Hydraulic Movement
W11S-4*2500 25 4 3.5 2500 200 125 160 4 2.2 1.1
W11S-6*2500 30 6 5 2500 210 125 160 4 2.2 1.1
W11S-8*2000 37 8 6.5 2000 210 135 180 4 2.2 1.1
W11S-8*2500 37 10 6.5 2500 235 135 180 5.5 2.2 1.1
W11S-10*2000 37 10 8 2000 235 135 180 5.5 2.2 1.1
W11S-10*2500 55 10 8 2500 250 145 200 7.5 4 1.1
W11S-12*2000 65 12 10 2000 250 145 200 7.5 4 1.1
W11S-12*2500 75 12 10 2500 265 145 200 7.5 4 1.5

W11S-12*3000

 75 12 10 3000 290 150 245 11 4 1.5
W11S-16*2000 75 16 13 2000 265 150 245 7.5 4 1.5
W11S-16*2500 100 16 13 2500 300 165 270 15 5.5 1.5
W11S-16*3000 130 16 13 3000 330 180 300 15 5.5 2.2
W11S-20*2000 100 20 16 2000 300 165 270 15 5.5 1.5
W11S-20*2500 130 20 16 2500 330 180 300 15 5.5 2.2
W11S-20*3000 160 20 16 3000 380 200 330 18.5 7.5 2.2
W11S-20*4000 230 20 16 4000 440 235 380 30 11 4
W11S-25*2500 190 25 20 2500 380 220 360 22 7.5 4
W11S-25*3000 230 25 20 3000 410 235 380 30 11 4
W11S-25*4000 270 25 20 4000 490 250 400 30 11 4
W11S-30*2500 230 30 25 2500 410 235 380 30 11 4
W11S-30*3000 270 30 25 3000 450 250 400 30 11 4
W11S-30*4000 380 30 25 4000 550 275 460 45 22 5.5
W11S-35*2500 320 35 28 2500 450 250 400 30 11 4
W11S-35*3000 380 35 28 3000 510 275 460 45 22 5.5
W11S-40*2500 380 40 32 2500 500 275 460 45 22 5.5
W11S-40*3000 430 40 32 3000 540 290 500 55 22 7.5
W11S-40*4000 540 40 32 4000 630 340 610 55 22 11
W11S-45*3000 540 45 36 3000 590 340 610 55 22 11
W11S-50*2500 430 50 40 2500 580 290 500 55 22 7.5
