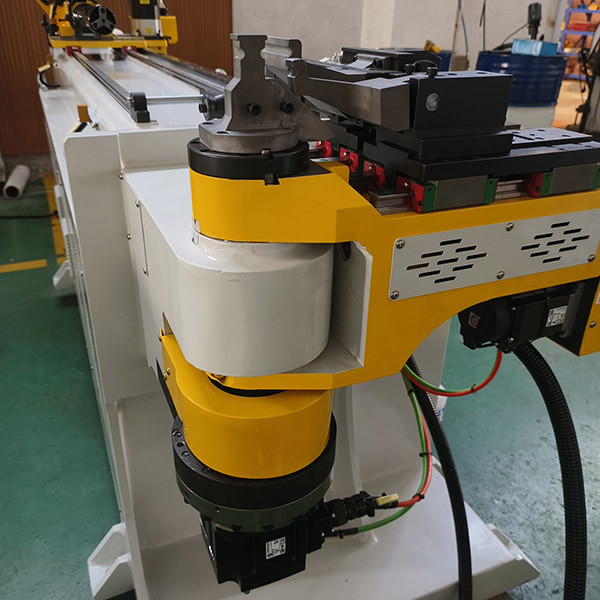

Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Steel Mandrel Cnc Hydraulic Pipe Bending Machine Rectangular Circular Aluminum Tube Bending Machine
Specifications
Brand Name :
Hoston
Model Number :
DW-18CNC-3A
MOQ :
1
Supply Ability :
100
Max. Tube o.d. Bneding Capacity :
18mm
Max. Tube Wall Thickness :
1mm
CLR Centerline Radius Range :
15-100mm
Max. Bending Angle :
190°
Max. Mandrel working Distance :
1000mm
Description

CNC 3D Iron Tube Pipe Bending Machine / Price Of Cnc Bender Machinery DW-10CNC-3A

Full-auto CNC type includes multi-axis, standard is Feeding Y axis by manual, Rotation B axis by manual, Bend C axis by Hydraulic or Servomotor, options can be choosen as per customer's product drawings such as multi-stacks for multi-radius one one tube or very short distance between bends, roll bending function for big radius, hydraulic & servomotor booster for 1D radius bending with good thickness reduction rate, punching hole, cutter installed on bending machine, right and left direction bending for complicated parts. CNC ypes pipe bending machine mostly used for one tube with more than two bends in three dimensional spaces. It is widely applied for following indystries: automobile parts (exhaust, bumper, muffler, engine pipeline, headrest), boiler, funiture (bed, chair, desk, table etc), gym fitness equipment, aviation parts, Train parts, motorbike parts (handlebar etc). CNC type pipe bending machine with high accuracy and mass production, which can greatly reduce cost of producers

Model
DW-10CNC-3A
Hydr Bend
DW-18CNC-3A
Hydr Bend
DW-18CNC-4A
Hydr Bend
Max. Tube o.d. Bneding Capacity 10mm 18mm 18mm
Max. Tube Wall Thickness 1.0mm 1.0mm 2.0mm
CLR Centerline Radius Range 5-30mm 15-100mm 15-100mm
Max. Bending Angle 190° 190° 190°
Max. Mandrel working Distance 1000mm 1000mm 1000mm
Processing Speed Tube Feeding Speed 1000mm/sec 900mm/sec 900mm/sec
Tube Roration Speed 720°/sec 540°/sec 540°/sec
Tube Bending Speed 120°/sec 90°/sec 90°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01° ±0.01°
Tube Bending Precision ±0.01° ±0.01° ±0.01°
Total Motor Power 2.5kw 7.0kw 7.5kw
Overall Weight 400kg 700kg 750kg

Hybrid CNC Pipe Bending Machine

PLC operation

1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.
Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.
Core pulling oil cylinder
1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function
