Specifications
Brand Name :
Hoston
Model Number :
DW-18CNC-3A
MOQ :
1
Supply Ability :
100
Max. Tube o.d. Bneding Capacity :
18mm
Max. Tube Wall Thickness :
1mm
CLR Centerline Radius Range :
15-100mm
Max. Bending Angle :
190°
Max. Mandrel working Distance :
1000mm
Description

PLC Control Electric 4 Inch Mandrel Pipe Bender / CNC Pipe Tube Bending Machine DW-18CNC-3A

  1. It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding.
  2. Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual, semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axes working simultaneously.
  3. One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PLC. In case of requirement it is also possible to integrate the PLC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PLC) and printed out.
  4. All parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
  5. CNC fully auto, have cubical space bending equipment, loading whole bending process is automatic.
  6. CE, ISO9001, SGS Certification for our Pipe bending machine

Model
DW-10CNC-3A
Hydr Bend
DW-18CNC-3A
Hydr Bend
DW-18CNC-4A
Hydr Bend
Max. Tube o.d. Bneding Capacity 10mm 18mm 18mm
Max. Tube Wall Thickness 1.0mm 1.0mm 2.0mm
CLR Centerline Radius Range 5-30mm 15-100mm 15-100mm
Max. Bending Angle 190° 190° 190°
Max. Mandrel working Distance 1000mm 1000mm 1000mm
Processing Speed Tube Feeding Speed 1000mm/sec 900mm/sec 900mm/sec
Tube Roration Speed 720°/sec 540°/sec 540°/sec
Tube Bending Speed 120°/sec 90°/sec 90°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01° ±0.01°
Tube Bending Precision ±0.01° ±0.01° ±0.01°
Total Motor Power 2.5kw 7.0kw 7.5kw
Overall Weight 400kg 700kg 750kg

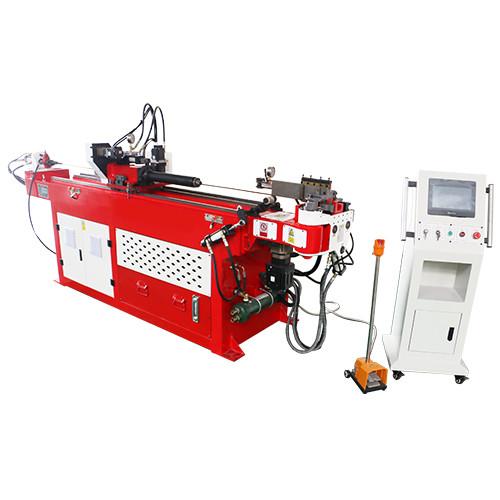

Hybrid CNC Pipe Bending Machine

PLC operation

1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.

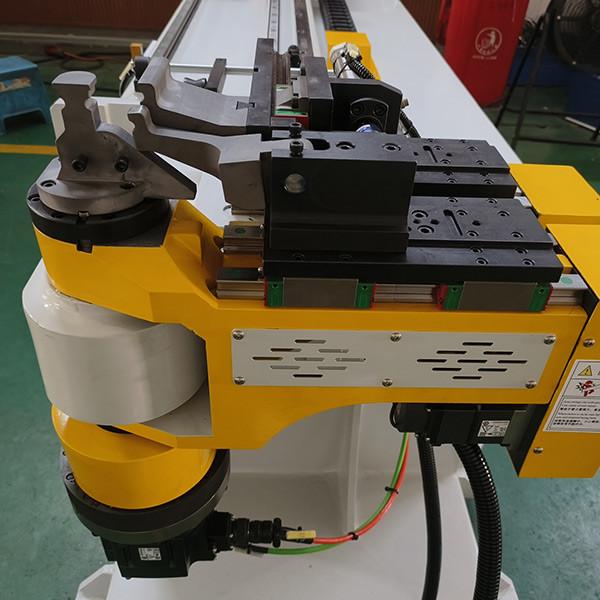

Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.

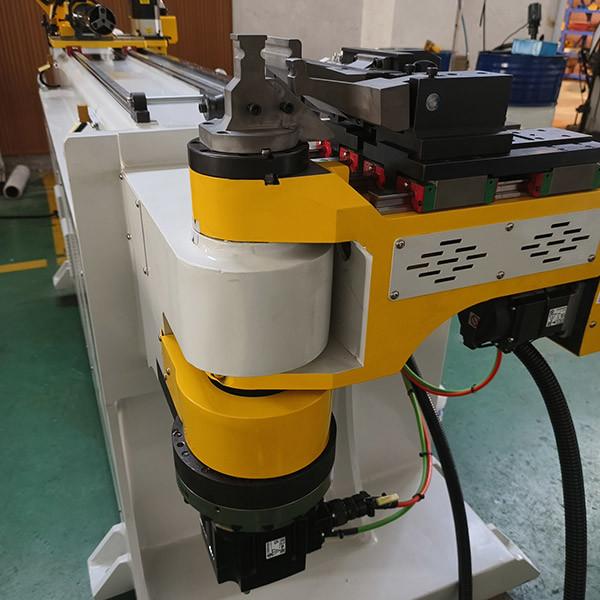

Core pulling oil cylinder
1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function
