Specifications
Brand Name :
Hoston
Model Number :
DW-50CNC-2A
MOQ :
1
Supply Ability :
100
Max. Tube o.d. Bneding Capacity :
50.8mm
Max. Tube Wall Thickness :
2.5mm
CLR Centerline Radius Range :
35-200mm
Max. Bending Angle :
190°
Max. Mandrel working Distance :
2600mm
Description

2.5 3 4 Inch Round Square Exhaust Mandrel Hydraulic Pipe Tube Bender Machine DW-50CNC-2A

  1. 2 Axes servo- motor controlled
  2. Economical type 3D bending with good repetition
  3. PLC System, easy to operate and maintenance; IPC System option, 3D Interference Inspection
  4. The Left-Turn and Right -Turn functions of 1-4 Layer Molds can be realized
  5. Japan Mitsubishi or Yaskawa Servo Drivers
  6. France Schneider Electric
  7. Taiwan Seven Ocean Hydraulic System

Model
DW-38CNC-2A
Hydr Bend
DW-50CNC-2A
Hydr Bend
Max. Tube o.d. Bneding Capacity 38.1mm 50.8mm
Max. Tube Wall Thickness 2.0mm 2.5mm
CLR Centerline Radius Range 25-180mm 35-200mm
Max. Bending Angle 190° 190°
Max. Mandrel working Distance 2300mm 2600mm
Processing Speed Tube Feeding Speed 750mm/sec 750mm/sec
Tube Roration Speed 320°/sec 320°/sec
Tube Bending Speed 55°/sec 45°/sec
Repeatability Tube Feeding Precision ±0.01mm ±0.01mm
Tube Roration Precision ±0.01° ±0.01°
Tube Bending Precision ±0.02° ±0.02°
Total Motor Power 7.0kw 8.5kw
Overall Weight 1500kg 1800kg

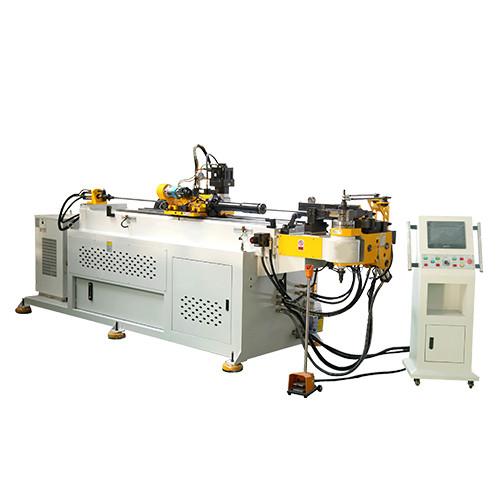

Hybrid CNC Pipe Bending Machine

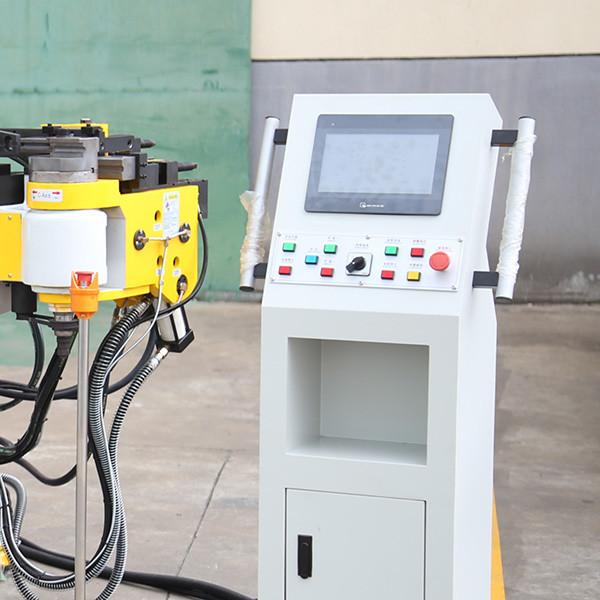

PLC operation
1.Touch screen display, CNC computer operation, can store 200 group memory；

2.The error message is displayed on the screen to help the operator clear it immediately.
Customizable molds
1. Customized mold can be used for different pipe fittings;
2. Multiple layers of dies can be stacked to achieve different bend radii on one tube.
Core pulling oil cylinder

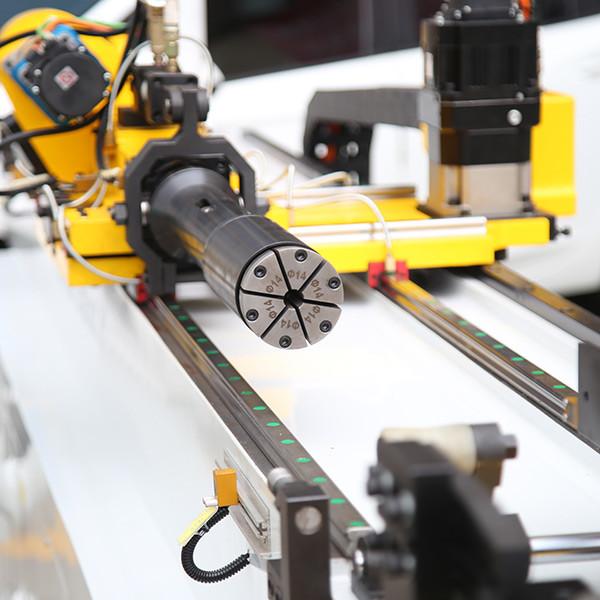

1. Feeding and rotation angle are controlled by servo, and the elbow is controlled by oil cylinder;
2 with slow bending, slow core pulling function
