CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine
Specifications
Brand Name :
Hoston
Model Number :
HBS-6-3200
Payment Terms :
L/C, T/T, D/A
Control System :
CNC
Maximum width of cut :
3200mm
Maximum cutting thickness :
6mm
Strength of plate :
450N/mm
Shear angle :
1.5°
Stroke number :
15
Description

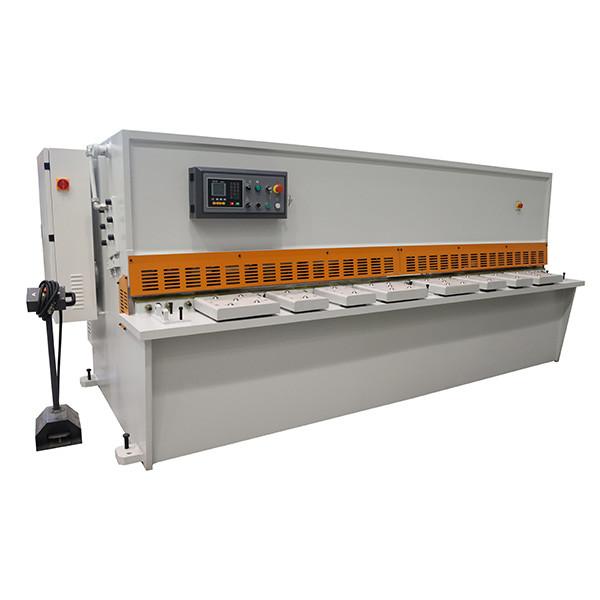

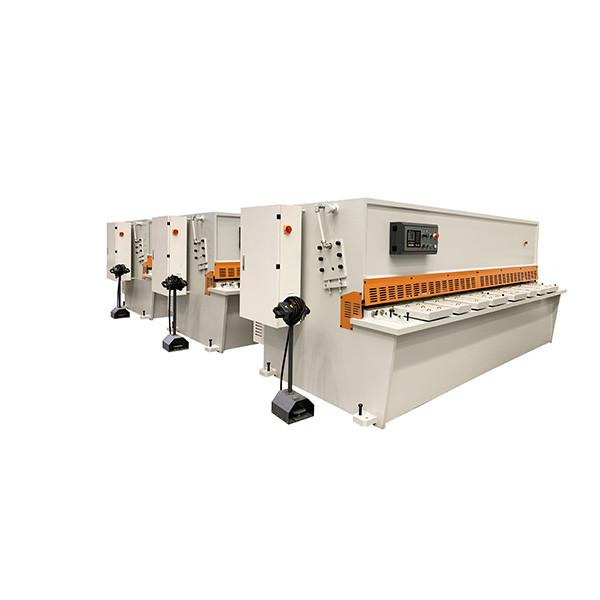

CNC Control System for Accurate Adjustments on Hydraulic Swing Beam Shearing Machine

The Hydraulic Swing Beam Shearing Machine is designed for high precision and efficiency in cutting sheet metal. Its robust hydraulic swing beam mechanism ensures smooth operation and accurate cuts, minimizing material deformation. With an advanced CNC control system, users can easily adjust cutting angles and gaps for various materials and thicknesses. The machine features a user-friendly touchscreen interface, enhancing operational flexibility. Additionally, it includes an automatic back gauge for precise positioning, along with support features like ball transfer tables and feeding arms for effortless material handling. This combination of technology and design makes it ideal for industrial applications requiring reliable and consistent cutting performance.

Model Unit 4×2500 4×3200 4×4000 6×2500 6×3200 6×4000 8×2500 8×3200 8×4000 10×2500
Maximum cutting thickness mm 4 4 4 6 6 6 8 8 8 10
Maximum width of cut mm 2500 3200 4000 2500 3200 4000 2500 3200 4000 2500
Strength of plate N/mm 450 450 450 450 450 450 450 450 450 450
Shear angle ° 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2
Stroke number min 22 19 17 18 15 13 14 12 10 11
Backgauge stroke mm 550 550 550 950 550 550 550 550 550 550
Main motor power KW 5.5 5.5 5.5 7.5 7.5 11 7.5 7.5 11 11
Overall dimension L*W*H mm

3020×1490

×1500

3720×1490

×1550

4520×1700

×1640

3030×1665

×1620

3730×1665

×1620

4530×1770

×1700

3040×1665

×1620

3740×1665

×1620

4530×1770

×1700

3050×1750

×1700

CNC Controller

CNC Controller Estun E21S/E200PS

  • Backgauge control (One side positioning)
  • Control for general AC motors, frequency inventer(Retract function)
  • Inteligent positioning(One key backup/restore of parameters)
  • Double programmable digital output
  • Stock counter(mm/Inch)
  • Program memory of up to 40 programs up to steps per program(Chinese/English)
Confugurations
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine

Sfety Fence

Left and right protective guard guarentees operation safety

Overall Welding

Intergal welding fornt workbench and machine body guarantees that there are no seam between front workbench vertical plate and bilateral vertical plates
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine

HIWIN Ball Screw

High precision backgauge is equipped with Taiwan HIWIN ball screw and polished rod.

Front Tables

Roller ball is installed on the arm with ruler can reduce the abrasion and feeder the machine easily and accurately
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine

Bosch Rexroch Valve

Germany Bosch Rexroch integrated hydraulic valveblock, hydraulic trasmission with high reliability, integrated hydraulic system can effectively alleviated problems caused by leakage of hydraulic fluid.

Blade Clearance Adjust

Adjust the cutting blade gap by motor according to thethickness of plate, which can get better cutting perfor-mance.
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine

Premium Backgauge

With high quality and precise bakgauge which is controller by servo motor

SCHNElDER Electrical components

High aulity electric parts can perform well even the electricity is not stable and customers can easily get the replace ment anywhere in the world.
CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine CNC Control System Accurate Adjustments on Hydraulic Swing Beam Shearing Machine

SUNNY Hydraulic Pump

American world famous brand for hydraulic pump per-forms well and provides qreat power for the whole hydraulic system.

SIEMENS Motor

German famous brand motor improves the lifespan of the machine and keeps the machione working in low noise environment.
