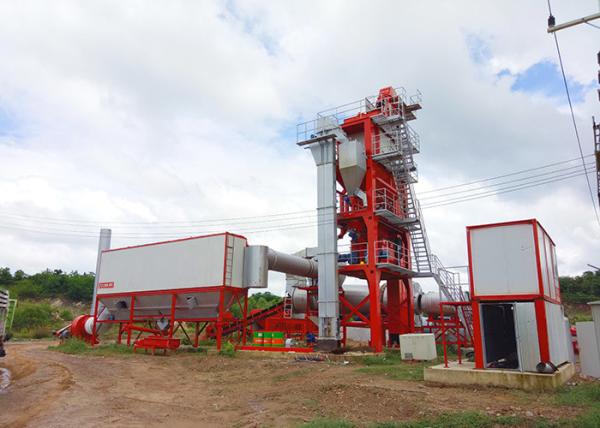

120t / H Red Stationary Asphalt Mixing Plant Simple Foundation 1 Year Warranty
120t / H Red Stationary Asphalt Mixing Plant Simple Foundation 1 Year Warranty
120t / H Red Stationary Asphalt Mixing Plant Simple Foundation 1 Year Warranty
120t / H Red Stationary Asphalt Mixing Plant Simple Foundation 1 Year Warranty
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-M120
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
5-10 working days after received the down payment
Packaging Details :
Our Asphalt Mixing Plant is packed by 40' containers.
Product name :
120t / h Red Stationary Asphalt Mixing Plant
Condition :
New
Warranty :
1 Year
Weight :
50-130t
Color :
Client's Customized
Control system :
PLC+colorized Touching Screen
Description

120t / h Red Stationary Asphalt Mixing Plant

Product description

Product Description

ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.

Main advantages:

• Cost effective solutions for your project

• Multi-fuel burner for choose

• Environmental protection, energy saving, safe and easy to operate

• Low maintenance operation & Low energy consumption & Low emission

• Optional environmental design - sheeting and clad to customers requirements

• Rational layout, simple foundation, easy to be installed and maintenance

Bitumen supply system

- The bitumen tank is sturdy and durable. Bitumen tanks of different sizes and capacities are available upon request. Bitumen tanks are covered with rock wool insulation and galvanized sheets to minimize heat loss.

- The bitumen tanks is heated by a heat conduction oil to ensure the temperature of the bitumen.

Technical parameters of 40-320tph Stationary Asphalt Mixing Plant

Items ZAP-S40 ZAP-S60 ZAP-S80 ZAP-S100 ZAP-S120 ZAP-S160 ZAP-S200 ZAP-S240 ZAP-S320
Plant Capacity 40t/h 60t/h 80t/h 100t/h 120t/h 160t/h 200t/h 240t/h 320t/h
Cold Aggregate Feeding System
Hopper capacity 4 x 4.5m3 4 x 4.5m3 4 x 6.5m3 4 x 6.5m3 4 x 8m3 5 x 8m3 5 x 15m3 5 x 15m3 6 x 15m3
Belt capacity 60t/h 80t/h 100t/h 120t/h 140t/h 180t/h 220t/h 280t/h 360t/h
Drying System
Drying drum size(mm) 1200x5200 1200x5500 1500x6600 1500x6600 1800x8000 1900x9000 2200x9000 2600x9500 2800x10200
Drying capacity 40-60t/h 60-70t/h 80-100t/h 100-120t/h 120-140t/h 160-180t/h 200-220t/h 240-260t/h 320-360t/h
Burner (oil) kg/h 70-300 100-400 60-600 100-1000 100-1000 140-1400 180-1800 180-1800 250-2500
Fuel consumption (oil) 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t
Mixing Tower
Screen 4 layer 4 layer 4 layer 4 layer 4 layer 4/5 layer 5 layer 5 layer 6 layer
Aggregate weighing 3x500kg 3x1000kg 3x1000kg 3x1500kg 3x1500kg 3x2000kg 3x3000kg 3x3000kg 3x5000kg
Bitumen weighing 3x100kg 3x100kg 3x100kg 3x200kg 3x200kg 3x200kg 3x500kg 3x500kg 3x500kg
Filler weighing 3x100kg 3x100kg 3x100kg 3x200kg 3x200kg 3x200kg 3x500kg 3x500kg 3x500kg
Mixer capacity 500kg 800kg 1000kg 1300kg 1500kg 2000kg 2500kg 3000kg 4000kg
Mixing cycle 45s 45s 45s 45s 45s 45s 45s 45s 45s
Dust Collecting System
Bag house filtering 200m2 300m2 430m2 480m2 550m2 650m2 700m2 1050m2 1350m2
Exhaust Fan power 18.5/22kw 30/37kw 45kw 55kw 2x45kw 2x55kw 2x75kw 2 x 90kw 2 x 110kw
Asphalt Temperature 140-180 ℃ 140-180℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃
Finished Asphalt Silo (Optional) 30 ton 30 ton 30 ton 60 ton 100 ton 100 ton 100/200 ton
Total Power -150kw -180kw -270kw -300kw -390kw -500kw -570kw -640kw -800kw

*Plant capacity is base on standard working condition as followings:

Atmospheric pressure 760mmHg
Ambient temperature 20℃
Material passing 40mm mesh 100%
Material passing 3mm mesh 40%
Material passing 74µm ≤7%
Aggregate temperature at discharging end of drum dryer 160℃
Density of aggregate 1650kg/m3
Specific heat of aggregate 0.21kcal/kg℃
Filler content 5%
Bitumen content 5%
Sand content ≤40%
Max.aggregate size ≤40mm
Average moisture of cold aggregates ≤5%
Cycle time per batch 45s
Diesel calorific value ≥10500Kcal/kg
Heavy oil calorific value ≥9850Kcal/kg
Nature gas calorific value ≥8000Kcal/Nm3
Coal calorific value ≥5500Kcal/kg

Customers visit

120t / H Red Stationary Asphalt Mixing Plant Simple Foundation 1 Year Warranty

Our Service

Perfect after-sales service system and all-round service network are the guarantee of ZOOMLINE to provide quality services. We company promotes product sales, technical service, hotline, promotion and after-sales service mainly by customer service department as complementary platform and by all levels service personnel of dealer.

ZOOMLINE Machinery adheres to service concept "everything for customers, creating value for customers, makes customers" demand as focus and achieves "exceed customer expectations, and beyond the industry standard" service goals with first-class speed, skills and attitude.
We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.

FAQ

Q1: Are you trading Company or Factory?

We are factory. We have been engaged in the production of asphalt machine for more than 30 years.

Q2: How to use this asphalt mixing plant?

As a professional asphalt mixing plant manufacturer,we have many professional engineers, they will go to clients' site for guiding the installation and test-running;also can teach you how to use the mixing plant properly.

Q3: Can you sent me some spare parts freely?

Generally speaking,we usually sent customers the wearing parts when shipping the product, but if you have a large order,we will consider to sent you some spare parts freely

Q4: What is the delivery time?

Usually can deliver within 35-40 work days

Q5: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union

Q6: Do you provide after-sale service?

Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
