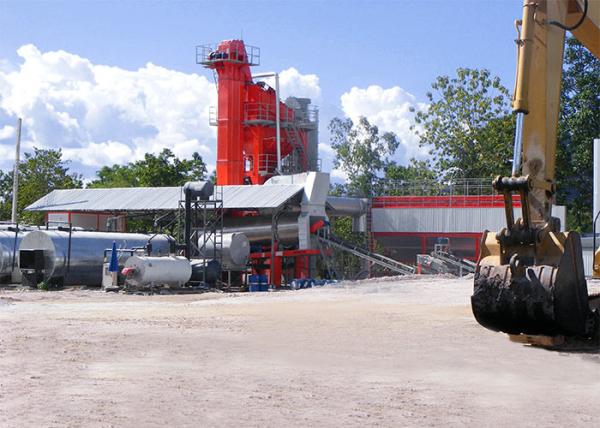

Stationary Batch Type Hot Mix Plant Heavy Duty Low Maintenance Operation
Stationary Batch Type Hot Mix Plant Heavy Duty Low Maintenance Operation
Stationary Batch Type Hot Mix Plant Heavy Duty Low Maintenance Operation
Stationary Batch Type Hot Mix Plant Heavy Duty Low Maintenance Operation
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-S160
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
5-25 working days after received the down payment
Packaging Details :
Our Asphalt Mixing Plant is packed by 40' containers.
Product name :
High-performance 160TPH Stationary Asphalt Mixing Plant
Capacity :
160t/h
Warranty :
1 Year
Condition :
Brand new
Color :
Client's Customized
Weight :
50-130t
Control system :
PLC+colorized Touching Screen
Mixing type :
Asphalt Batch Mix Plant
Description

High-performance 160TPH Stationary Asphalt Mixing Plant

Main advantages of 120t/h asphalt batch mix plant:
• Cost effective solutions for your project
• Multi-fuel burner for choose
• Environmental protection, energy saving, safe and easy to operate
• Low maintenance operation & Low energy consumption & Low emission
• Optional environmental design - sheeting and clad to customers requirements
• Rational layout, simple foundation, easy to be installed and maintenance

Technical parameters of 120tph batch asphalt mixing plant

Model ZAP-S120
Rated capacity(T/H) 120
Total power(kW) ≈500
Mixer volume(kg) 2000
Cold aggregtae kinds 5
Vibration screen Uniaxial circular vibrating screen
Mixing cycle 45S
Fuel consumption ≤6.5kg/t finished product
Fuel type Heavy/ Light oil
Control mode Manual/ Automatic
Finished product temperature 140-180°C
Aggregate weighting precision ±0.5%(Dynamic)
Mineral weighting precision ±0.5%(Dynamic)
Bitumen weighting precision ±0.25%(Dynamic)
Dust control way Primary cyclone dust collection , secondary bag dust collection
Exhaust emission concetration ≤20mg/Nm3
Finished product bin Bottom placed / side placed
Optional

Asphalt Plant capacity is base on standard working condition as followings:

Atmospheric pressure 760mmHg
Ambient temperature 20℃
Material passing 40mm mesh 100%
Material passing 3mm mesh 40%
Material passing 74µm ≤7%
Aggregate temperature at discharging end of drum dryer 160℃
Density of aggregate 1650kg/m3
Specific heat of aggregate 0.21kcal/kg℃
Filler content 5%
Bitumen content 5%
Sand content ≤40%
Max.aggregate size ≤40mm
Average moisture of cold aggregates ≤5%
Cycle time per batch 45s
Diesel calorific value ≥10500Kcal/kg
Heavy oil calorific value ≥9850Kcal/kg
Nature gas calorific value ≥8000Kcal/Nm3
Coal calorific value ≥5500Kcal/kg

FAQ

Q1: Are you trading Company or Factory?

We are factory. We have been engaged in the production of asphalt machine for more than 30 years.

Q2: How to use this asphalt mixing plant?

As a professional asphalt mixing plant manufacturer,we have many professional engineers, they will go to clients' site for guiding the installation and test-running;also can teach you how to use the mixing plant properly.

Q3: Can you sent me some spare parts freely?

Generally speaking,we usually sent customers the wearing parts when shipping the product, but if you have a large order,we will consider to sent you some spare parts freely

Q4: What is the delivery time?

Usually can deliver within 35-40 work days

Q5: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union

Q6: Do you provide after-sale service?

Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
