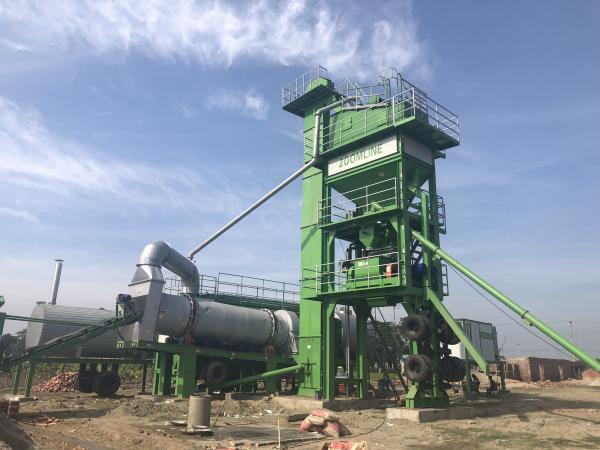

China Supplier Hot Mix Mobile Asphalt Station, 1000kg/Batch Mobile Asphalt Plant

The hot mix mobile asphalt station, 1000kg/batch mobile asphalt plant working condition:

Specially designed for the project which requires to regrading the aggregate to make sure the gradation of asphalt mixture and quality.

Having special requirements for quick assembly and disassembly, and easily transported to other working site.

Features of 80t/h mobile asphalt plant:

1. Modular design, super convenient fast move, installation
2. Screening, hot aggregate storage, weighing and etc. are all in a folding frame, implementation of the main building "a car haul"
3. Transport vehicles are less, base of installation without special treatment
4. Compact design, covering area is less
5. Accurate screening, weighing, forced mixing, finished product of high quality
6. International first-class control system, with functions of remote fault detection and maintenance
7. Each integration trailer are designed with "distributed" power distribution cabinet, all the connecting cable are connected before delivery, more convenient and safe.

80t/h mobile asphalt plant main components:

Cold Feed System---Mobile Type

Drying Drum---Mobile Type

Hot Elevator---Mobile Type

Mixing Tower---Mobile Type

Dust Collecting System---Mobile Type

Filler Supplying System---Mobile Type

Control Room (Mobile chassis is an optional)

Bitumen Heating and Supply System (Mobile chassis is optional)

Fuel oil Supplying System (Mobile chassis is optional)

Cold Feed System---Mobile Type Drying Drum---Mobile Type

Mixing Tower---Mobile Type Dust Collecting System---Mobile Type

Bitumen Heating and Supply System Control Room (Mobile chassis is an optional)

(Mobile chassis is optional)

Technical parameters of ZAP-M series mobile asphalt mixing plant:

Items	ZAP-M80	ZAP-M100		ZAP-M120		ZAP-M160
Plant Capacity	80t/h	100t/h		120t/h		160t/h
Cold Aggregate Feeding System
Hopper capacity	4 x 6.5m3	4 x 6.5m3		4 x 6.5m3		5 x8m3
Belt capacity	100t/h	120t/h		140t/h		180t/h
Drying System
Drying drum size	1500x6600mm		1500x6600mm	1800x8000mm	1900x9000mm
Drying capacity	80-100t/h		100-120t/h	120-140t/h	160-180t/h
Burner (oil)	60-600kg/h		100-1000kg/h	100-1000kg/h	140-1400kg/h
Fuel consumption (oil)	6.5-7kg/t		6.5-7kg/t	6.5-7kg/t	6.5-7kg/t
Mixing Tower
Screen	4 layer		4 layer	4 layer	4/5 layer
Aggregate weighing	3x1000kg		3x1500kg	3x1500kg	3x2000kg
Bitumen weighing	3x100kg		3x200kg	3x200kg	3x200kg
Filler weighing	3x100kg		3x200kg	3x200kg	3x200kg
Mixer capacity	1000kg		1300kg	1500kg	2000kg
Mixing cycle	45s		45s	45s	45s
Dust Collecting System
Bag house filtering	380m2		400m2	500m2	550m2
Exhaust Fan power	45kw		55kw	2x45kw	2x55kw
Asphalt Temperature	140-180 ℃		140-180 ℃	140-180 ℃	140-180 ℃
Finished Asphalt Silo (Optional)	30 ton		30 ton	30 ton	60 ton
