ZOOMLINE ZAP-S120 120T/H asphalt machinery (1500kg/batch asphalt mixing plant)

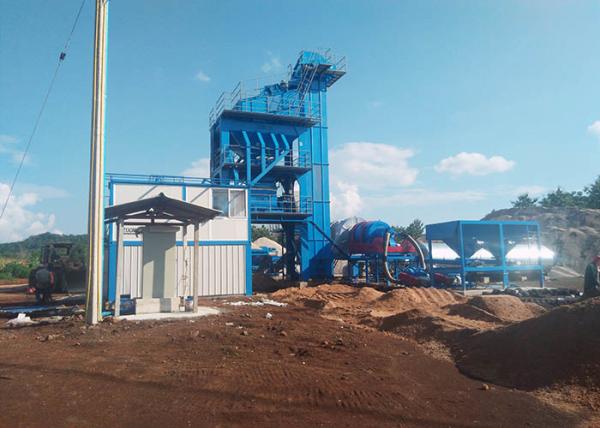

ZAP-S120 asphalt hot mix plant which are in service well for main high-way in Thailand. Our batch mix asphalt plant are very popular in Thailand because of the features as followings: High Efficiency, High Capacity, Low Energy Consumption, Low Emission, Low Failure Rate.

Main components of 120t/h batch mix asphalt plant

Cold Aggregate Feeding Bin

- Feeding control by frequency converter, automatic control to make feeding smoothly
- With alarming device for material shortage
- Adopt seamless belt, long service life

Drying Drum & Burning System

- Exclusive design of material blade, improve heating efficiency 30% than conventional design, energy saving
- Body and material blade adopt boiler iron, long service life
- 50mm thickness heat insulation layer, low heat loss
- “Butterfly” elastic connection plate design, avoid elastic cracking
- Italy EBICO oil/gas/coal burner: high combustion efficiency, saving energy and low emission
- HONEYWELL temperature control system, safe and easy operation

Mixing Tower

- Improved vibration and amplitude to optimize impact on the available screen
- All our screens have the largest screening area in their class
- The best combination of vibrating direction & screen box dip angle, ensure ratio and screening efficiency
- Adopt long arms and short shaft, and shallow structure, more compact
- Large sliding gate structure, discharge asphalt mixture speedy
- Mixing blade and scale board adopt wear-resistant alloy iron, long service life
- Bidirectional mixing blades, mix in 3D spaces, high mixing efficiency

Bitumen Storage & Heating System

- Electric/diesel/gas/coal powered heating type as optional for convenience of users
- QINGTIAN bitumen gear pump, long service life and low failure rate
- Integrated modular design, easy to transport

Dust Collecting System

- Gravity primary dust collector collecting and recycling bigger fine, saving consumption
- Bag house secondary dust collector control emission be lower than 20mg/Nm3, eco-friendly
- USA Dopont NOMEX filter bags, high temperature resistance and long service life
- Smart control of pulse dust removal system, removing dust clearly
- High temperature alarming and automatic cold air value unit, ensure safety of bags
- Dust humidification mixing machine to avoid dust flying
Control System

- Adopt Switzerland METTLER TELEDO weighing modular accurate weighing
- Adopt Germany FESTO cylinder & magnetic valve, long service life and low failure rate
- Germany SIEMENS electrical element, working stably
- Japan ORMON PLC and touch screen, with multi-language display, easy operation and control.

Technical parameters of ZAP-S120 batch mix asphalt plant:
