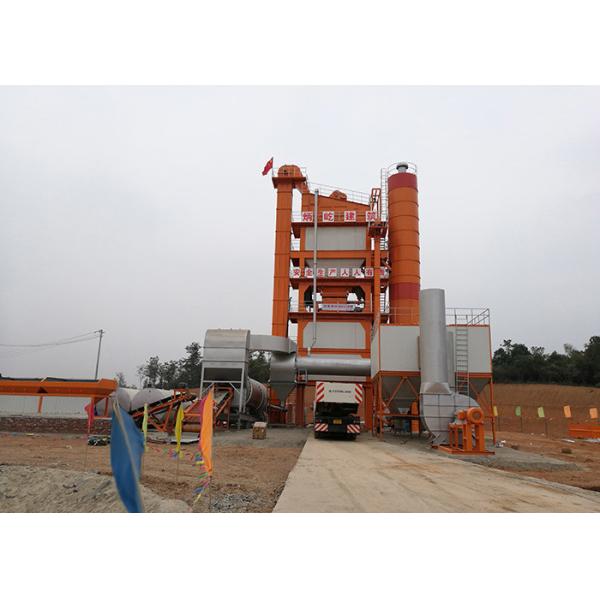

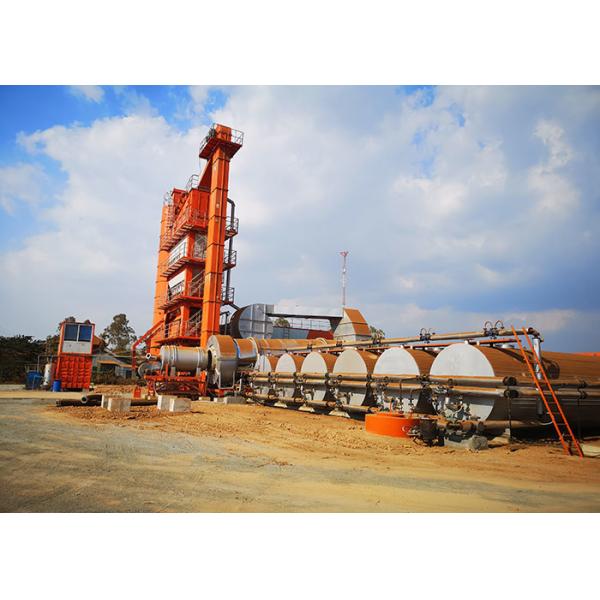

160t / h stationary asphalt mixing plant
160t / h stationary asphalt mixing plant
160t / h stationary asphalt mixing plant
160t / h stationary asphalt mixing plant
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-M160
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
5-20 working days after received the down payment
Packaging Details :
Our Asphalt Mixing Plant is packed by 40' containers.
Product name :
160t / h stationary asphalt mixing plant
Capacity :
160t/h
Warranty :
1 Year
Weight :
50-130t
Control system :
PLC+colorized Touching Screen
Condition :
New
Color :
Client's Customized
Operation :
Full Auto/Manual Operation
Description

160t / h stationary asphalt mixing plant for Best price

Product Description

Batch type asphalt mixing plant is designed by excellent structure which can make sure high quality asphalt mixture and high working performance. Batch type asphalt mixing plant comes from Europe, and adopted by China and many countries now. Main parts includes cold aggregate feeding system, drying drum, mixing tower, bitumen supply system, filler system, dust filtering system and control system.

160t / h stationary asphalt mixing plant

Technical parameters of 40-320tph batch asphalt mixing plant

Items ZAP-S40 ZAP-S60 ZAP-S80 ZAP-S100 ZAP-S120 ZAP-S160 ZAP-S200 ZAP-S240 ZAP-S320
Plant Capacity 40t/h 60t/h 80t/h 100t/h 120t/h 160t/h 200t/h 240t/h 320t/h
Cold Aggregate Feeding System
Hopper capacity 4 x 4.5m3 4 x 4.5m3 4 x 6.5m3 4 x 6.5m3 4 x 8m3 5 x 8m3 5 x 15m3 5 x 15m3 6 x 15m3
Belt capacity 60t/h 80t/h 100t/h 120t/h 140t/h 180t/h 220t/h 280t/h 360t/h
Drying System
Drying drum size

1200x5200

mm

1200x5500

mm

1500x6600

mm

1500x6600

mm

1800x8000

mm

1900x9000

mm

2200x9000

mm

2600x9500

mm

2800x10200

mm
Drying capacity 40-60t/h 60-70t/h 80-100t/h 100-120t/h 120-140t/h 160-180t/h 200-220t/h 240-260t/h 320-360t/h
Burner (oil)

70-300

kg/h

100-400

kg/h

60-600

kg/h

100-1000

kg/h

100-1000

kg/h

140-1400

kg/h

180-1800

kg/h

180-1800

kg/h

250-2500

kg/h
Fuel consumption (oil) 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t
Mixing Tower
Screen 4 layer 4 layer 4 layer 4 layer 4 layer 4/5 layer 5 layer 5 layer 6 layer
Aggregate weighing 3x500kg 3x1000kg 3x1000kg 3x1500kg 3x1500kg 3x2000kg 3x3000kg 3x3000kg 3x5000kg
Bitumen weighing 3x100kg 3x100kg 3x100kg 3x200kg 3x200kg 3x200kg 3x500kg 3x500kg 3x500kg
Filler weighing 3x100kg 3x100kg 3x100kg 3x200kg 3x200kg 3x200kg 3x500kg 3x500kg 3x500kg
Mixer capacity 500kg 800kg 1000kg 1300kg 1500kg 2000kg 2500kg 3000kg 4000kg
Mixing cycle 45s 45s 45s 45s 45s 45s 45s 45s 45s
Dust Collecting System
Bag house filtering 200m2 300m2 430m2 480m2 550m2 650m2 700m2 1050m2 1350m2
Exhaust Fan power 18.5/22kw 30/37kw 45kw 55kw 2x45kw 2x55kw 2x75kw 2 x 90kw 2 x 110kw
Asphalt Temperature

140-180

℃

140-180

℃

140-180

℃

140-18

0 ℃

140-180

℃

140-180

℃

140-180

℃

140-180

℃

140-180

℃
Finished Asphalt Silo (Optional) 30 ton 30 ton 30 ton 60 ton 100 ton 100 ton 100/200 ton
Total Power -150kw -180kw -270kw -300kw -390kw -500kw -570kw -640kw -800kw

BAG HOUSE FILTER
Eco-friendly

Gravity primary dust collector collecting and recycling bigger fine reduces consumption, saves consumption; Bag house secondary dust filter control emission is lower than 20mg/Nm3, which is eco-friendly.

High temperature resistance

Adopting USA DuPont NOMEX filter bags, high temperature resistance and long service life, and the filter bags can be replaced easily and quickly, no need for special tools.

Safety

Intelligent temperature and control system, when the dust air temperature is higher than set data, cold air valve will be opened automatically for cooling, avoiding the filter bags being damaged by high temperature.


Removing dust thoroughly

Adopting high voltage pulse cleaning technology contributes to a lower bag wearing, longer life span and better dust removal performance.

160t / h stationary asphalt mixing plant


160t / h stationary asphalt mixing plant
