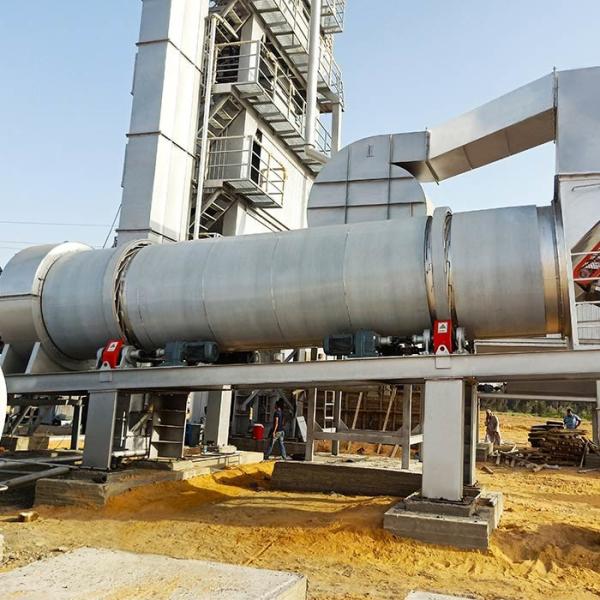

60tph 100tph Drum Drying Equipment For Hot Asphalt Plant
60tph 100tph Drum Drying Equipment For Hot Asphalt Plant
60tph 100tph Drum Drying Equipment For Hot Asphalt Plant
60tph 100tph Drum Drying Equipment For Hot Asphalt Plant
Specifications
Brand Name :
ZOOMLINE
Model Number :
T40-320
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10 sets per month
Delivery Time :
25-30 working days after received the down payment
Packaging Details :
Our Mobile Bitumen Mixing Plant is packed by 40' containers.
Product name :
Drying drum system for asphalt mixing plant
Atmospheric pressure :
760mmHg
Ambient temperature :
20℃
Heavy oil calorific value :
≥9850Kcal/kg
Nature gas calorific value :
≥8000Kcal/Nm3
Warranty :
1 Year
Description

Drying drum system for asphalt mixing plant

Product introduction :

Drying drum system is one of the core components of asphalt mixing plant, it use heat coming from the burner to heat cold aggregate containing water through heat exchange, it is aggregate dehydration, heating system components.

The performance of drying drum directly determine the production of a complete set of asphalt mixing plant, the quality of finished product, the reliability of a complete set of asphalt mixing plant.

The core parameter of drying drum is the heat exchange efficiency, it influence production of drying drum and equipment operation costs. Therefore, our company constantly improve the heat exchange efficiency of the drying drum, saves the energy consumption to a great extent for the customer to reduce customer’s use-cost.

60tph 100tph Drum Drying Equipment For Hot Asphalt Plant

Technical parameters of drying drum system :

Items Unit T40 T60 T80 T100 T120 T160 T240 T320
Capacity * tph 40 60 80 100 120 160 240 320
Drying drum diameter mm 1200 1500 1500 1500 1800 1900 2600 2800
Drying drum length m 5.2 6 6.6 6.6 8 8.5 9.5 10.2
Drive power kw 15 4 x 5.5 4 x 7.5 4 x 7.5 4 x 11 4 x 15 4 x 22 4 x 30
Insulation thickness mm 80 80 80 80 80 80 80 80

The thermal efficiency of drying drum system :

Core factors affecting the thermal efficiency of the drying drum is whether the drum can form complete and uniform material curtain. And the formation of material curtain is decided by the material blade’s structure and layout inside the drum. So design and layout of dry drum blade is a key element to affect the thermal efficiency of the drying cylinder.

Drying drum blade layout is generally consists of four areas that feed area, material curtain area, radioactive zone, discharge area.

About Us


60tph 100tph Drum Drying Equipment For Hot Asphalt Plant

FAQ

Q1: Are you trading Company or Factory?

We are factory. We have been engaged in the production of asphalt machine for more than 30 years.

Q2: How to use this asphalt mixing plant?

As a professional asphalt mixing plant manufacturer,we have many professional engineers, they will go to clients' site for guiding the installation and test-running;also can teach you how to use the mixing plant properly.

Q3: Can you sent me some spare parts freely?

Generally speaking,we usually sent customers the wearing parts when shipping the product, but if you have a large order,we will consider to sent you some spare parts freely

Q4: What is the delivery time?

Usually can deliver within 35-40 work days

Q5: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union

Q6: Do you provide after-sale service?

Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
