Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-S40-400
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
about 30-40 days
Packaging Details :
40HQ container
Product name :
Hot Road Construction Plant
Capacity :
40-320t/h
Mixing cycle :
45s
Power(kw) :
According to the capacity
Color :
Client's Customized
Warranty :
15 Months
Description

Highway Stationary Asphalt Mixing Plant Asphalt Production Plant

Product Description

ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.

Main advantages:

• Cost effective solutions for your project

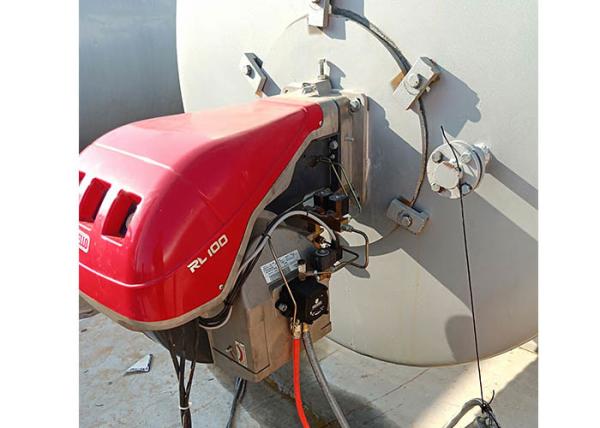

• Multi-fuel burner for choose

• Environmental protection, energy saving, safe and easy to operate

• Low maintenance operation & Low energy consumption & Low emission

• Optional environmental design - sheeting and clad to customers requirements

• Rational layout, simple foundation, easy to be installed and maintenance

Dust Collecting System

- Gravity type primary dust collector collects finer dust and saves consumption.

- The discharge of the secondary dust collector in the baghouse is less than 20mg/Nm3, which is environmentally friendly.

- Using the US Dopont NOMEX filter bags, it is resistant to high temperature and has a long service life. The filter bag can be replaced easily and without special tools.

- Intelligent temperature control system, when the dust temperature is higher than the set value, the cold air valve turns on the cooling automatically to avoid the filter bag being damaged by high temperature.

- Using high-pressure pulse cleaning technology, it is beneficial to reduce bag wear, prolong service life and improve dust removal performance.

Items ZAP-S40 ZAP-S60 ZAP-S80 ZAP-S100 ZAP-S120 ZAP-S160 ZAP-S200 ZAP-S240 ZAP-S320
Plant Capacity 40t/h 60t/h 80t/h 100t/h 120t/h 160t/h 200t/h 240t/h 320t/h
Dust Collecting System
Bag house filtering 200m2 300m2 430m2 480m2 550m2 650m2 700m2 1050m2 1350m2
Exhaust Fan power 18.5/22kw 30/37kw 45kw 55kw 2x45kw 2x55kw 2x75kw 2 x 90kw 2 x 110kw
Asphalt Temperature 140-180 ℃

140-180

℃

 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃
Finished Asphalt Silo (Optional) 30 ton 30 ton 30 ton 60 ton 100 ton 100 ton 100/200 ton
Total Power -150kw -180kw -270kw -300kw -390kw -500kw -570kw -640kw -800kw
