Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Professional Bitumen Production Plant Hot Mix Plant For Road Construction
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-S40-400
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
about 30-40 days
Packaging Details :
40HQ container
Product name :
Hot Road Construction Plant
Capacity :
40-320t/h
Mixing type :
Hot Batch Mixing
Power(kw) :
According to the capacity
Color :
Client's Customized
Warranty :
15 Months
Description

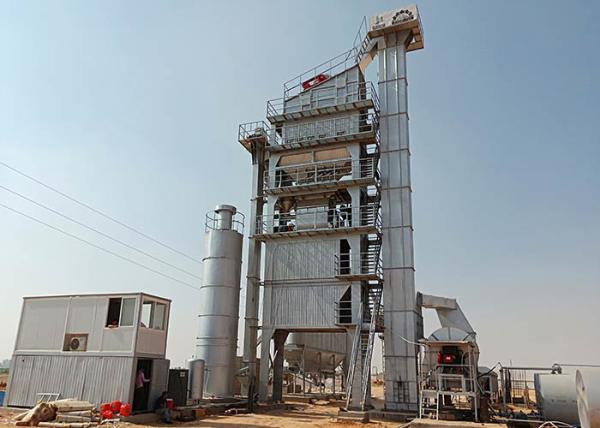

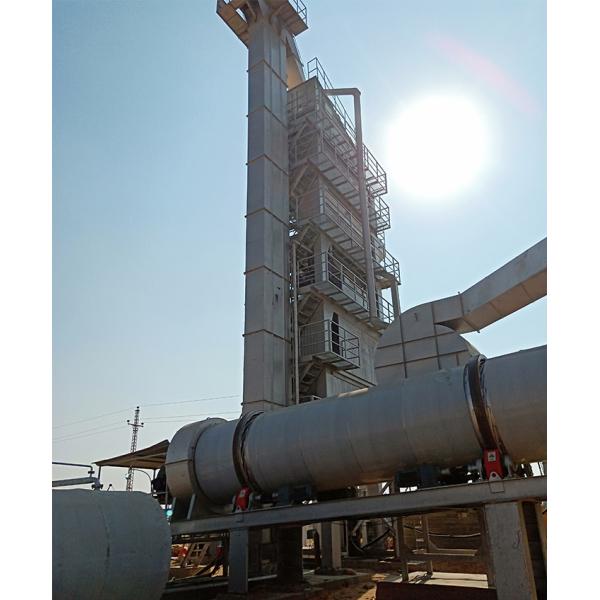

Hot Mixing Stationary Asphalt Mixing Plant Bitumen Production Plant

Product Description

ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.

Main advantages:

• Cost effective solutions for your project

• Multi-fuel burner for choose

• Environmental protection, energy saving, safe and easy to operate

• Low maintenance operation & Low energy consumption & Low emission

• Optional environmental design - sheeting and clad to customers requirements

• Rational layout, simple foundation, easy to be installed and maintenance

Vibrating screen

- Improve vibration and amplitude to optimize the impact on the available screen.

- A wear-resistant charging system with a uniform distribution of the particle mixture.

- Wide open door for easy access, simple screen replacement and reduced downtime.

- The best combination of vibration direction and screen box inclination ensures ratio and screening efficiency.

Weighing system

- Use the well-known brand TOLEDO weigh sensor to ensure accurate weighing and ensure the quality of asphalt mixture.

Mixing system

- The mixer is a three-dimensional hybrid design with an array of long arms, short shaft diameters and bidirectional mixing blades.

- The discharge process has been completely redesigned with minimal discharge time.

- The distance between the blade and the bottom of the mixer is also limited to the optimum minimum.

- Bitumen is sprayed from multi-points evenly over aggregate by one pressurized bitumen pump to achieve full coverage and high mixing efficiency.

Professional Bitumen Production Plant Hot Mix Plant For Road Construction

Technical parameters of 40-320tph Stationary Asphalt Mixing Plant

Items ZAP-S40 ZAP-S60 ZAP-S80 ZAP-S100 ZAP-S120 ZAP-S160 ZAP-S200 ZAP-S240 ZAP-S320
Plant Capacity 40t/h 60t/h 80t/h 100t/h 120t/h 160t/h 200t/h 240t/h 320t/h
Mixing Tower
Screen 4 layer 4 layer 4 layer 4 layer 4 layer 4/5 layer 5 layer 5 layer 6 layer
Aggregate weighing 3x500kg 3x1000kg 3x1000kg 3x1500kg 3x1500kg 3x2000kg 3x3000kg 3x3000kg 3x5000kg
Bitumen weighing 3x100kg 3x100kg 3x100kg 3x200kg 3x200kg 3x200kg 3x500kg 3x500kg 3x500kg
Filler weighing 3x100kg 3x100kg 3x100kg 3x200kg 3x200kg 3x200kg 3x500kg 3x500kg 3x500kg
Mixer capacity 500kg 800kg 1000kg 1300kg 1500kg 2000kg 2500kg 3000kg 4000kg
Mixing cycle 45s 45s 45s 45s 45s 45s 45s 45s 45s
