40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
40-320 Tph Batching And Mixing Plant 220V/380V 50Hz Easy To Operate
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-S40-400
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
about 30-40 days
Packaging Details :
40HQ container
Capacity :
40-320t/h
Mixer capacity :
500-4000kg/batch
Condition :
Brand new
Type :
Stationary, Batch mixing
Operation :
Auto & Manual
Voltage :
220V/380V-50Hz,to be confirmed

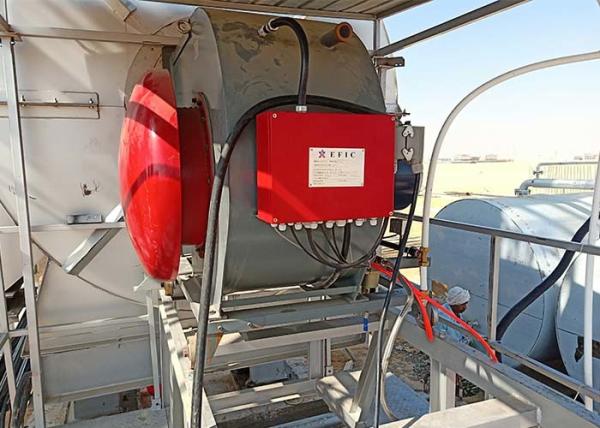

Burner :
EBICO, Italy or as needed
Electrical control :
SIEMENS or as needed
Color :
Client's Customized
Warranty :
12 Months
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
Description

40-320tph Stationary Asphalt Mixing Plant Asphalt road construction machine

Product Description

ZAP-S series Stationary Batch Asphalt Mixing Plant are available from 40TPH to 320TPH, and is most popular for its high output and high performance.

Main advantages:

• Cost effective solutions for your project

• Multi-fuel burner for choose

• Environmental protection, energy saving, safe and easy to operate

• Low maintenance operation & Low energy consumption & Low emission

• Optional environmental design - sheeting and clad to customers requirements

• Rational layout, simple foundation, easy to be installed and maintenance

Cold Aggregate Feeding System

- The belt feeder adopts frequency conversion speed regulation, wide speed regulation range and high work efficiency.

- Each discharge port has a material shortage alarm device, and if there is no material or arching, it will alarm automatically .

- There is a vibrator on the sand bin to ensure normal operation.

- A screen is placed on the top of the cold aggregate hopper to avoid large material input.

- The conveyor belt adopts a jointless round belt, which runs smoothly and has a long service life.

- There is a simple screen to avoid large material input in the input port of the feeding belt conveyor, ,which can improve thermal efficiency, and ensure the working reliability of the drying drum, hot aggregate elevator and vibrating screen.

Technical parameters of 40-320tph Stationary Asphalt Mixing Plant

Items ZAP-S40 ZAP-S60 ZAP-S80 ZAP-S100 ZAP-S120 ZAP-S160 ZAP-S200 ZAP-S240 ZAP-S320
Plant Capacity 40t/h 60t/h 80t/h 100t/h 120t/h 160t/h 200t/h 240t/h 320t/h
Cold Aggregate Feeding System
Hopper capacity 4 x 4.5m3 4 x 4.5m3 4 x 6.5m3 4 x 6.5m3 4 x 8m3 5 x 8m3 5 x 15m3 5 x 15m3 6 x 15m3
Belt capacity 60t/h 80t/h 100t/h 120t/h 140t/h 180t/h 220t/h 280t/h 360t/h
