Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-M40-160
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
USD 180,000-600,000/set
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
About 30-40 days after the advance payment or L/C.
Packaging Details :
40HQ container, standard shipping packages
Capacity :
40-160t/h
Type :
Mobile type, Batch mixing
Condition :
Brand new
Air emissions :
≤20mg/Nm3
Voltage :
220V/380V-50Hz,to be confirmed
Electrical control :
Germany SIEMENS
Burner :
Italy EBICO Coal/Oil/Gas type
PLC :
Japan ORMON
Weighing :
Switzerland TOLEDO
Cylinder :
Germany FESTO
Bag dust filter :
USA NOMEX Bag house filter
Warranty :
12 Months
After-sales service provided :
Engineers available to service overseas,Video technical support,Online support,Field installation,commissioning and training
Description

Brand New Batch Type Hot Mixing Plant 40-160tph Mobile Asphalt Plant For Road Construction

Product description

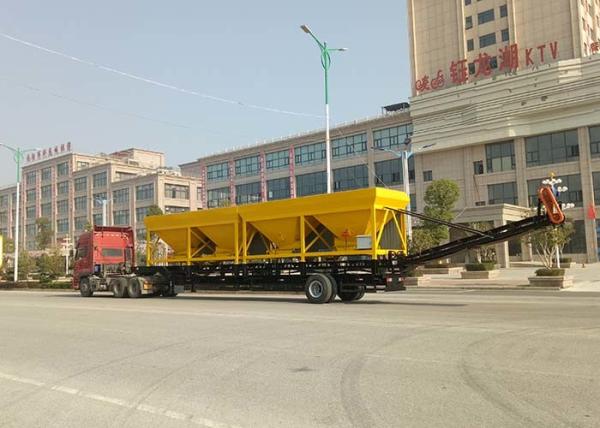

1. Mobile Cold Aggregate Feeding System
The aggregate feeding hoppers and aggregate collecting belt are mounted on one mobile chassis.
The belt feeder that adopts the frequency speed regulator has long speed range, so it runs smoothly and efficiently.
Each discharging gate of hopper has an alarm for the warning of no aggregate in the bins.
There is a vibrator on the wall of bin to avoid blockage.
On the top of each hopper there is a screen to prevent the entry of bigger aggregate, ensuring the reliability of system.

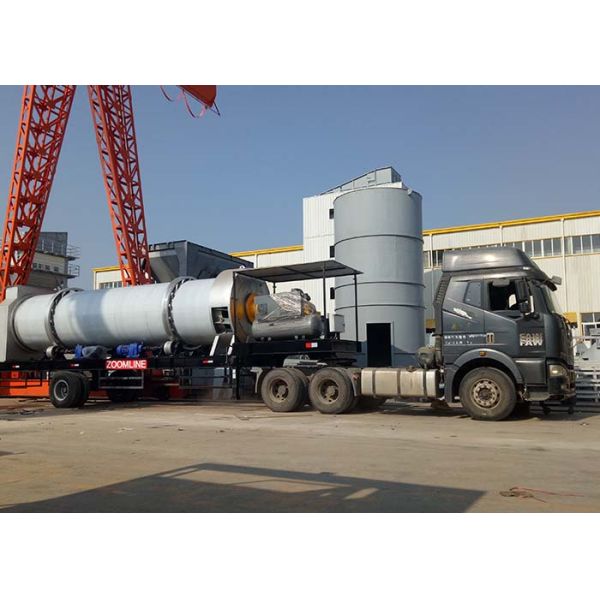

2. Mobile Drum Dryer with Oil Burner

The mobile drum dryer adopts 4 frictional wheels, which is drived by four synchronous motors. It runs smoothly with low noise.
The temperature of the dried aggregate directly influences the temperature of the final product; Drying efficiency directly influences the consumption of the fuel, thereby the reasonable structure is very important. We fully absorbed the abroad advanced technology of mixing and got satisfying effect and realized the anticipated object.

About the oil burner, we have international brand and domestic brand for you to choose.High Efficiency Hot Mix Mobile Plant 40-160 Tph Long Service Life Mobile Asphalt Mixing Plant

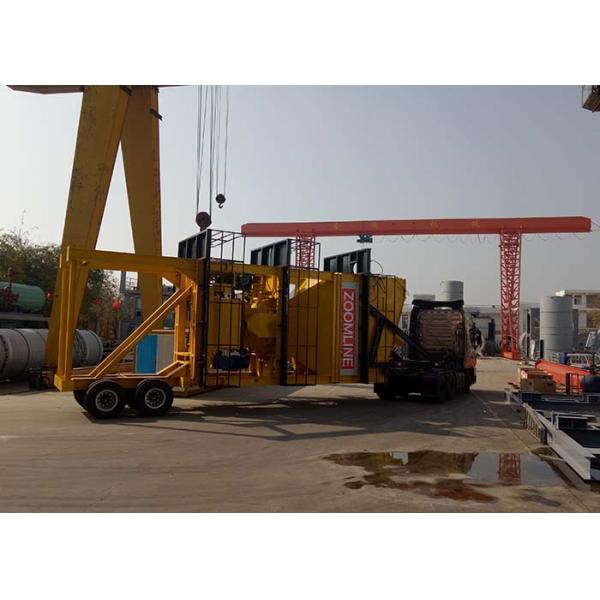

3. Mobile Mixing Tower
The mixing tower includes the vibration screen, hot aggregate storage bin and weighing hopper, asphalt mixer, bitumen weighing, filler weighing(option). All these parts are mounted on one trailer chassis. Easy for installation and transferring to other worksite after you finished project in one place.
The reducer for the mixer can be domestic brand or imported Germany NORD Brand.
The weighing sensors can be Mettler Toledo, USA brand or Chinese Taiwan brand: Airtac.High Efficiency Hot Mix Mobile Plant 40-160 Tph Long Service Life Mobile Asphalt Mixing Plant

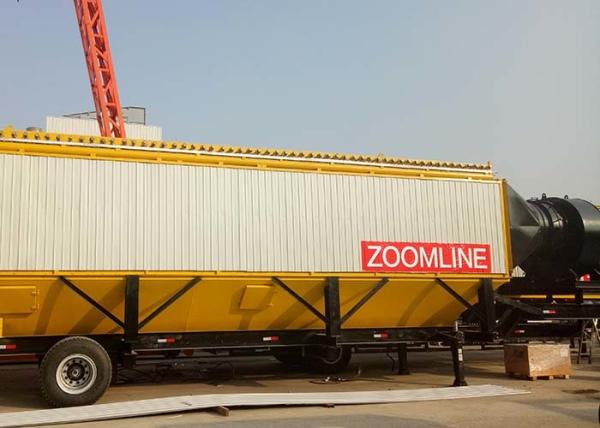

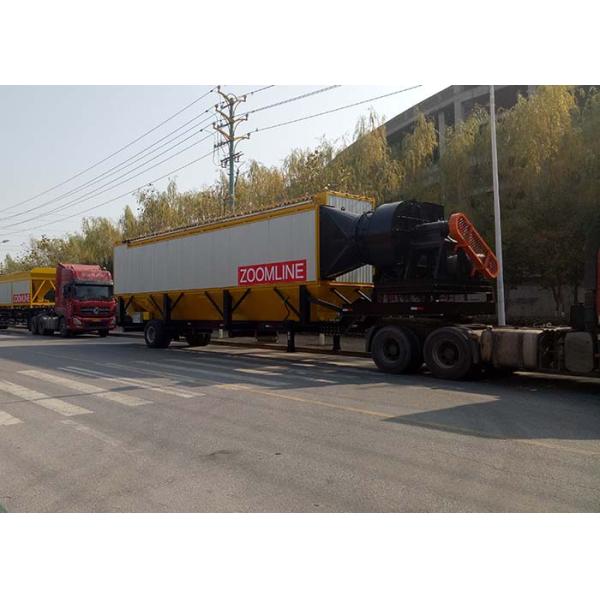

4. Mobile Bag House Dust Collector

This dust collecting system is equipped with primary gravity dust collector and secondary bag house dust collector. All the collected aggregate grain is conveyed to the hot aggregate elevator for recycling use.
The secondary dust collecting system bag house dust collector. The bags adopt high temperature resistance material. It can work under rated high temperature,it has long life-span and good ventilation. The efficiency of dust collector can reach up to more than 99%,which fully meet environment protection standard.

The collected filler can be recycling used. Of course, if you do not need, it can be discharged by screw conveyor.High Efficiency Hot Mix Mobile Plant 40-160 Tph Long Service Life Mobile Asphalt Mixing Plant

5. Mobile Control Room and Control System
The electric control system adopts advanced electric components (including products of Siemens, Schneider or Omron) which ensures the reliability of long performance. According to the order of start, the driving control wire sets the protecting lines, thus guarantees the reliability and safety of operation. The motor of the belt feeder in the batching process is controlled by frequency speed regulator, so the regulation precision is improved.
The control room and the diesel tank are mounted in the same chassis to make the full use of the chassis layout.
Technical parameters

Technical parameters of ZAP-M asphalt continuous plant:

Items ZAP-M80 ZAP-M100 ZAP-M120 ZAP-M160
Plant Capacity 80t/h 100t/h 120t/h 160t/h
Cold Aggregate Feeding System
Hopper capacity 4 x 6.5m3 4 x 6.5m3 4 x 6.5m3 5 x8m3
Belt capacity 100t/h 120t/h 140t/h 180t/h
Drying System
Drying drum size 1500x6600mm 1500x6600mm 1800x8000mm 1900x9000mm
Drying capacity 80-100t/h 100-120t/h 120-140t/h 160-180t/h
Burner (oil) 60-600kg/h 100-1000kg/h 100-1000kg/h 140-1400kg/h
Fuel consumption (oil) 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t
Mixing Tower
Screen 4 layer 4 layer 4 layer 4/5 layer
Aggregate weighing 3x1000kg 3x1500kg 3x1500kg 3x2000kg
Bitumen weighing 3x100kg 3x200kg 3x200kg 3x200kg
Filler weighing 3x100kg 3x200kg 3x200kg 3x200kg
Mixer capacity 1000kg 1300kg 1500kg 2000kg
Mixing cycle 45s 45s 45s 45s
Dust Collecting System
Bag house filtering 380m2 400m2 500m2 550m2
Exhaust Fan power 45kw 55kw 2x45kw 2x55kw
Asphalt Temperature 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃
Finished Asphalt Silo (Optional) 30 ton 30 ton 30 ton 60 ton
Total Power -270kw -300kw -390kw -500kw

*Plant capacity is base on standard working condition as followings:


Atmospheric pressure		 760mmHg
Ambient temperature 20℃
Material passing 40mm mesh 100%
Material passing 3mm mesh 40%
Material passing 74µm ≤7%
Aggregate temperature at discharging end of drum dryer 160℃
Density of aggregate 1650kg/m3
Specific heat of aggregate 0.21kcal/kg℃
Filler content 5%
Bitumen content 5%
Sand content ≤40%
Max.aggregate size ≤40mm
Average moisture of cold aggregates ≤5%
Cycle time per batch 45s
Diesel calorific value ≥10500Kcal/kg
Heavy oil calorific value ≥9850Kcal/kg
Nature gas calorific value ≥8000Kcal/Nm3
Coal calorific value ≥5500Kcal/kg
