Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-M80
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
USD200,000-300,000/set
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
10 sets per month
Delivery Time :
25-30 working days after received the down payment
Packaging Details :
Our ZAP-M80 Mobile Asphalt Mixing Plant is packed by 40' containers.
Condition :
Brand new
Capacity :
80t/h
Type :
Mobile type, Batch mixing
Air emissions :
≤20mg/Nm3
Voltage :
220V/380V-50Hz,to be confirmed
Electrical control :
Germany SIEMENS
Burner :
Italy EBICO Coal/Oil/Gas type
PLC :
Japan ORMON
Application :
Road Construction Industry
Color :
Customized
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training,Online support
Description

Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway

Product description

Mobile asphalt mixing plant

ZOOMLINE ZAP-M series Mobile Asphalt Mixing Plant is Based on quickly installation and easily transportation consideration,it features modular design and compact structure.


It is widely used for the construction of highway, bridge, and other infrastructure as well as suitable for daily road maintenance.

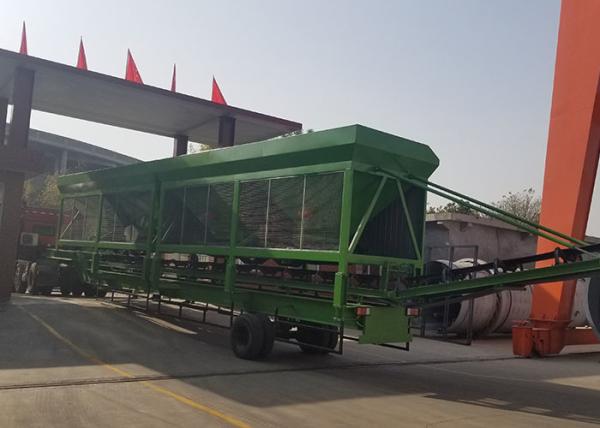

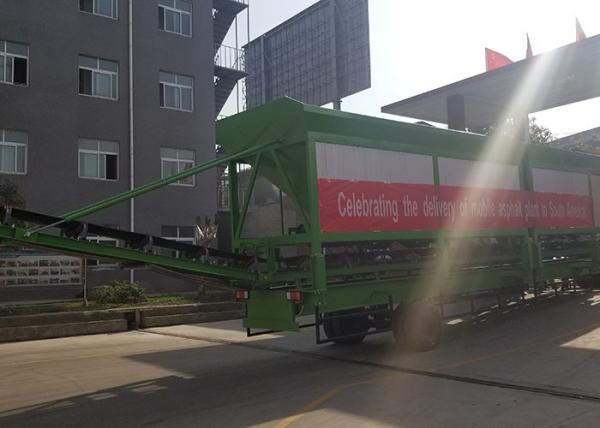

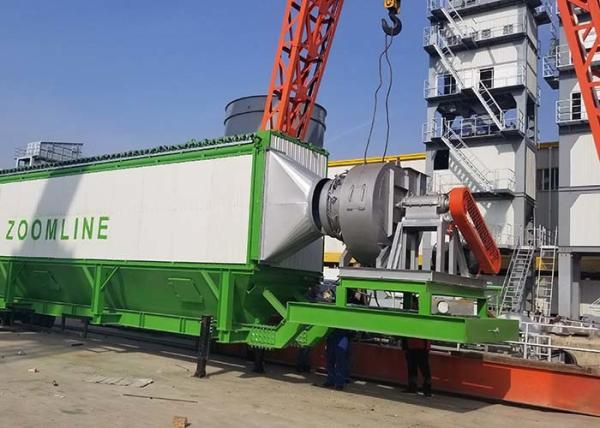

ZOOMLINE ZAP-M series mobile asphalt batch mixing plant mainly including : cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supplier system, bitumen supply system, electrical control system, finished asphalt storage bin.Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway

Main features of ZAP-M series mobile asphalt mixing plant

Features:

1, Mobile modular structure, easy and convenient for moving and installation;

2, high efficient energy saving aggregate heating system;

3, Adopted accurate measurement technology;

4, Innovative higly efficient mixing technology ;

5, Ergonomic automatic control system;

6, Emission meets environment protection requirements;

7, Stable and reliable, easy for maintenance;Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For HighwayCompact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway

Mobile asphalt mixing plant options

• Asphalt mixture storage silo (mobile/stationary as optional)
• Diesel, heavy oil, gas, coal or multi-fuel burners
• Filler system (mobile/stationary as optional)
• Bag house or water dust collector (mobile/stationary as optional)
• Fiber additive system
• Recycling asphalt plant
• Bitumen tank and control room (mobile/stationary as optional)

Technical parameters

Technical parameters of ZAP-M asphalt mixing plant:

Items ZAP-M80 ZAP-M100 ZAP-M120 ZAP-M160
Plant Capacity 80t/h 100t/h 120t/h 160t/h
Cold Aggregate Feeding System
Hopper capacity 4 x 6.5m3 4 x 6.5m3 4 x 6.5m3 5 x8m3
Belt capacity 100t/h 120t/h 140t/h 180t/h
Drying System
Drying drum size 1500x6600mm 1500x6600mm 1800x8000mm 1900x9000mm
Drying capacity 80-100t/h 100-120t/h 120-140t/h 160-180t/h
Burner (oil) 60-600kg/h 100-1000kg/h 100-1000kg/h 140-1400kg/h
Fuel consumption (oil) 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t 6.5-7kg/t
Mixing Tower
Screen 4 layer 4 layer 4 layer 4/5 layer
Aggregate weighing 3x1000kg 3x1500kg 3x1500kg 3x2000kg
Bitumen weighing 3x100kg 3x200kg 3x200kg 3x200kg
Filler weighing 3x100kg 3x200kg 3x200kg 3x200kg
Mixer capacity 1000kg 1300kg 1500kg 2000kg
Mixing cycle 45s 45s 45s 45s
Dust Collecting System
Bag house filtering 380m2 400m2 500m2 550m2
Exhaust Fan power 45kw 55kw 2x45kw 2x55kw
Asphalt Temperature 140-180 ℃ 140-180 ℃ 140-180 ℃ 140-180 ℃
Finished Asphalt Silo (Optional) 30 ton 30 ton 30 ton 60 ton
Total Power -270kw -300kw -390kw -500kw

*Plant capacity is base on standard working condition as followings:


Atmospheric pressure		 760mmHg
Ambient temperature 20℃
Material passing 40mm mesh 100%
Material passing 3mm mesh 40%
Material passing 74µm ≤7%
Aggregate temperature at discharging end of drum dryer 160℃
Density of aggregate 1650kg/m3
Specific heat of aggregate 0.21kcal/kg℃
Filler content 5%
Bitumen content 5%
Sand content ≤40%
Max.aggregate size ≤40mm
Average moisture of cold aggregates ≤5%
Cycle time per batch 45s
Diesel calorific value ≥10500Kcal/kg
Heavy oil calorific value ≥9850Kcal/kg
Nature gas calorific value ≥8000Kcal/Nm3
Coal calorific value ≥5500Kcal/kg
Company Information

Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.

Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway

Customers visit

Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway

Packaging and Shipping

Compact Structure 80t/H Mini Mobile Asphalt Mixing Plant For Highway

Our Service

Perfect after-sales service system and all-round service network are the guarantee of ZOOMLINE to provide quality services. We company promotes product sales, technical service, hotline, promotion and after-sales service mainly by customer service department as complementary platform and by all levels service personnel of dealer.

ZOOMLINE Machinery adheres to service concept "everything for customers, creating value for customers, makes customers" demand as focus and achieves "exceed customer expectations, and beyond the indust
