40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer
Specifications
Brand Name :
ZOOMLINE
Model Number :
ZAP-M80-160
Certification :
CE, ISO, EAC, EMC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 sets per month
Delivery Time :
about 30-40 days
Packaging Details :
40HQ container
Capacity :
40-160t/h
Type :
Mobile type, Batch mixing
Air emissions :
≤20mg/Nm3
Voltage :
220V/380V-50Hz,to be confirmed
Electrical control :
Germany SIEMENS
Burner :
Italy EBICO Coal/Oil/Gas type
Weighing :
Switzerland TOLEDO
Cylinder :
Germany FESTO
Bag dust filter :
USA NOMEX Bag house filter
Warranty :
12 Months
After-sales service provided :
Engineers available to service overseas,Video technical support,Online support,Field installation,commissioning and training
Description

Portable Hot Mix 40-160tph Mobile Asphalt Plant mobile asphalt mixing plant

Product description

Mobile asphalt mixing plant

ZAP-M seriesmobile force series asphalt mixing equipment is on the basis of many years of experience in the production of small mixer, especially most of similar products at the present time: standard production conditions, the high cost of fuel, exhaust temperature high enough, not whole mobile defects, such as new design after market feedback, specific the following technical characteristics:

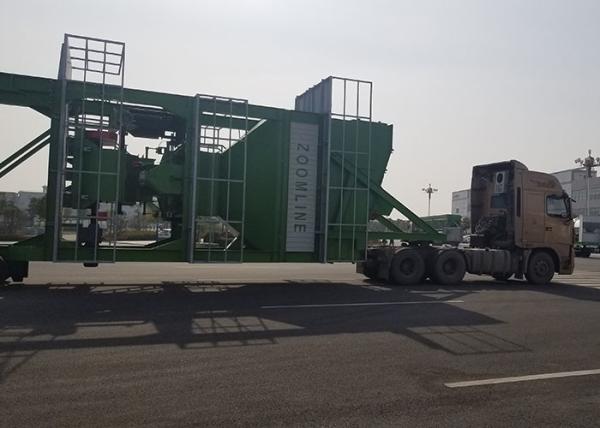

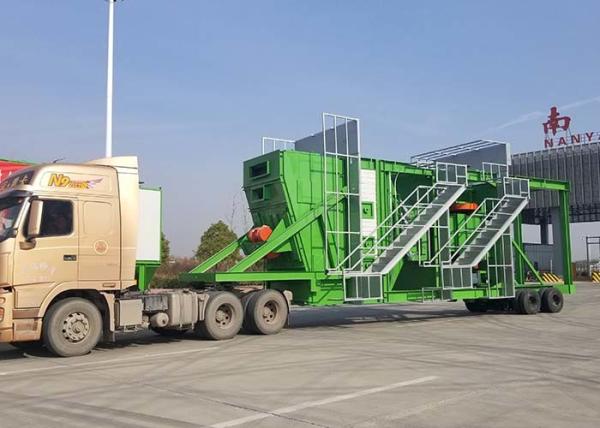

1. Good mobility.The towed chassis integrates the mixing main engine and the finished product bin, and the cold batching station also adopts the towed form to realize the whole machine's full movement.


2. High combustion efficiency.Select the special burner of high quality and famous brand, optimize the design of combustion furnace, high combustion efficiency, low fuel consumption;
3. Strong reliability.The program control and electronic weighing are closely combined to give full play to the powerful function of PLC, so as to achieve good stability of the weighing system, small fluctuation of discharge temperature and high reliability.
4. Good dust removal effect.Volute dust removal and specially designed dust removal channel further reduce the exhaust temperature, matching with the optional bag dust remover, does not burn out the bag, dust emission can meet the requirements of environmental protection;
5. Double horizontal axis agitator redesigned by Italian technology, with large capacity, high mixing efficiency and long service life;
6. High production efficiency.The newly designed drying drum with data model technology gets rid of the bondage derived from the cement mixing drum, and the drying capacity is further improved to ensure the rated output.

40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer

Mobile asphalt mixing plant options

• Asphalt mixture storage silo (mobile/stationary as optional)
• Diesel, heavy oil, gas, coal or multi-fuel burners
• Filler system (mobile/stationary as optional)
• Bag house or water dust collector (mobile/stationary as optional)
• Fiber additive system
• Recycling asphalt plant
• Bitumen tank and control room (mobile/stationary as optional)

Technical parameters

Technical parameters of ZAP-M asphalt continuous plant:

Items

ZAP-M80

ZAP-M100

ZAP-M120

ZAP-M160

Plant Capacity

80t/h

100t/h

120t/h

160t/h

Cold Aggregate Feeding System

Hopper capacity

4 x 6.5m3

4 x 6.5m3

4 x 6.5m3

5 x8m3

Belt capacity

100t/h

120t/h

140t/h

180t/h

Drying System

Drying drum size

1500x6600mm

1500x6600mm

1800x8000mm

1900x9000mm

Drying capacity

80-100t/h

100-120t/h

120-140t/h

160-180t/h

Burner (oil)

60-600kg/h

100-1000kg/h

100-1000kg/h

140-1400kg/h

Fuel consumption (oil)

6.5-7kg/t

6.5-7kg/t

6.5-7kg/t

6.5-7kg/t

Mixing Tower

Screen

4 layer

4 layer

4 layer

4/5 layer

Aggregate weighing

3x1000kg

3x1500kg

3x1500kg

3x2000kg

Bitumen weighing

3x100kg

3x200kg

3x200kg

3x200kg

Filler weighing

3x100kg

3x200kg

3x200kg

3x200kg

Mixer capacity

1000kg

1300kg

1500kg

2000kg

Mixing cycle

45s

45s

45s

45s

Dust Collecting System

Bag house filtering

380m2

400m2

500m2

550m2

Exhaust Fan power

45kw

55kw

2x45kw

2x55kw

Asphalt Temperature

140-180 ℃

140-180 ℃

140-180 ℃

140-180 ℃

Finished Asphalt Silo (Optional)

30 ton

30 ton

30 ton

60 ton

Total Power

-270kw

-300kw

-390kw

-500kw

*Plant capacity is base on standard working condition as followings:


Atmospheric pressure

760mmHg

Ambient temperature

20℃

Material passing 40mm mesh

100%

Material passing 3mm mesh

40%

Material passing 74µm

≤7%

Aggregate temperature at discharging end of drum dryer

160℃

Density of aggregate

1650kg/m3

Specific heat of aggregate

0.21kcal/kg℃

Filler content

5%

Bitumen content

5%

Sand content

≤40%

Max.aggregate size

≤40mm

Average moisture of cold aggregates

≤5%

Cycle time per batch

45s

Diesel calorific value

≥10500Kcal/kg

Heavy oil calorific value

≥9850Kcal/kg

Nature gas calorific value

≥8000Kcal/Nm3

Coal calorific value

≥5500Kcal/kg

Company Information

Henan ZOOMLINE Machinery CO., Ltd is a professional supplier of asphalt mixing plant and support equipments that draws on years' experiences and technology developments.

40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer

Customers visit

40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer

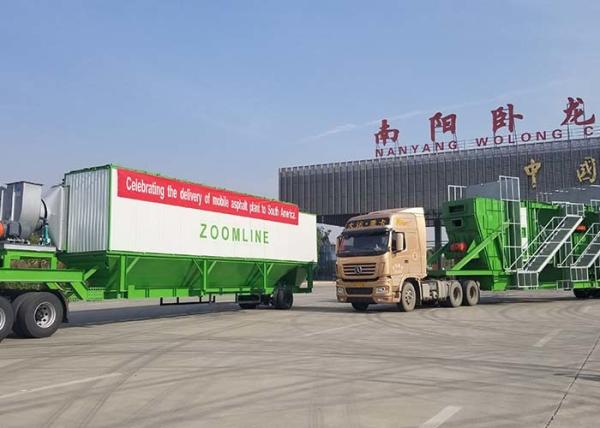

Packaging and Shipping

40-160 tph Mobile Asphalt Mixing Plant 220V/380V Portable Asphalt Mixer

Our Service

Perfect after-sales service system and all-round service network are the guarantee of ZOOMLINE to provide quality services. We company promotes product sales, technical service, hotline, promotion and after-sales service mainly by customer service department as complementary platform and by all levels service personnel of dealer.

ZOOMLINE Machinery adheres to service concept "everything for customers, creating value for customers, makes customers" demand as focus and achieves "exceed customer expectations, and beyond the industry standard" service goals with first-class speed, skills and attitude.
We guarantee to provide technical support to users in the whole working life of the ZOOMLINE equipment.
