Specifications
Brand Name :
Beihai Galvanizing
Model Number :
Non-standard
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
No limit
Delivery Time :
10-120 working days
Packaging Details :
Like wooden box, suit for shipping and lifting
Size :
Customized
Color :
White
Material :
Ceramic fiber
Usage :
Filling materials
Quality :
ISO9001-2000, ISO14001-1996
Advantage :
Fire-resistant and Thermal Insulation
Description

Ceramic fiber fire-proof product Thermal insulation filling material Hot Dip Galvanizing Furnace

Product

  • Ceramic fiber fire-proof product
  • Ceramic fiber bulk
  • Ceramic fiber blanket
  • Ceramic fiber board
  • Ceramic fiber paper
  • Ceramic fiber folded module

Product Application

  • Materials of the Ceramic Fiber Blanket and Board
  • Materials of the Ceramic Fiber Textiles

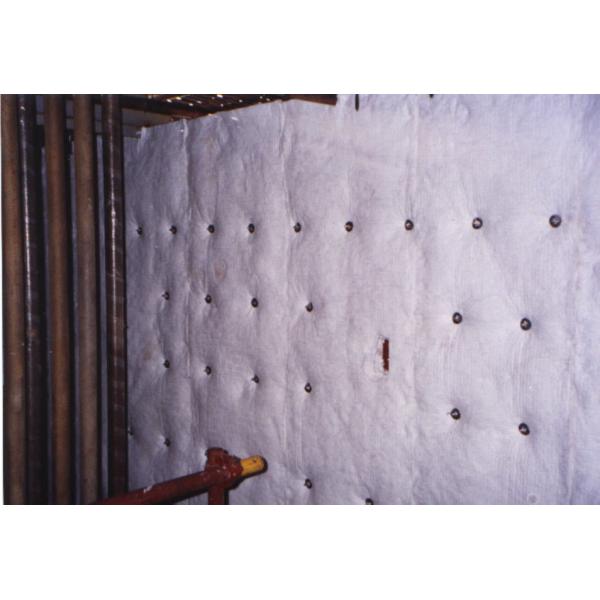

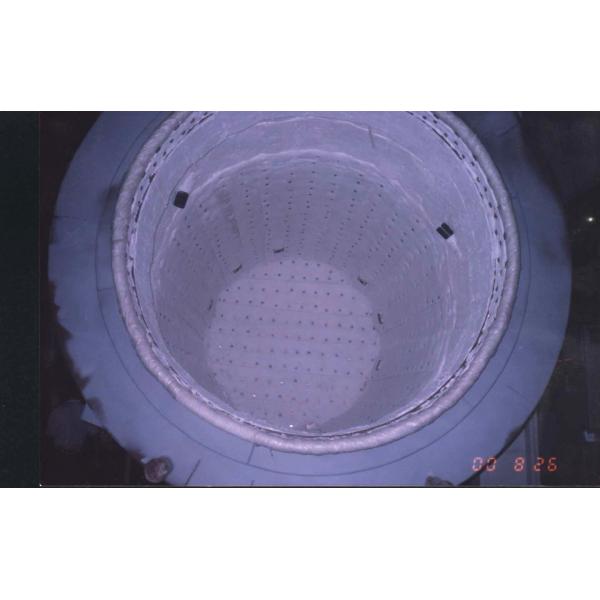

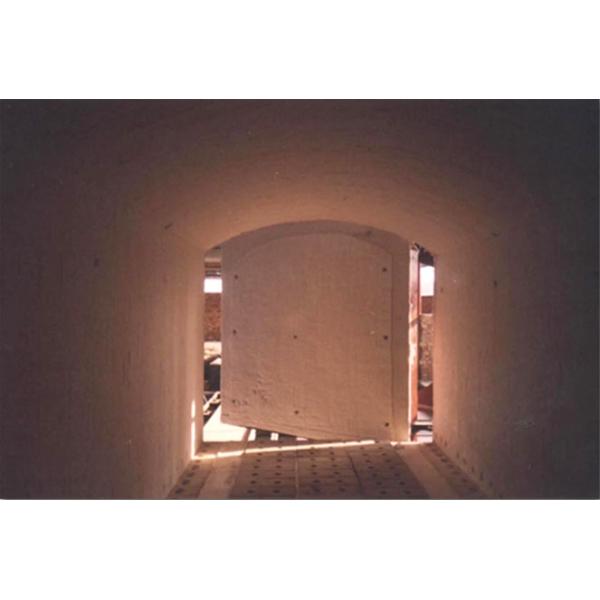

  • Filling materials of High-temperature Furnace, Heating Equipment, and wall lining.
  • Materials of the Ceramic Fiber Wet-formed products
  • Materials of the Spray, Castable and Coating Mixture.
  • The insulation filling material of rim angle and complicated interspaces.

Technical specification

Name Ceramic Fiber Blown Bulk Ceramic Fiber Spun Bulk
Classification Temperature 1050 1400 1260 1260 1400
Diameter(μm) 2～4 3～5

Shot Content(ф≥0.25mm)(％)

 ≤15 ≤15
AL2O3(％) ≥44 52～55 ≥45 ≥45 38～40
ZrO2(％) — 15~17
AL2O3＋SiO2(％) ≥96 ≥99 ≥97 ≥99 —
AL2O3＋SiO2＋ZrO2(％) — — — — ≥99
Fe2O3(％) ≤1.2 ≤0.2 ≤1.0 ≤0.2 ≤0.2
K2O+Na2O(％) ≤0.5 ≤0.2 ≤0.5 ≤0.2 ≤0.2
Package Plastic Bag Inside, Carton Box Outside
Quality Control System ISO9001-2000, ISO14001-1996

Advantages

  • Low heat storage and low thermal conductivity
  • Excellent chemical stability
  • Excellent thermal stability, hard to pulverization in the high-temperature circumstance
  • Without any bonding agent and of good resistance to corrosion matter
  • Excellent sound-absorb capability

Business Scope

The design, manufacture, installation, commissioning, and training of the hot-dip galvanizing lines.

And the improvement of old galvanizing plants.

Contact Us

If that product interest you, please contact us.

Meanwhile, please tell us the following information.

  • Materials to be galvanized

  • Biggest dimension or kettle size

  • Maximum weight

  • Maximum capacity per year

  • Power source

  • Fuel
