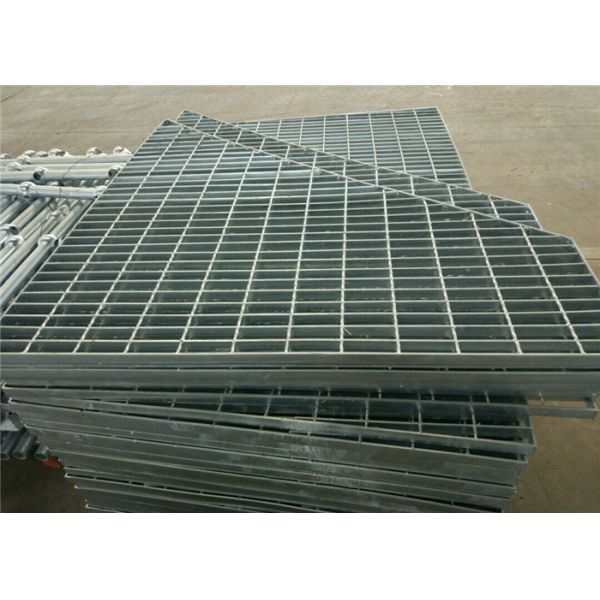

Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain
Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain
Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain
Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain
Specifications
Brand Name :
CHENG HE
Model Number :
Q195 Q235 Q275 Q345
Certification :
ISO9001,SGS
Place of Origin :
HE BEI
MOQ :
1KG
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20DAYS
Packaging Details :
PALLET
Material :
Q235 195 275 345
Finished :
gavlanized
Length :
0.1-6m
Width :
0.1-2m
Shape :
According to drawing
Height :
10-300mm
Description

Q235 Hot Gavlanized Steel Grating Bar Grating Stair Treads Trench Cover

Description:

Bar Grating can meet almost any load bearing or weight requirement and is the most durable grating for rugged applications. Bar grating is a top choice for strength, safety, and long-term cost.

Bar Grating consists of a series of bearing bars welded (or otherwise joined) at various intervals to perpendicular cross bars to form a load-bearing panel. Panels are manufactured by welding, locked by swaging, or press-locked processes. A typical panel configuration has bearing bars that are spaced 1-3/ 16 inches (center to center) with perpendicular cross bars spaced 4 inches apart (center to center). Other spacings are available to meet your loading and open area requirements.

Bar Grating is available in a wide selection of panel sizes; bar sizes and spacings; bar shapes; and material types. The most popular style is Welded Bar Grating.

No.
2 Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4 Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatmen Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1992, Japan:JIS

Benefits of Product Advantage

Bar grating is forge-welded, a system in which Grating was a pioneer. In this process the bearing bars and cross rods are permanently forged together by heat and pressure into a single unit construction, resulting in greater strength per pound than mechanical assembly methods. The twisted cross rods provide a non-slip walking surface. For applications where extremely slippery conditions prevail, Serrated bar grating offers a superior grip surface to the load bearing bars.

Technological Process

Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain

Product Picture

Q235 Hot Dipped Galvanized Steel Grating Stair Treads Trench Cover / Drain
