Perforated Welded Filter Screen Mesh Plain Weave Customized Material
Perforated Welded Filter Screen Mesh Plain Weave Customized Material
Perforated Welded Filter Screen Mesh Plain Weave Customized Material
Perforated Welded Filter Screen Mesh Plain Weave Customized Material
Perforated Welded Filter Screen Mesh Plain Weave Customized Material
Perforated Welded Filter Screen Mesh Plain Weave Customized Material
Specifications
Brand Name :
CHENG HE
Model Number :
Carbon steel / Stainless steel / Copper / Aluminium
Certification :
ISO9001
Place of Origin :
HE BEI
MOQ :
1KG
Payment Terms :
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100T/DAY
Delivery Time :
15-20DAYS
Packaging Details :
in waterproof paper in rolls. Custom packing available at request
Material :
Q235 195 275 345 SS304 316 304lL 316L
Name :
Expanded Mesh or Perforated mesh and Welded Wire Mesh Filter Screen Mesh
Filter Rating :
27%-56%
Type :
Filter Elements
Weave Style :
Straight / Plain Dutch / Twill Dutch
Diameter :
2mm 3mm 5mm 6mm 8mm 10mm
Description

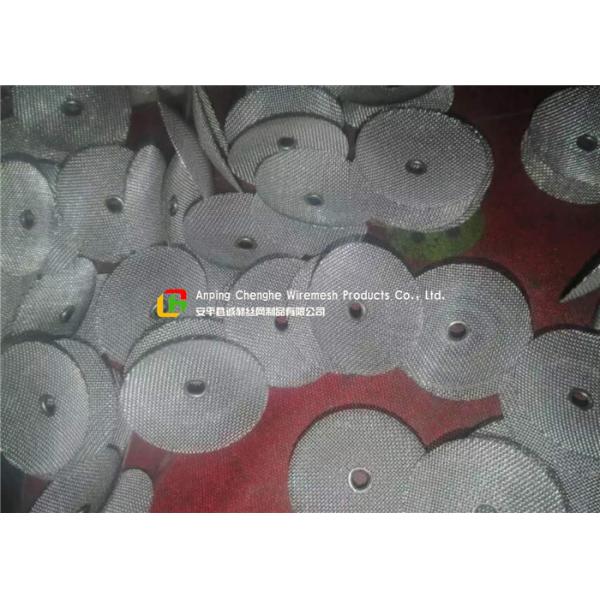

Expanded Mesh or Perforated mesh and Welded Wire Mesh Filter Screen Mesh

Description:

Filer Screen is made of high quality Carbon steel / Stainless steel / Copper / Aluminium wire or mesh.welded by advanced computer-controlled machines. It possesses features of excellent corrosion resistance, beautiful look, and longer work time.

Shape:Special Shanpe/ Annular / Roundness / Square / Oblong and your request

Application:

With the above-mentioned features, Filer Screen is a good choice for fishery industry, food drying, marine use, rodent proofing, cages for animals, and decoration, etc.

Features:

1. Chemical resistance.
2. Monofilament structure for thinner aperture.
3. Fine meshes for better filtering performance.
4. Better ductility and tenacity.
5. Can be used with the perforated or woven filter media.
6. Ideal for filtering hard impurities and high viscosity liquid.
7. Easy to clean and maintenance.
8. Economical and efficient.
9. Plastic frame and metal frames for choice

Quality Management:

Digital Controlled Machines & Well-Trained Staff:
Our Digital Controlled Welding Machines and our well-trained workers also ensure ourstainless Filer Screen can satisfy the top quality requirement from worldwide


Stainless Steel Wire Quality:

For Filer Screen , the material quality control is regarded as the vital importance. We have signed Long-term Buying Contract with Chinese best stainless steel wire manufacturer-Taiyuan Stainless Steel Wire Corp, this ensure our stainless steel wire are the top quality in China.

Details table:

wire mesh
Weave Style plain weave
Material 304, 316, 316L or customized
Weave style plain weave, twill weave and dutch weave
Type weave wire mesh, wire cloth, filter elements
Application screen, filters, woven wire mesh
Technique woven
Mesh Count 1x1-635x635mesh/inch
Thread Diameter 0.008-0.08inch (0.0203-2.03mm)
Mesh Opening 0.0008-0.92inch(0.0203-23.37mm)
Commonly Roll details 30m length X 1m width (length and width can be customized)

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Weave Styles
The weave of a mesh identifies how the wires are woven together when the mesh is produced.

Perforated Welded Filter Screen Mesh Plain Weave Customized Material

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Material;
iron,stainless steel ,copper ,aluminum or etc

Packaging Details

oil filter mesh screen / wire mesh
1.30-50m/roll in PVC bag
2.2-8 rolls per carton
3.waterproof bags outside
4.package belt strengthen

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Sending tracking number soon.

* Training how to use it
* Changing for new if dissatisfaction

pictures:

Perforated Welded Filter Screen Mesh Plain Weave Customized Material
