Special Shape Galvanized Compound Steel Grating for Petroleum Chemical Projects

Description:

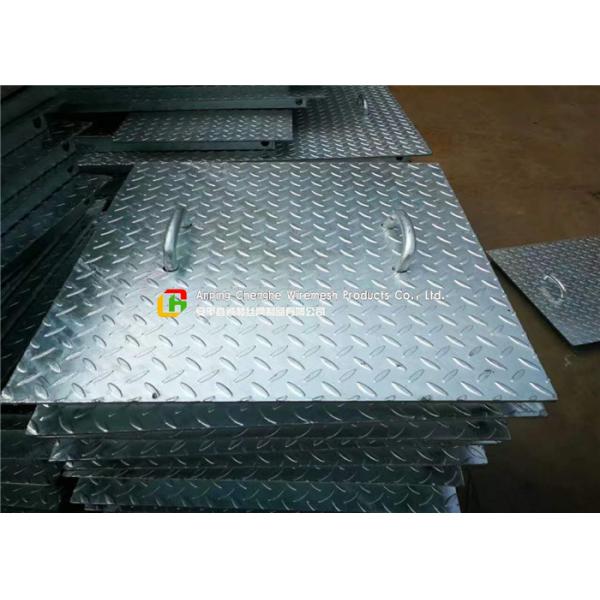

Compund steel grating is composed of checkered plate on sealed surface & steel grating with certain spanning capability.The checkered plates are normally in the thickness of 3mm, 4mm, 5mm or 6mm.Compund steel grating is formed of any aype of ateel grating and checkered plate in different thickness.The type of G253/30/100, G323/40/100 , G323/60/100 are generally used as base and the checkered plate with 3mm is used as sealing plate.As thermal stress may cause shape distortion after hot-dip galvanizing treatment especially choosing large spacing grating.so special attention should be paid whrn choosing grating type.

Special specifications can be produced by the customer's requirements.

Compound Steel Grating is composed of a span bearing capacity of the steel frame and the sealing surface of the pattern plate of a product.In the steel grid plate side or bottom weld steel net made of complex network, can prevent small drop, in the barn, restaurant, warehouse can prevent the mice or other animals.

Grating Standardizations:

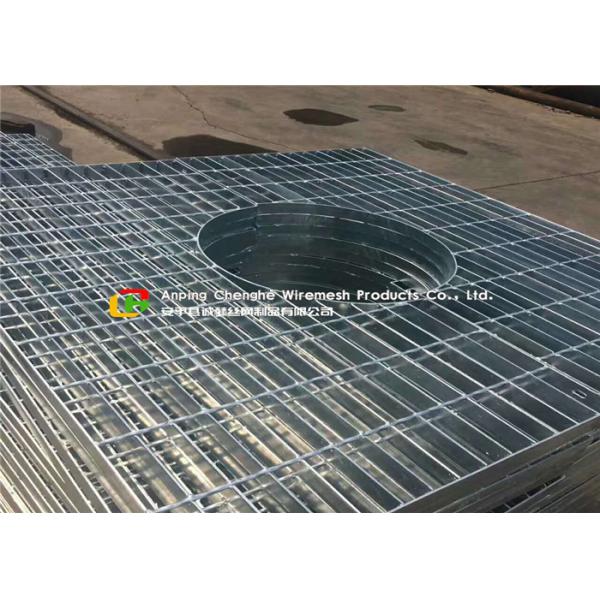

Steel grating with special shapes and for special use

We continuously improve product quality and production scale. The series of steel grating contain welded steel grating, pressure lock steel grating, plug grating, Steel grating ceiling, gully and well cover, compound steel grating, stair tread, platform steel grating, tree pool cover, galvanized steel grating, heavy duty steel grating. They are widely used in petroleum, chemical, ports, power, transportation, papermaking, foodstuff, medicine, steel, municipal, real estate, manufacturing, etc.
Our factory strives for the survival by the quality of the management idea, has a team which is engaged in production and manufacturing specialists for many years. Product quality can meet all the Chinese YB4001-1991, YB/T4001-1998 standards, and British BS4592-1-1995 and American ANSI/NAAMM (MBG531-88) standard. At the same time, we also can design according to customer requirements of special steel grating plate products.

-We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

-OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

-Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.

Installation Method:

- Directly weld the steel grating plate or footboard in the support steel structure, and the welding place brushes zinc powder paint.

-Uses special-purpose steel grating installment clamp, which does not destroy galvanization level, disassembles and assembles conveniently. Each set of installation clamp includes up-clamp, down-clamp, head bolt and nut.

- According to the need, provide stainless steel installment clamp or bold jointing and so on tight method.

- Generally the gap between steel grating plate is 100mm.

- The steel grating plate which approaches the vibration should weld or add rubber packing.
